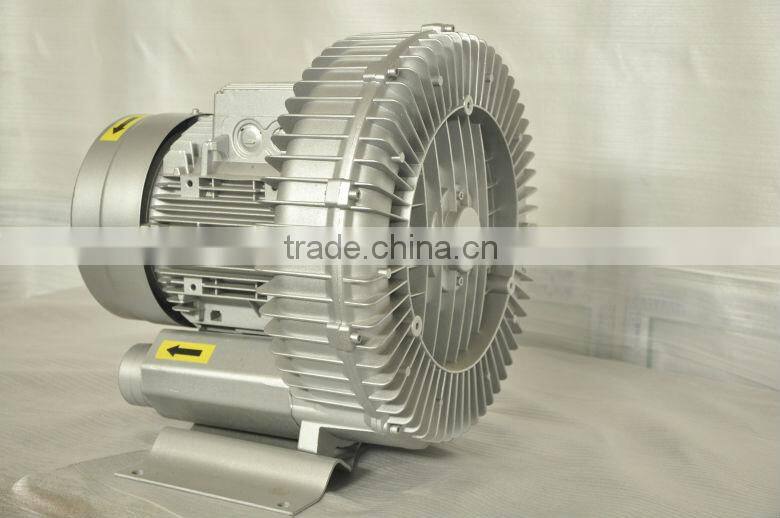

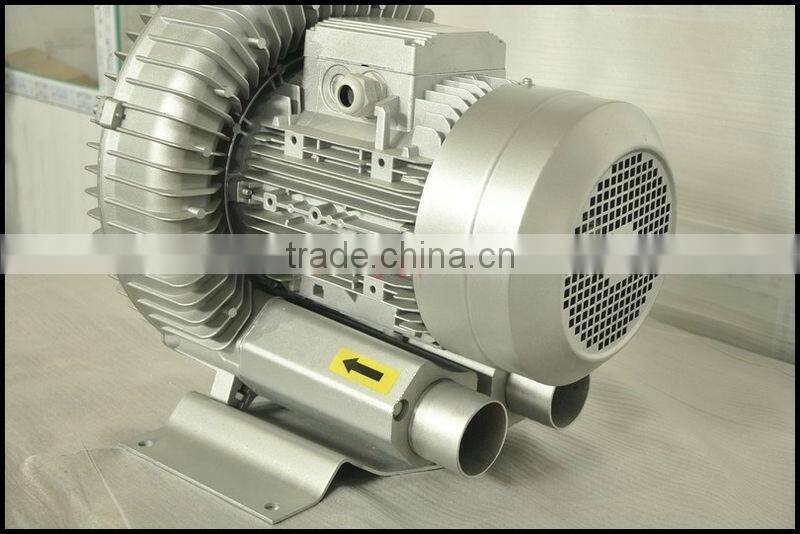

Single Period of Vacuum Pump JQT-250-C Blower
- QINGDAO
- T/T Credit Card
You May Like
-
JQT-550-C Motor Blower Replace Liquid Ring Vacuum Pump
-
1.1kw Air Blower 3 Phases Vacuum Pump Machine for Swimming Pool
-
3 Phase Pump Best Air Blower Price Machine for Aeration Tank
-
JQT-2200S Double Stage Hot Industrail Air Blower
-
Hot Products 3KW Air Blower for Fish Pond and Vacuum Pump
-
Hot Seller JQT 7.5 KW Electric Air Ring Blower and Vacuum Pump
Product Details
| Place of Origin | Shandong, China | Brand Name | Golden Bridge | |
| Model Number | JQT-250-C vacuum pump | Theory | Vacuum Pump | |
| Structure | Other, Vortex Gas Pump | Usage | Air Pump | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, electricity vacuum pump | Pressure | High Pressure | |
| Application | Other, air exhaust vacuum pump |
Product Description
JQT-5500 Industrial whirlpool vacuum pumps, centrifugal pumps, high quality low price blower
1:non-contact
2:reliable
3:high pressure
4:stainless
5:Adapt to the environment
vacuum pump
| Model | rated supply | rated power | MAX Air Pressure | vacuum | maximum discharge | weight | Overall dimensions |
| JQT-090-C | 220/380V/50Hz | 90W | 7.5kPa | -5kPa | 18m3/h | 4.7kg | 248x198x224mm |
| JQT-120-C | 220/380V/50Hz | 120W | 7.5kPa | -5kPa | 21m3/h | 4.7kg | 248x198x224mm |
| JQT-180-C | 220/380V/50Hz | 180W | 9kPa | -6.5kPa | 26m3/h | 5.8kg | 248x198x224mm |
| JQT-250-C | 220/380V/50Hz | 250W | 12kPa | -10kPa | 35m3/h | 9kg | 263x228x248mm |
| JQT-370-C | 220/380V/50Hz | 370W | 12kPa | -11kPa | 64m3/h | 12kg | 279x240x266mm |
| JQT-550-C | 220/380V/50Hz | 550W | 15kPa | -12kPa | 95m3/h | 13kg | 294x288x315mm |
| JQT-750-C | 220/380V/50Hz | 750W | 16kPa | -14kPa | 110m3/h | 14kg | 294x288x315mm |
| JQT-1100-C | 220/380V/50Hz | 1100W | 22kPa | -18kPa | 165m3/h | 20kg | 332x328x358mm |
| JQT-1500-C | 220/380V/50Hz | 1500W | 24kPa | -18kPa | 210m3/h | 32kg | 392x362x372mm |
| JQT-2200-C | 220/380V/50Hz | 2200W | 33kPa | -25kPa | 260m3/h | 35kg | 400x350x415mm |
| JQT-3000-C | 380V/50Hz | 3000W | 35kPa | -26kPa | 280m3/h | 40kg | 450x392x404mm |
| JQT-4000-C | 380V/50Hz | 4000W | 38kPa | -26kPa | 350m3/h | 50kg | 472x415x453mm |
| JQT-5500-C | 380V/50Hz | 5500W | 45kPa | -28kPa | 450m3/h | 72kg | 498x460x495mm |
| JQT-7500-C | 380V/50Hz | 7500W | 55kPa | -30kPa | 470m3/h | 80kg | 498x460x495mm |
vacuum pump
Vacuum pump is widely used in plastic machinery, pesticide chemical industry, dye chemical industry, brick machinery, cryogenic equipment, paper making machinery, pharmaceutical and chemical industry, food machinery, industrial furnace, electronic industry, vacuum equipment, chemical fertilizer, metallurgy, petroleum, mine, foundation treatment, etc.

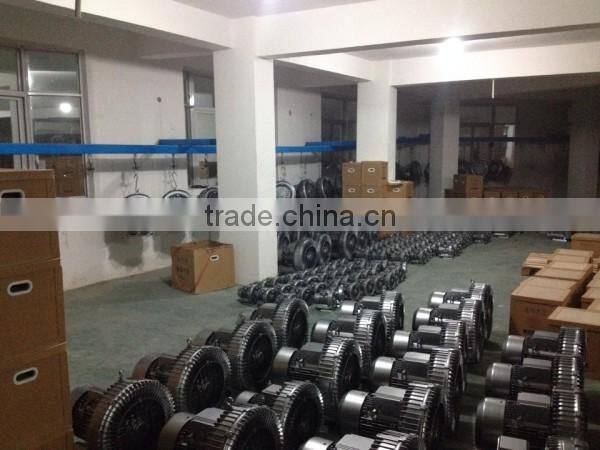

So far, our company has imported processing centers,including CNC milling machines, CNC cutting machines and other advanced mechanical processing facilities.
Vortex pump in addition to motor rotor two bearing outside, other parts have no direct contact friction. This pump bearing in motor stand in the middle of the impeller and the pump body, this kind of pump usually don't need to add grease
vacuum pump
