Cheap Endoscope Camera With ce

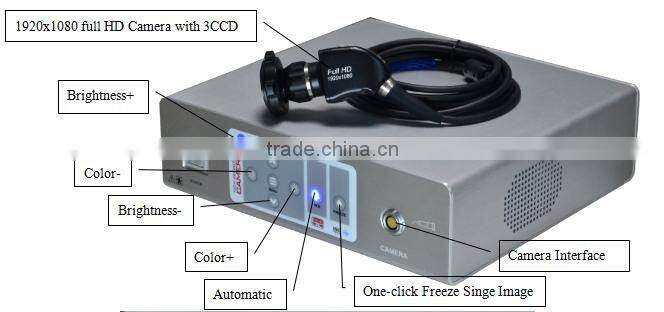

                            3CCD HD Endoscope Camera

Primary Advantages

1. High definition for clear images

2. Different video output available

3. Waterproof camera head

4. Apply for Laparoscopy, Hysteroscopy and such large surgeries

Technical Parameters

Optical Coupler: default F20

If necessary you can choose one from F18/20/22/24/28/32/35, or ZOOM 32~35.

Produce structure

Mainly made of camera control unit, waterproof camera, and optical coupler.

Application scope:

Be used in hospital for clinical endoscopic surgery, to amplify video or gain images during inside-body surgery.

otoscope, nasoscope, laryngoscope, arthroscope, hysteroscope, laparoscope, vapour-resectoscope, etc.

Functional Characteristics:

1.  The camera is equipped with 1/3 inch SONY CCD image chip and DSP (Digital Signal Processor), and the horizontal resolution up to 580 TV line, supplying clear image and true colour restoration.
2.  OSRAM light source is used in this device, having the latest high-energy, low-power, high luminous flux, quickly brightened, uniform illumination, and wide angle. It’s useful life up to thirty thousand hours, energy-conserving and environment-protective. With 1~10 continuously adjustable illumination levels, you can observe current brightness level through the LCD screen.
3.  Compared with conventional xenon lamp, this integrative machine haves ultra-long useful life and ultra-low power consumption. It became more safe without ultraviolet rays. Real-time monitoring of its light source operating temperature is adopted in order to ensure it’s useful life, simultaneously you can read data and control the product running state through the LCD screen.

Working Principle

This equipment be connected to endoscope through optical coupler, and then accurately shine light at the lesion. The lesionshined by endoscope, and real-time tracing will be recorded then transmitted as video signals by CCD camera to image monitor or monitor or computer workstation for picture processing.
