Wireless Outdoor Tri-tech Passive Infrared Detectors

FOB Price

Negotiable / Set

50 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Wale
Model Number	WL-838WF		Usage	Other, pir Detector

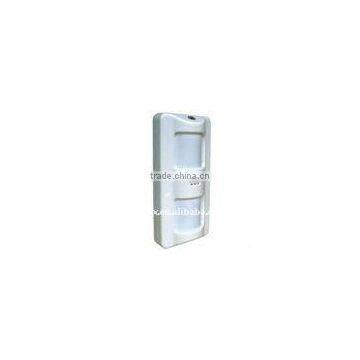

Wireless outdoor passive infrared detectors

Model: WL-838WF

Function:

1.IR dual-tech+MW+Energy analysis.

2.Anti-pet misstatement below 30kg, can prevent the misstatement of dogs, cats and other animals

3.Has microprocessor controller, Adjustable microwave scope.

4.Real temperature compensation technology

5.Adjustable dual polarity pulse count .

6.Resistance to white light & Rf interference.(30V/m-1GHz)

7 Super anti-false alarm technology

Technical Parameter:

Model	WL-838WF
Probe type	IR dual-tech+MW+Energy analysis
Detection range	18m
Working voltage	9-16VDC
Working current	35mA
Alarm contacts	NC,12VDC,50mA max
Tamper contacts	NC,12VDC,100mA max
Alarm time	2.2s
Preparation time	2min
RFI characteristics	30V/m 10MHz ~ 1GHz
Working temperature	-10~+50 centigrade;
Store temperature	-20~+60 centigrade;
Dimension	1286440mm
