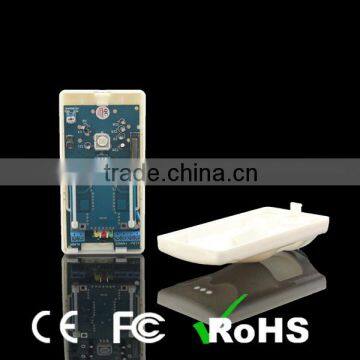

wired PIR Microwave Detector

FOB Price

US$ 12 - 15 / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	WALE
Model Number	WL-832F		Usage	Auto

PIR Microwave Detector

Features:

1.Microwave + PIR + Energy analysis tri-tech detector

2.Anti-pet misstatement below 30kg, can prevent the misstatement of dogs, cats and other animals.

3.Has microprocessor controller.

4.Low power consumption, real temperature compensation technology.

5.Adjustable microwave scope.

6.Adjustable dual polarity pulse count .

7.Has under-viewed window, no blind spots.

8.Resistance to light interference.

9.Resistance to Rf interference.(30V/m-1GHz)

10.Special resistance to fluorescent interference.

11.Memory with the environment and the C-output model

Technical Parameter:

Model	WL-832F
Probe type	IR dual-tech+MW+Energy analysis
Detection range	15m
Working voltage	9-16VDC
Working current	25mA
Alarm contacts	NC,12VDC,50mA max
Tamper contacts	NC,12VDC,100mA max
Alarm time	2.2s
Preparation time	2min
RFI characteristics	30V/m 10MHz ~ 1GHz
Working temperature	-10~+50 centigrade;
Store temperature	-20~+60 centigrade;
Dimension	1286440mm
