Ma’anshan Baiyun Environment Protection Equipment Co.,Ltd which is located in the Chinese Steel City with the beautiful scenery---Ma’anshan City, specialize in various permanent magnet and magnetic equipment, including the trading of iron ore and the design and research of blast furnace palletizing production.

  Introduction of Wet High Intensity Magnetic Separator  Machine---CTB seies

1)Coarse separation after first ball mill. The intensity is about 2000-2400GS,rejecting tailings to enhance recycling and reduce the cost of second ball mill

2)Concentration after second ball mill. The intensity is about 1400-1600GS,rejecting low grade minerals to enhance the grade again.

3)Magnetic separation of iron sand from sea. The intensity is about 1000GS,rejecting the impurity to enhance the grade.

4)The clearance of ferrous minerals before strong magnetic working to prevent the magnetic block

5)recovery of iron ore in coal dressing plant.

Wet High Intensity Magnetic Separator  Machine Features:

1.Simple structure and easy to maintain

 2.Short magnetic circuit

 3.Little magnetic flux leakage

 4.High magnetic intensity, low energy consumption

 5.Fine beneficiating result

 6.The drum is made from thick stainless steel for long service life.

 Working principle of Wet High Intensity Magnetic Separator Machine:

When the raw materials flow into the tank body of the Wet High Intensity Magnetic Separator , firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. This is the first separation. In the second step, the flushing water below flush the raw materials back for the second separation. This time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fall to the ore concentrate box under gravity. Also, the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe for tailings.

 Applications of   Wet High Intensity Magnetic Separator  Machine:

1.Used for pre-concentration in the magnetic separation mill, remove the waste stones out of the ore and restore grade.

 2.Used for stope to recover iron ore from the tailings and increase the utilization rate of ore resources.

 3.Used for the iron and steel factories. Handle the  discarded steel slag and mill scales to recover the iron.

 4.Used for the garbage handling. Recover the useful metals and improve the quality of environment.

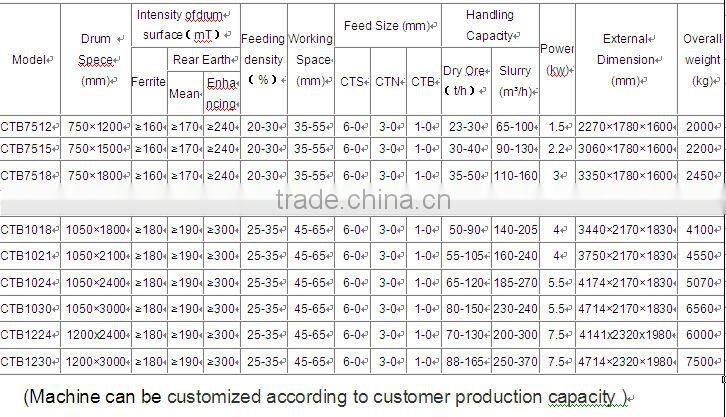

 Technical Data of  Wet High Intensity Magnetic Separator  Machine:
