led rgb controller with 20 key

FOB Price

US$ 1 - 10 / Piece

5 Pieces(Min. Order)

Port shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	ORNATE
Model Number	-RF20B(SJ)-3CH	Type	Remote Control
Max. Load Power	288	Voltage	Other, 5v,12v,24v

Product Description

Specifications

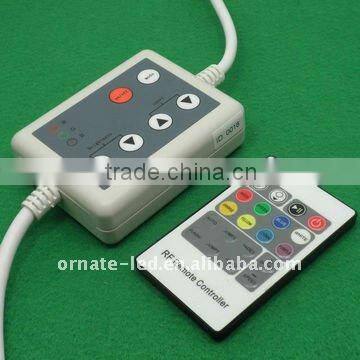

RGB RF 20-key Controller
1.length setup funtion
2.Power-fail memory
3.adjust all kinds of dynamic lighting changes

Technical parameters

working temperature: -20-60°C

supply voltage: DC5V, 12V ,18V, 24V optional(specify the required voltage on orders)

output: 3 channels

connection mode: common anode

net weight: 140g

gross weight: 175g

static power consumption: 1W

output current: 4A( each channel )

output power: 5V 60W, 12V:144W, 24V:288W

Direction for Use

Automatically complete change after turning on the power,need not any setting; Please ensure short circuit can not occur between connecting wire before you turn on the power.

Button	Button description	remarks
	ON/OFF	you could turn on or turn off the output of controller
	Play/Stop	Play or stop led changing, easy to observe led static effect
	Brightness increase	the brightness series will add once when you press it
	Brightness decrease	The brightness series will reduce once when you press it
RED	Static red	Brightness is adjustable,Speed is unadjustable.
GREEN	Static Green
BLUE	Static Blue
WHITE	Static white
ORANGE	Static Orange
YELLOW	Static Yellow
CYAN	Static cyan
PURPLE	Static Pink
AUTO	Automation	Moving all the modles automationly
JUMP3	3 Color step change	Speed and brightness are adjustable
FADE3	3 Color fade change	Speed is adjustable,brightness is unadjustable
SPEED+	Speed increase	The speed will add once when you press it.
FLASH	Seven colors flash frequency	Speed and brightness are adjustable
JUMP7	7 Color step change	Speed and brightness are adjustable
FADE7	7 Color fade change	Speed is adjustable,brightness is unadjustable
SPEED-	Speed decrease	The speed series will reduce once when you press it
