AT5210 Multi-Channel Battery Tester with TFT True Color LCD Display

AT5210 is brand-new design Multi-channel Battery Tester with high precision and high stability. It can quickly complete 10 channels battery voltage and internal resistance sorting;It adopts high-performance 32dgt ARM micro processor to control. 3.5 inches TFT true color LCD, Chinese and English display and it is easy to operate. Multi-channel battery tester is widely applied to test contact resistance, battery voltage and battery internal resistance sorting. Brand-new improved sampling circuit can measure any kind of battery. Plus instrument’s professional sorting function and sorting beep setup, applied to automation sorting system to complete full-automatic production line test.

SPECIFICATIONS

AT5210 Multi-channel Battery Tester

Parameters

10 channels AC Resistance, 10 channels DC Voltage

Accuracy

Resistance :0.2%, Voltage :0.01%

Measuring Range

Resistance:0.01mΩ~3.000Ω

Voltage:0.00001V~60.000VDC

Signal Source

AC 1kHz

measurement current:<150mA

Range

Automatic and manual with 3 ranges

Speed

Fast: 10 channels/1s,Medium: 10 channels/2s,Slow: 10 channels/3s

Result Display

Show, ABS, %, q, sorting results

Display Max

Resistance:3,0000

Voltage:60,000

Adjustment

Short-circuit reset for all range

Comparator

RHI/RNG/RLO output, VHI/VNG/VLO   output absolute value tolerance,±TOL sorting, percentage tolerance TOL sorting, sequence sorting

Trigger

Internal, manual, external and remote

Interface

RS232C, Handler interface (PLC)

Others

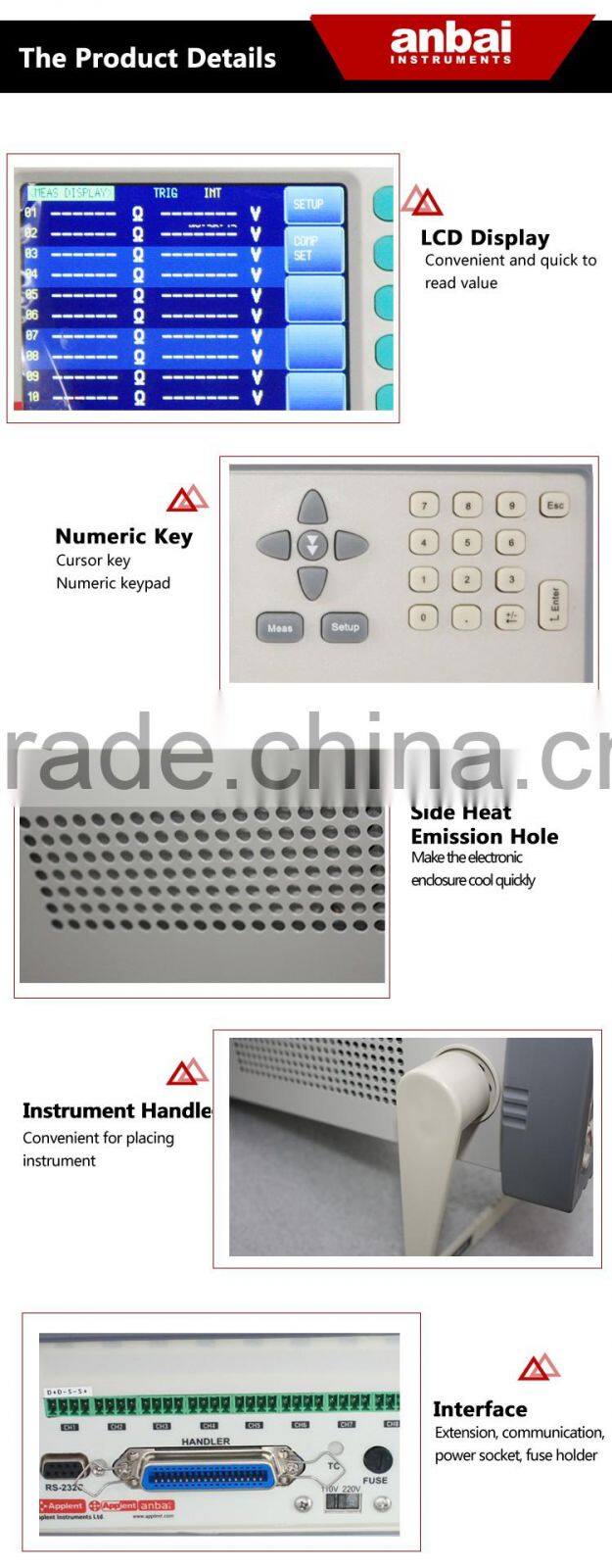

Detection of damage test wire, TFT true color LCD display,

keypad lock and data hold function, internal memory and U-disk record

Power Supply

Voltage: 195V AC - 245V AC  Frequency: 50Hz   Power: Max 15VA

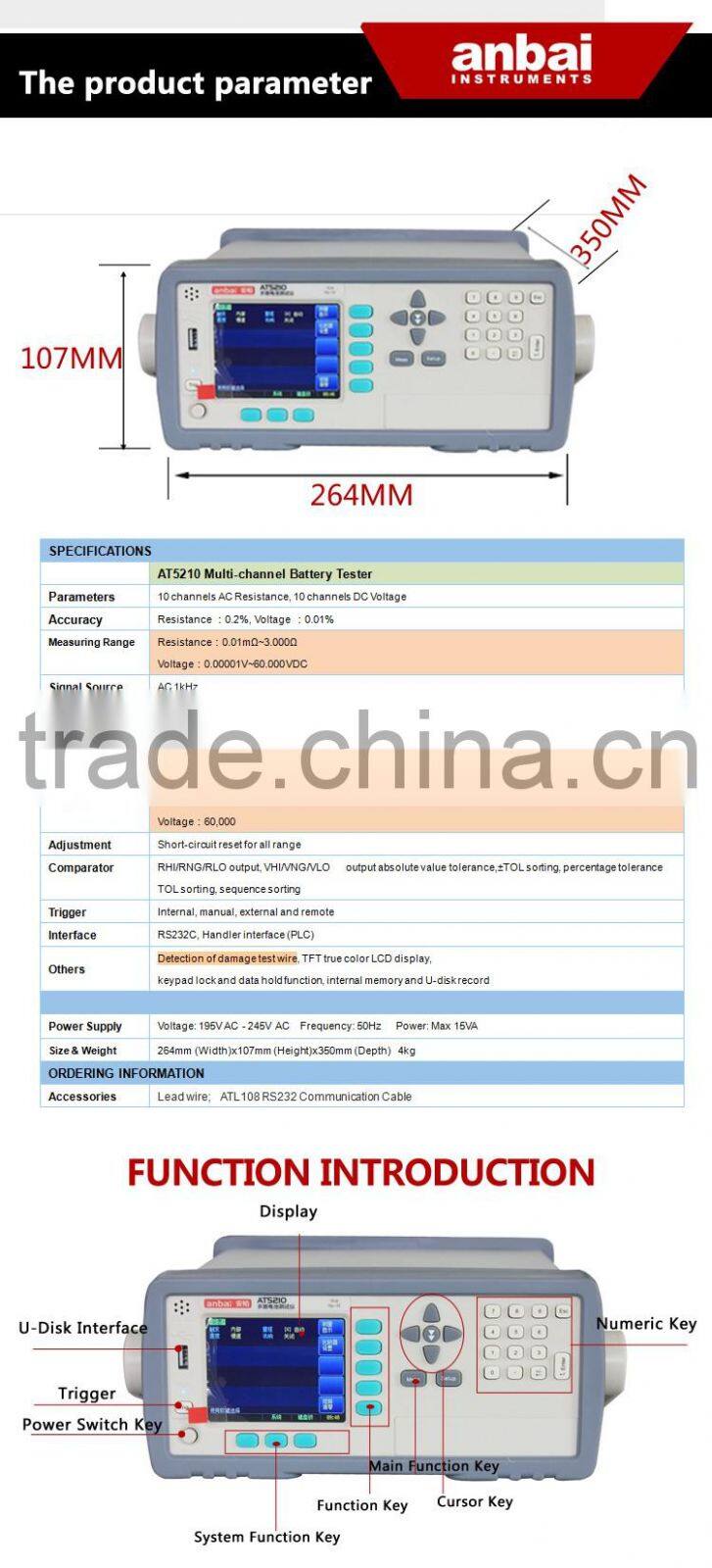

Size & Weight

264mm (Width)x107mm (Height)x350mm (Depth)  4kg

ORDERING INFORMATION

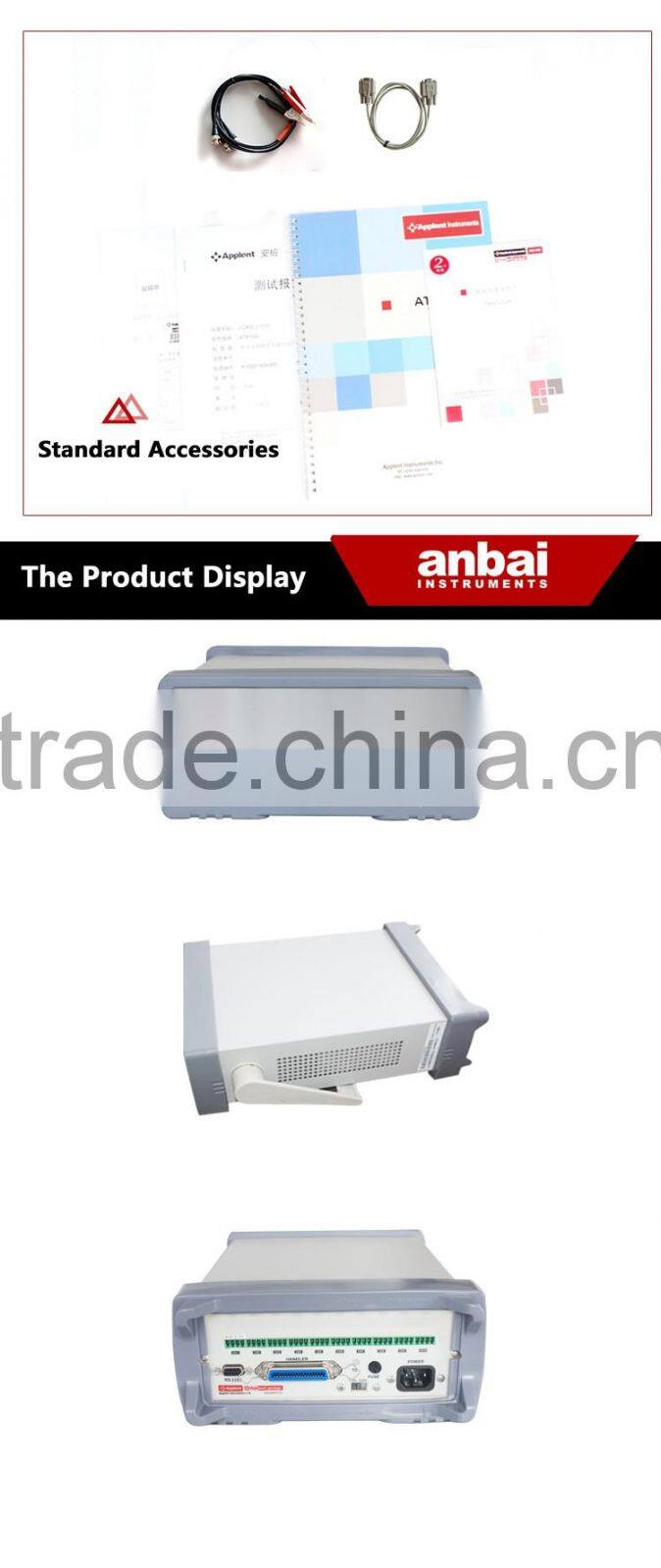

Accessories

Lead wire;  ATL108 RS232 Communication Cable
