B2AV 1mp/1.3mp/2mp IP Cameras, High Definition 20M IR 2.8-12mm Cctv Camera

FOB Price

US$ 6.6 - 37.93 / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Aoshidi
Model Number	B2IV IP Series	Type	IP Camera
Style	Bullet Camera	Sensor	CMOS
Technology	Infrared	Special Features	Waterproof / Weatherproof

Product Description

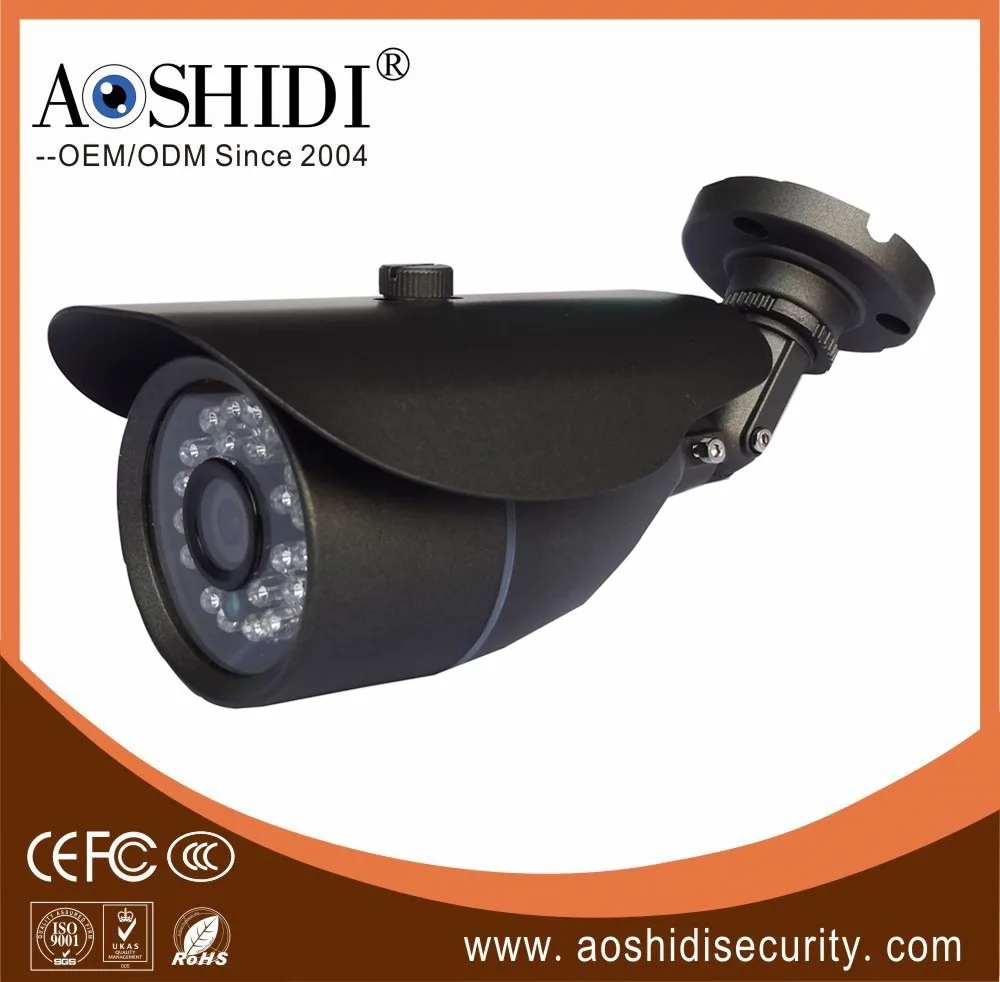

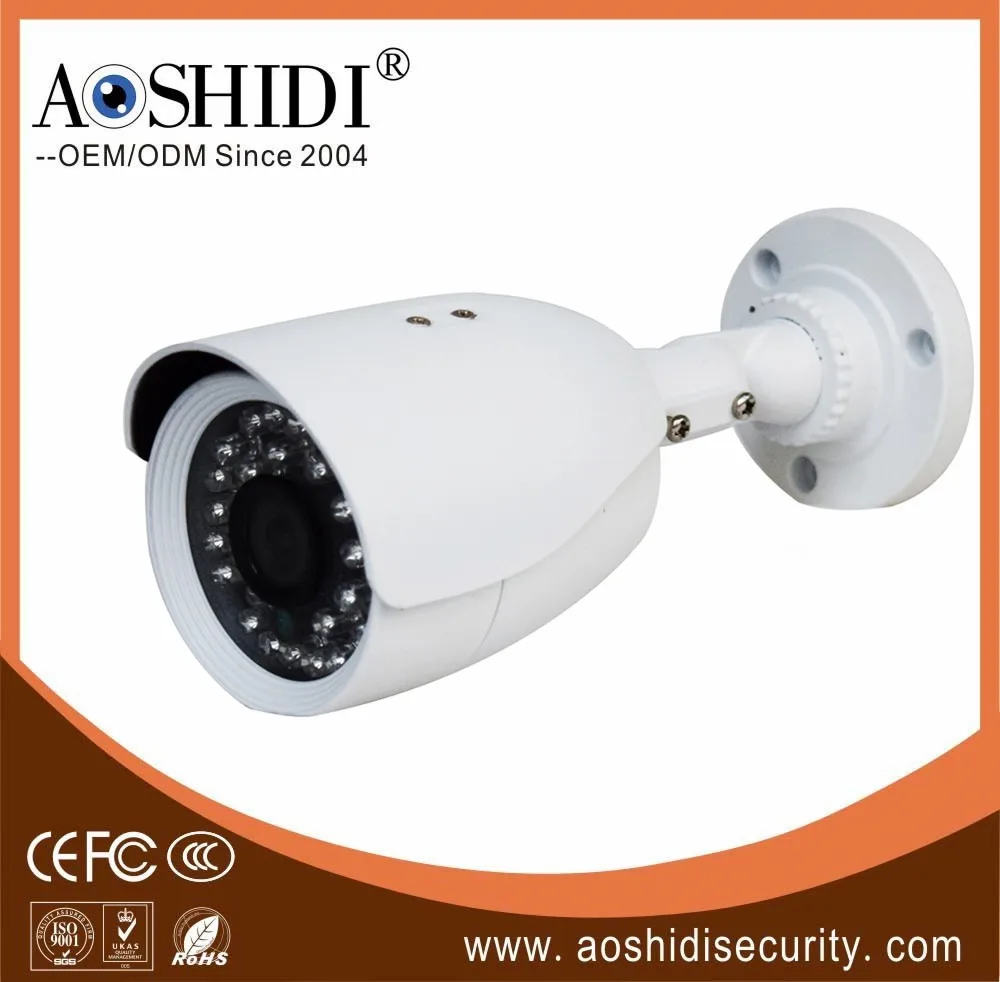

B2AV 1mp/1.3mp/2mp IP cameras, High Definition 20M IR 2.8-12mm cctv camera

Features IP Camera:

•1MP /1.3MP/2MP/3MP/4MP/5MP HD Resolution optional
•Support Dual Stream
•Support P2P Cloud Service;
•Support Motion Detection and Alarm Notification on mobile phone
•Support Onvif, compatible with Blue Iris
•Mobile monitor: Support iPhone, Windows Mobile, BlackBerry, Symbian,Android
•Support IE, Google, Firefox Browser
•Support DHCP,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAILl,IP Access,Alarm
•Provide SDK for further development
•2MP/3MP lens
•Material:Metal

.Warranty: 3 years warranty
.Certificates:CE,ROHS,FCC

Model NO.	B2AV50-IP	B2AV40-IP	B2AV18-IP	B2AV96-IP	B2AV72-IP
Camera
Image Sensor	1/1.8" SONY IMX178	1/3" OV4689	1/2.8" SONY IMX322	1/3" Aptina AR0130	1/4" Omnivision OV9712
Main processor	Hi3516A	Hi3516D	HI3516C	HI3518E	HI3518E
Resolution	5MP	4MP	1080P	960P	720P
Effective Pixels	2592(H)*1944(V)	2592(H)*1520(V)	1920(H)*1080(V)	1280(H)*960(V)	1280(H)*720(V)
TV System	PAL/NTSC
Electronic Shutter Time	Auto: PAL 1/1-1/10000Sec; NTSC 1/1-1/10000Sec
Sync System	Internal
Usable Illumination	0.001Lux	0.001Lux	0.01Lux	0.01Lux	0.1Lux
S/N Ratio	≥52dB
Scanning System	Progressive
Video Output	Network
Lens
Focus Length	Manual Varifocal 2.8-12mm
Pixels	3M Pixel	3M Pixel	3M Pixels	2M Pixels	2M Pixels
Night Vision	5MP	4MP	1080P	960P	720P
Infrared LED	￠5X24PCS
Infrared Distance	20M
IR Status	Under 10 Lux By CDS
IR Power On	CDS Auto Control
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS
ONVIF	Support ONVIF 2.4
P2P	YES, Support QR Code
POE	Optional, Support IEEE 802.3af
WIFI	N/A
Video Delay	0.3S (Within the Lan)
Main Stream	2592*1944@30fps	2592*1520@15fps	1920*1080@30fps	1280*960@30fps	1280*720@25fps
Sub Stream	1280*720@30fps	704576@30fps,352288@30fps	1920(H)*1080(V)	1280(H)*960(V)	1280(H)*720(V)
IE Brower	IE8-11, Google Chrome, Firefox
Smart Phone	iPhone, iPad, Android, Android Pad
Camera Features	Internal
Day/Night	Color/ B&W (IR-CUT )
Compression	H.264/H.264,Support record AVI format.		H.264/JPEG,Support record AVI format.
Image Config	Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, BLC, FLK(Flicker Control)
Motion Detection	Support
Privacy Masking	3 Rectangular Zone
WDR	NO, support digital	NO, support digital	NO, support digital	NO	NO
Recording Mode	NVR/NAS/CMS/Web
Language	Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian
General
Housing	Weatherproof,P66
Anti-cut Bracket	Yes,3-Axis
IR Cut Filter	YES
Operation Temperature	-20℃ ~ +50℃ RH95% Max
Storage Temperature	-30℃ ~ +60℃ RH95% Max
Power Source	DC12V±10%, 1000mA
Dimension	2206055mm (Color Box: 200107101mm)
Weight	0.49kgs
