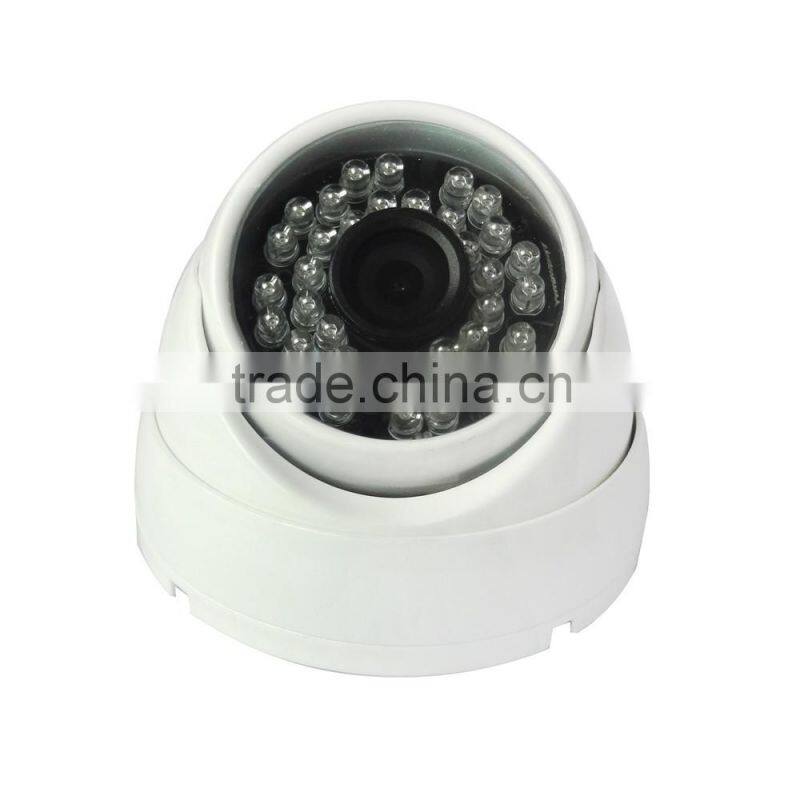

Shenzhen Wholesale CCD Color Sensor CCTV Camera, 15m Night Vision720P HDCVI Dome Camera

Model NO.

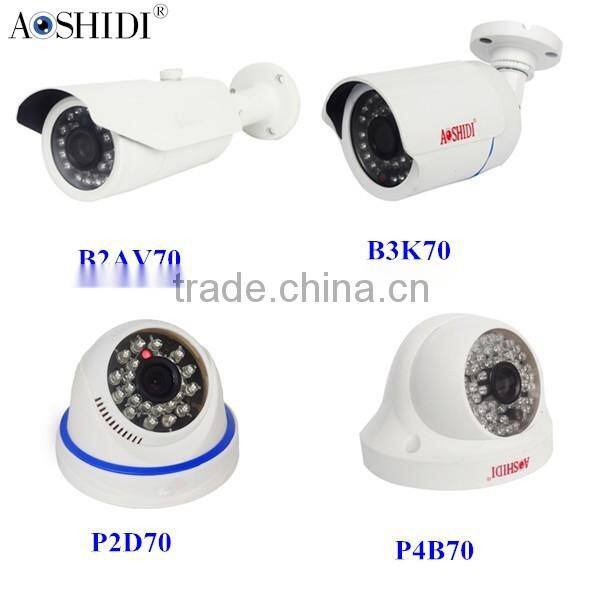

B2AV70 -AHD

B2AV80 -AHD

B2AV100 -AHD

Camera

Image Sensor

1/4" Omnivison OV9712

1/3" Aptina AR0130

1/2.8" Sony IMX322

DSP

NVP2431H

NVP2431H

NVP2431H

Image Resolution

720P/960H

960P/960H

1080P/960H

Effective Pixels

1.0MP, 1280x720

1.4MP, 1280x960

2MP, 1920*1080

Signal System

720P@AHD

960P@AHD

1080P@AHD

Electronic Shutter

1/25s~1/50,000s , 1/30s~1/60,000s

Sync System

Internal

Usable Illumination

0.01Lux

0.001Lux

0.001Lux

S/N Ratio

≥50dB

Scanning System

Progressive Scan

Video Output Mode

AHD/CVBS (960H) (BNC)

AHD/CVBS (960H) (BNC)

AHD/CVBS (960H) (BNC)

Lens

Focus Length

3.6mm Fixed Lens(2.8mm/6mm optional)

Focus Control

Fixed

Pixels

2M Pixels

3M Pixels

Auto Iris Support

NO

Night Vision

Infrared LED

5X48PCS

Infrared Distance

35M

IR Status

Under 10 Lux by CDS

IR Power On

CDS Auto Control

Camera Features

Day/Night

Auto (ICR) / Color / B&W

Auto (ICR) / Color / B&W

Auto (ICR) / Color / B&W

OSD Menu Language

EN, CN, DE, FRA, IT, ES, PL, RU, PT, NL, TR

EN, CN, DE, FRA, IT, ES PL, RU, PT, NL, TR

EN, CN, DE, FRA, IT, ES PL, RU, PT, NL, TR

White Balance

Auto/Manual

Auto/Manual

Auto/Manual

Gain Control

Auto

Auto

Auto

Noise Reduction

3D NR

3D NR

3D NR

Picture Adjustment

Yes

Yes

Yes

OSD Support

Yes

Yes

Yes

General

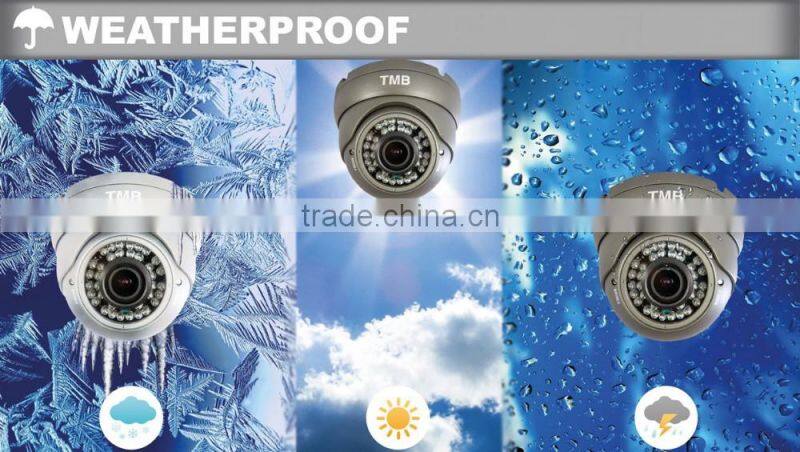

Weatherproof Housing

Weatherproof,P66

Anti-cut Bracket

YES

Dual Voltage

NO

IR Cut Filter

YES

Heater

NO

Operation Temperature

-10℃ ~ +50℃ RH95% Max

Storage Temperature

-20℃ ~ +60℃ RH95% Max

Power Source

DC12V±10%, 500mA
