Home > Products > CCTV Kits > Security Camera 2016 1.3 Megapixel 960P Top 10 AHD Portable Camera Kit

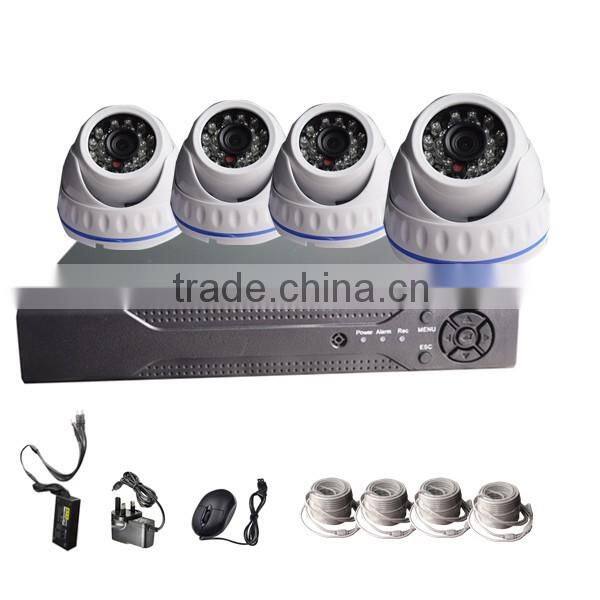

Security Camera 2016 1.3 Megapixel 960P Top 10 AHD Portable Camera Kit

FOB Price

US$ 84 - 89 / Set

1 Set(Min. Order)

Port Shenzhen or Hongkong
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Aoshidi
Model Number	AD-AK4-9602MD	Type	Analog Camera
Style	Dome Camera	Sensor	Other, CMOS, 1/4" HD 1MP CMOS Sensor
Technology	NetWork	Special Features	Waterproof / Weatherproof

Product Description

Security Camera 2016 1.3 Megapixel 960P top 10 AHD portable camera kit

Features AHD Camera:
.1MP Resolution
.Reliable Long-Distance Transmission (Up to 500 meters)
.Real time HD Transmission Technology
.Composite Signals In 1 Coaxial Cable For Simple Installation
.Anti-interference Capability
.Cost Advantage (More cheaper than CVI & SDI solution)
.Good Compatibility & Different Specifications All In One AHD DVR
.Built-in OSD menu button (Optional)
.2Megapixel/3Megapixel HD lens
.Material:Metal
.Warranty: 3 years warranty
.Certificates:CE,ROHS,FCC

Model NO.		AD-AK4-9602MD
Camera		DVR
Image Sensor	1/4" HD 1MP CMOS Sensor	System
DSP	NVP2431H	Main processor	HI3520D
Image Resolution	960P/960H	Video
Effective Pixels	1.3MP, 1280x960	Video compression	H.264(High Profile);JPEG snapshot
Signal System	960P@AHD	Multi-mode input
Electronic Shutter	1/25s~1/50,000s , 1/30s~1/60,000s	Encode capacity	4*720P
Sync System	Internal	Decode capacity	1*720P
Usable Illumination	0.01Lux	Audio
S/N Ratio	≥50dB	Audio compression	G.711A
Scanning System	Progressive Scan	Intercom	support
Video Output Mode	AHD/CVBS (960H) (BNC)	Record & playback
Lens		Record mode	manual>alarm>motion
Focus Length	3.6mm Fixed Lens(2.8mm/6mm	Playback	4ch
Focus Control	Fixed	Storage & backup
Pixels	1.3M Pixels	Space occupation	960H: 12~20G/ day*ch
Auto Iris Support	NO		720P: 20G~30G/ day*ch
Night Vision			Audio: 691.2M/ day*channel
Infrared LED	￠5X24PCS	Backup mode	Network, U-disk, USB burner, SATA burner
Infrared Distance	20M	Interface
IR Status	Under 10 Lux by CDS	Video input	4ch BNC
IR Power On	CDS Auto Control	Video output	1ch VGA,1ch HDMI
Camera Features		Audio input	4ch RCA

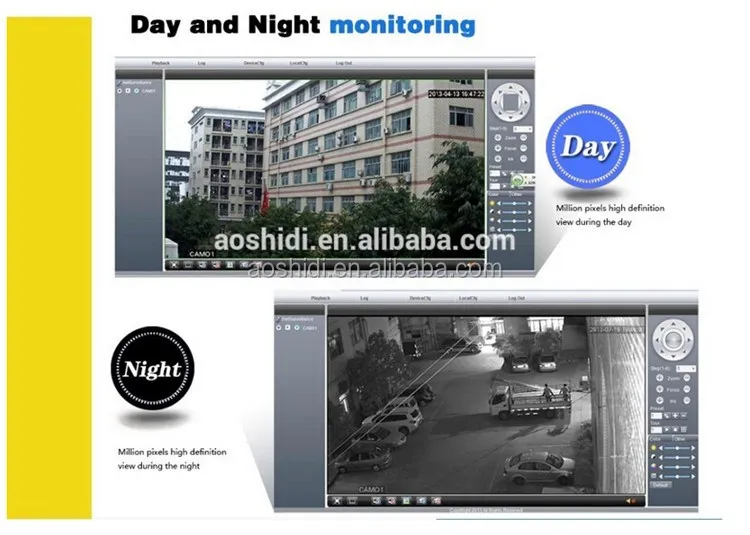

Day/Night	Auto (ICR) / Color / B&W	Audio output	1ch RCA
OSD Menu Language	EN, CN, DE, FRA, IT, ES, PL, RU,	Alarm input	No
White Balance	Auto/Manual	Alarm output	No
Gain Control	Auto	Network interface	RJ45 10M/100M
Noise Reduction	3D NR	PTZ control	RS485; support multiple PTZ
Picture Adjustment	Yes	USB	2* USB 2.0
OSD Support	Yes	HDD	1*SATA port (Max 4TB/per)
General		Other
Weatherproof Housing	Weatherproof,P66	Onvif	NO
Anti-cut Bracket	YES	Language	English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, T-Chinese, S-Chinese, Turkish
Dual Voltage	NO
IR Cut Filter	YES
Heater	NO
Operation Temperature	-10℃ ~ +50℃ RH95% Max	Power supply	12V/2A
Storage Temperature	-20℃ ~ +60℃ RH95% Max	Weight	1.21Kg
Power Source	DC12V±10%, 500mA	Dimension	235mm(L)260mm(W)40mm(H)

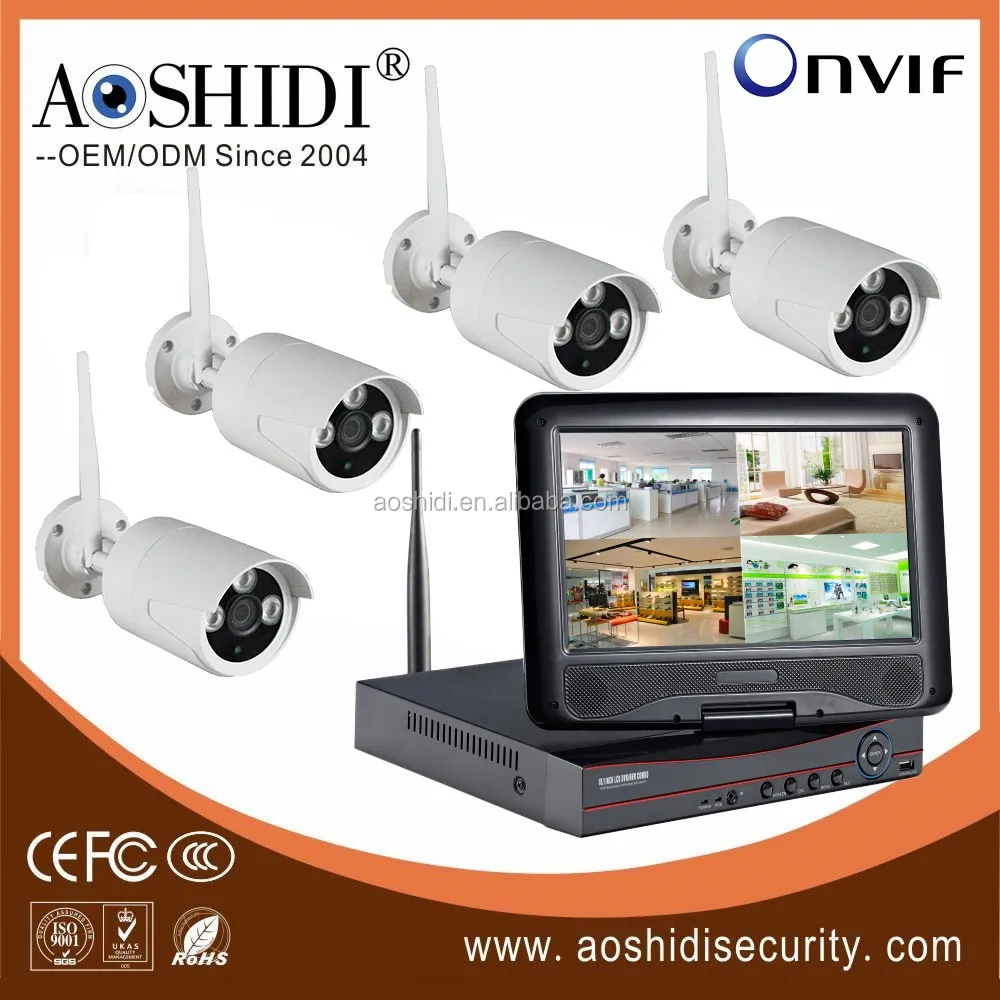

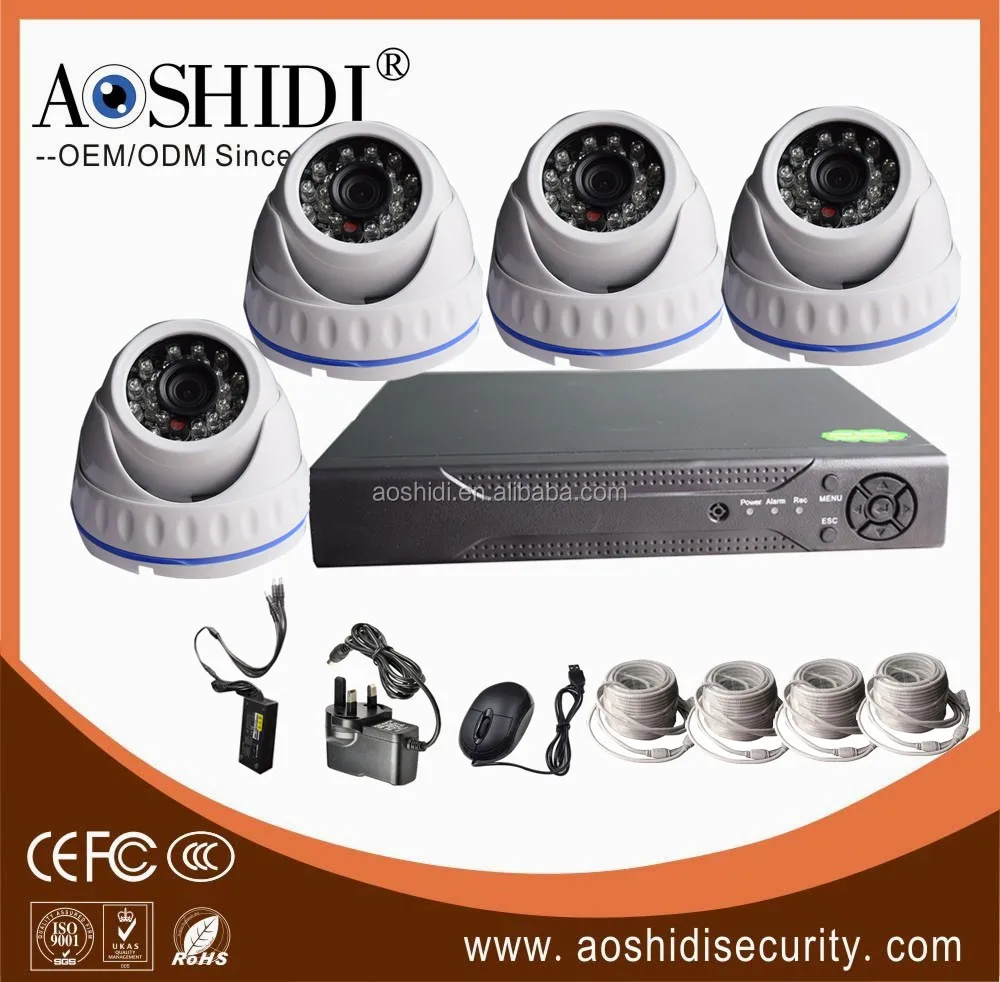

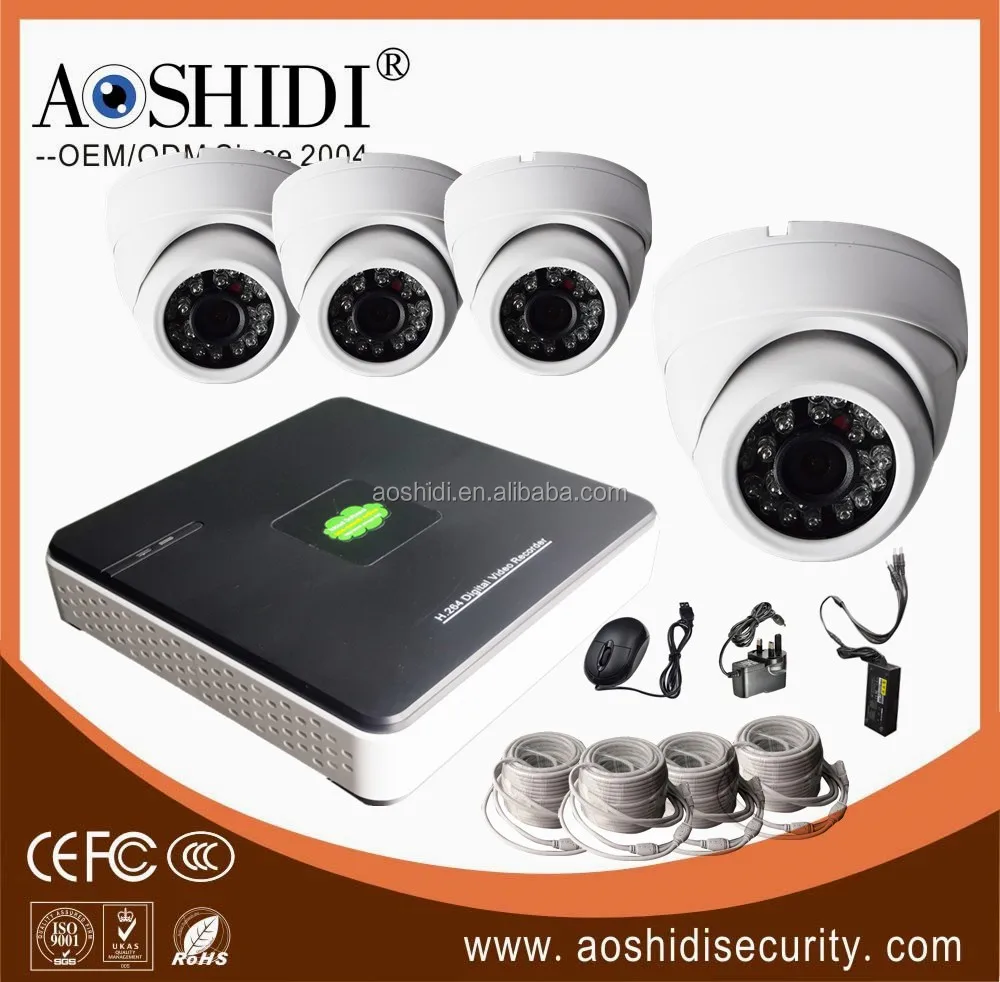

Products Name with link

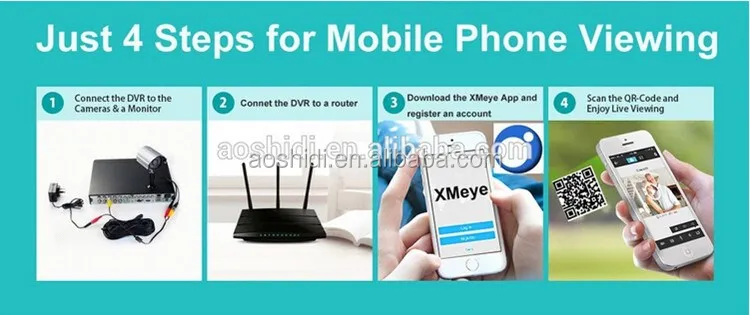

Product function

Certifications

Packing & Delivery

Shipment:

DHL,FEDEX,UPS,TNT,EMS

Packing:

Gift box packing

Payment terms

Our Service

1. We Aoshidi are a professional factory in security products, with high flexibility, so we will try our best to satisfy customers. And we adopt “ quick sale and small profit ” sincerely, do not need to worry about our prices and products.
2. Our service tenet: Trust brings further cooperation.
3. Only quality and service can speak for us.
4. For the mutual benefit, we will do our best.
5. So choose us, and we will not let you down.

Our Company

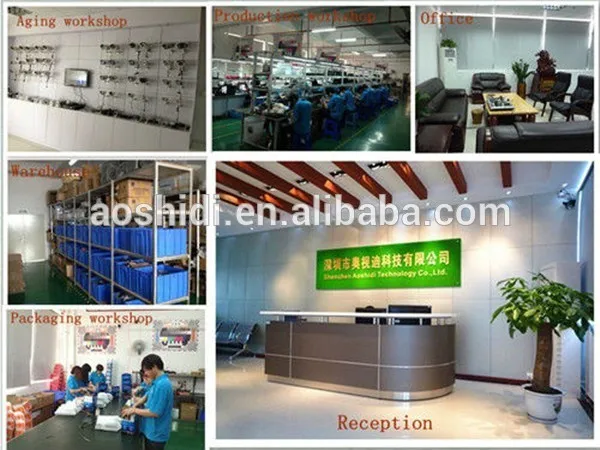

Factory & Fair
