Screw aluminum electrolytic capacitor 450v 1000uf electronics capacitor 35*72
- Ningbo
- T/T D/P D/A Credit Card
You May Like
-
10000UF/475VDC 86*145 film run capacitor/motor run capacitor
-
20UF/450VAC 50/60Hz motor run capacitor/ Metallized Polyester Film Capacitor
-
M15-1 float ball level switch ,float level controller ,water level control switch
-
2200uf/250V 63.5*93 AC Motor Run and Start Capacitor
-
22000UF/63V 35*72 screw aluminium electrolytic capacitor
-
680UF/450V 35*50 Screw Terminal aluminium electrolytic capacitor
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Kampa | |
| Model Number | Electrolytic Capacitor | Type | Aluminum Electrolytic Capacitor | |
| Package Type | Through Hole | Capacitance | 1000PF | |
| Rated Voltage | 450V | Operating Temperature | 40 ~ +105 |
Product Description
1000uf 47uf 450v aluminium electrolytic capacitor

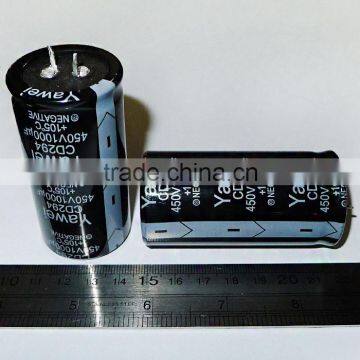

1.PICTURE
2.ALUMINUM ELECTROLYTIC CAPACITORS
| Notes for use of aluminum electronic capacitors |
| 1.If circuit polarities are uncertain,Non-polar capacitors are recommended. |
2.Non-polar (or B1-polar)capacitors can be used in polaritly-changing circuits or DC circuits. |
| 3.Polarzed capacitors can be used in DC circuits only,Its polarity must be marked on the proper side of wire/terminal. |
| 4.Capacitors should be stores at a place of cool and dry |
| 5.Caoacitors cannot be used in a place of ambient temperatyre exceeding its marked temperature. |
| 6.Capaciyors cannot be used in a circuit where ripple current exceeds its allowed range.Please contact us if you have requirement for high temprrature and ripple current capacitors. |
| 7.Capacitors have been stores for a long time and its leakage current exceeds the specified value,please recharge for 30-60 minutes with rated voltage before using. |
| 8.Capacitors cannot be used in a circuit charge or discharge.If use in a circuit of sudden charge is required.Please contact us. |
| 9.Application of working voltage to capacitors should not exceed its rated voltage. |
| 10.In order to protect the internal structures,capacitors cannot be spplied with over pull-forcw.Please refer to JIS C 5102 |
| 11.Soldering Iron should be kept in a suitable distance from vint |
| 12 For peak soldering,the solder temperature should not exceed 260℃ for 10 seconds |
| 13.In order to protect PVC sleeve,printed marks and sealing material.capacitors can not be cleaned with haligenated chermicals or similiar solvent such as trichlorethylene,Xylene or Acetibe,etc. |
| 14.Quality of our capacitors is in accordance with JIS C 5141 |
| 15.Reliablility test methods for our capacitors are in arrodance with KIS C 5102. |
| 16.None of Ozone Depleting Chemicals(ODC)is used in any manufacturing processes of Kampa Company. |
2.PRODUCRS CONFIGURATION AND CAPACITORS
Cylindrical form,metal case,unidirectional leads,derivative fashion is snap-in using insulated sleeve
polarity,press release device)it is from a point,when the capacitor's internal pressure was increased or product was breaked,inflammable materials will not fly down,it can be directly inserted into the welding,
3.The Scope and Characteristics
The products are mainlyt used in LCD,Color TV,Didplay,Inverter,UPS.Elecrical Source and other switching power supply circuits of electronic equipments,They have high reliability.withstand the large ripple current and other characteristics,Case can be adjusted appropriate under the request if the customer.
| Item | Charateristics |
| Operating Temperature Range(℃) | -40℃~105℃(160-600wv.25℃~105℃) |
| Capacitance Tolerance(20℃,120Hz) | ±20% |
| Leakage Current(μA) | 0.01CV or 1.5mA,whichever is smaller.(at 20℃,after 5 minutes)C:Nominal Capacitance(μF)V:rated voltage(V) |
| Dissipation Factor(20℃,120Hz) | Less than the value specified in the standed products tables |
| Load Life(+105℃) | 105 ℃ 2000h |
| 95℃ 4000h | |
| 85℃ 8000h | |
| 75℃ 16000h | |
| 65℃ 32000h | |
| 60℃ 4000h | |
| Leakage current No more than the specifidied value | |
| Capacitance change Within ±12% of the initial value | |
| Dissipation Factor Not more than 150% of specified value | |
| Shelf Life(+105℃) | Time 2000h |
| Leakage current Not more than the specidied value | |
| Capacitance change Within ±12% of the intial value | |
| Dissipation Factor Not more than 150% of specified value | |
| After tesr:uR to be applied for 30 minuted,24 to 48 hours before measurement | |
| Standards | Q/YW.001-2006 CD294 CD294 series aluminum electrolytic capacitors |
