Efficient Ore Yard Dust Suppression Sprayer DS-40 For Industrial Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	FengHua
Model Number	DS-40	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

!!! SAFETY FIRST !!! BEWARE OF COPY !!!

Efficient Ore Yard Dust Suppression Sprayer DS-40 For Industrial Machine

Technical Parameters

Model	DS-40	DS-50	DS-60	DS-80
Max Throw(M) no wind	40	50	60	80

Coverage Area (M2) no wind	4000~ 5000	6000~ 8000	8000~ 11000	17000~ 20000
Nozzles q-ty(pcs)	12(1 ring) or customized	40(2 rings) or customized	50(2 rings) or customized	60(2 rings) or customized
Flow (Adjustable) (L/min)	18~30	40~70	70~80	105~118
Total Power(kw)	6.2	16.5	29.5	37
Power Supply	3-Phase,380V/50HZ(or customized)
Fog Droplet Size (Adjustable )	30-200µm
Water Pressure (Mpa)	1.0~3.0		1.0-3.5
Horizontal Rotation Angle	320°
Pitching Angle	-10°~80°		-10°~45°
Control Method	Remote control
Applicable Environment Temperature	-30℃~+45℃
Color	Green, Orange, Grey, Blue or customized

Main Feature

Applicable to various vehicles mounted: light truck, tractor, and etc.
Simple assembly & disassembly.
Manual control and remote control in driving cab, safe & convenient operation.
High power, big air quantity, wide coverage area, uniform fog droplet.
The gas-liquid mixture can turn the leaves of plants effectively, so that the pesticide can be sprayed to both sides of theleaves evenly.
For the strong penetration and liquid adhesion, it can effectively save the pesticide and reduce the pollution.
High efficiency, wide application, spray fast speed and spraying with vehicle running.

Application Areas:

Industry: humidifying of textile factory, cigarette factory, electronics factory, papermaking mill room, printing mill room, car painting plant, wood (furniture) processing plant, gunpowder producing plant; cooling for power plant, steelmaking plant; humidifying and cooling for the high temperature and humidity environmental conditions in brewing and food industry.
Agriculture: humidifying and cooling for cold storage, greenhouses, livestock breeding, flower nurseres, mushroom classes cultivation, greenhouse cultivation, fruit and vegetable preservation, preventing static electricity, disinfection, haze prevention and control, dust removing and so on.
Landscape fog making: the ultrafine mist suspended in the air and moving in the wind like the clouds and smoke, hazy and indistinct, to create a charming landscape effects; at the same time, the ultra-fine mist particles contain a large number of negative ions, increasing the oxygen content in the air, creating and improving peple’s survival and living environment extremely.

Certification

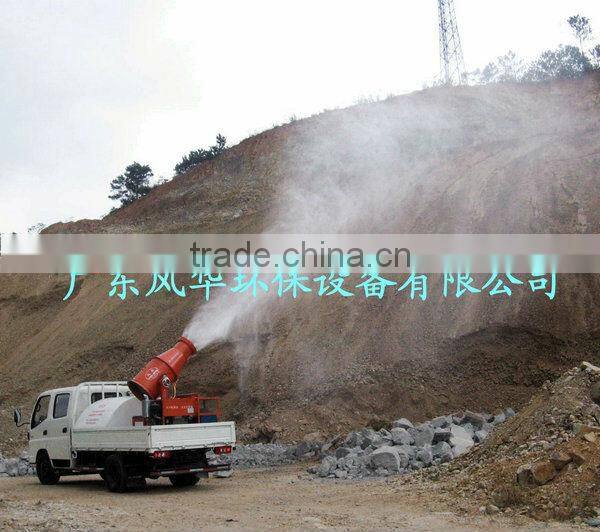

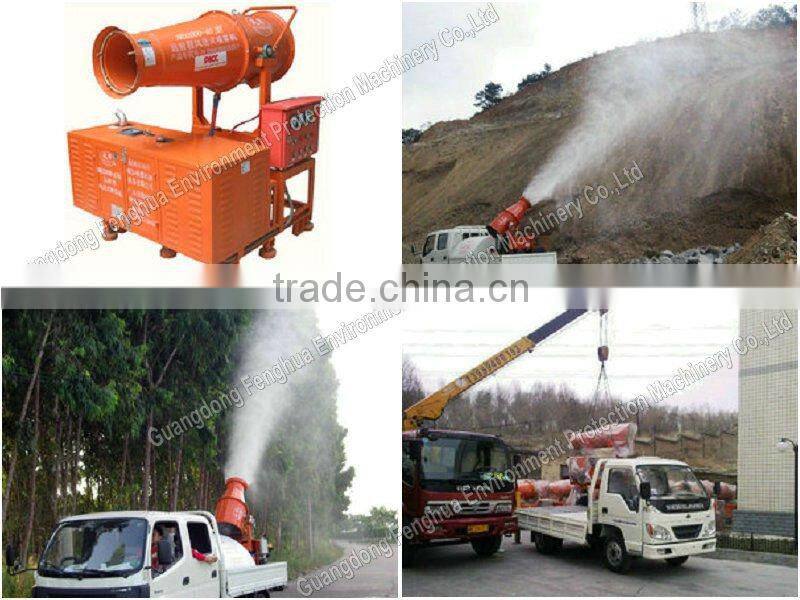

Spraying Picture

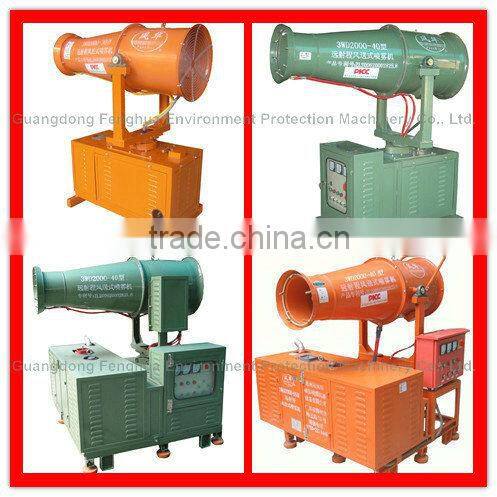

Different Design of DS-40 Sprayer
