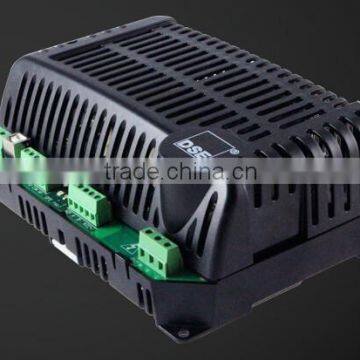

DSE9470 24V10A generator battery charger

                  Features

          ·Universal Output Range: 0V~.

          ·Universal Input Range :AC90~305V

          ·Protection: Overload /Over voltage/Over temperature/Short circuit

                        ·Efficiency80%(Min)

          ·LED power on indication

          ·Built-in EMI filter

          ·100% full load burn-in test  2H

          ·MTBF>50,000H

          ·Safety standards:GB4943,UL60950,EN60950

          ·EMC standards:GB9254,EN55022 A

          ·1 year warranty

          ·Cooling:free air convention

                  Specifications

         INPUT SPECIFICATIONS:                                 OUTPUT SPECIFICATIONS:

         AC Input voltage range…….AC90~305V                            Rise time……...............…….……..1S typ.@115VDC

                                                                                                            Hold up time…….…......…….……..20mS typ.@115VDC

         Frequency……………..……….47~ 63HZ                           Overload protection.….105% - 150% rated power,automatic recovery

           Inrush Current……..…….20A Max.@115VAC                 Over-voltage protection..……105% - 150% of the rated voltage

                              40A Max.@264VAC

         Isolation……….….Input to output=4242VDC

         Leakage Current…………………………….3.5mA max

         ENVIRONMENTAL CHARACTERISTICS:                              MECHANICAL OUTLINE :

         Operating temp&humidity … -20°C~+70°C,         Dimensions..............................136×140×63mm

                       20%~93%RH(non condensing)                      Weight....................................... 1.0KG

         Storage temp&humidity ……–40°C~+85°C,

                                        10%~95%RH

      Our products are widely used in many industries,such as LED lighting,CCTV,postal service,communications industry,power industry,semiconductor refrigeration and heating industry,medical equipment industry,monitor system industry,automatic control industry.

      We can produce different AC/DC series of switching power supply.All of our products have been approved by CE,ROHS  and other relevant certificate.If some customized demand and model can`t be found in our standard product lines,our R&D engineers can design and provide you samples in time as per your requirement.

      Owing to high quality and good reputation,our products have been reached all over the world.Such as North America,South America,Australia,Europe,Southeast Asia.

Indoor Power Supply

Protection:short circuit protection,overload protection,over voltage protection,over temperature protection.

DC output voltage can be changed from 0-5V,0-12V,0-24V……..

High effiency,real long life,High Realiability.

100%  high temperature full load burn-in test.

MTBF>50,000hours.

Green glass fiber PCB.

LED indicator for power on.

Certification:CE ROHS.
