Home > Products > rubber extrusion microwave vulcanization line > machine product the rubber strips for aluminum windows and glass machinery / / car waterproof sealant equipment
machine product the rubber strips for aluminum windows and glass machinery / / car waterproof sealant equipment
- Ningbo or Shanghai
- T/T L/C D/P D/A Credit Card
You May Like
-
machine produce the rubber strips using in the edges of the glasses//aluminum windows and doors rubber sealant
-
Making EPDM extrusion microwave curing machines
-
90-20D Rubber Sealing Strip production line Industry rubber machine
-
75-20D Rubber production line Industry rubber machine
-
75-20D Rubber Sealing Strip production line Industry rubber machine
-
50-12D Rubber Sealing Strip production line Industry rubber machine
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | Baina | Model Number | 90 | |
| Voltage | 380V, 50HZ | Power(W) | 55KW | |
| Dimension(L*W*H) | 3200 L 1200 W 1620H | Weight | 900KG | |
| Certification | CE, ISO9001:2000 | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

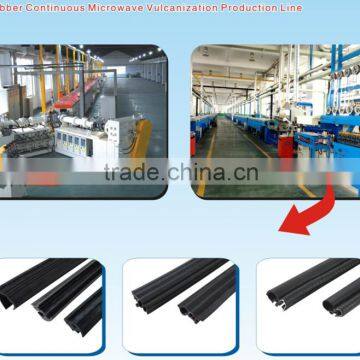

co- extrusion rubber microwave production line
Item | Quantity (set) |
1. Steel belt frame(uncoiling) | 1 |
2. Spot welding machine | 1 |
3. Steel belt storage machine | 1 |
4. Steel belt de-oiling equipment | 1 |
5. Pre-forming machine( for make metal in U type) | 1 |
6. 90mm cold feeding vacuum rubber extruder | 1 |
7. 75mm cold feeding vacuum rubber extruder | 1 |
8. 50mm cold feeding vacuum rubber extruder | 1 |
9. 600mm super-temperature shaped machine | 1 |
10. 3M high-temperature forming machine | 1 |
11. 12KW microwave vulcanization oven(8.9M) | 1 |
12. Hot air vulcanization oven(8M) | 2 |
13. Cooling water tank | 1 |
14. Pulling machine | 1 |
15. Drilling machine | 1 |
16.Composite product core dismantling unit | 1 |
17.Composite product forming machine | 1 |
18. fixed-length cutting machine(with receiving) | 1 |
19. connection head(90/75/50) | 1 |
20. Reeling machine | 1 |
3m high temperature vulcanization oven
microwave vulcanization oven
Hot air vulcanization oven
debugging workshop
Specifications for rubber extruder :
Cold feed extruder used in the production of various types of article sealing section,hose,the film production.
| iTEMS | Diameter of screw mm | L/D Ratio | Speed of screw max(r/min) | Driving power KW | Maxmun output of production Kg/h | Weight KG |
| XJD-75*16 | 75 | 16 | 60 | 37 | 120 | 1200 |
| XJD-90*16 | 90 | 16 | 55 | 55 | 300 | 3200 |
| XJD-120*16 | 120 | 16 | 50 | 110 | 600 | 5200 |
| XJD-150*16 | 150 | 16 | 45 | 135 | 900 | 6500 |
| XJW-45*16 | 45 | 16 | 70 | 7.5 | 50 | 500 |
| XJW-50*16 | 50 | 16 | 65 | 7.5 | 60 | 600 |
| XJW-75*16 | 75 | 16 | 60 | 37 | 120 | 1200 |
| XJW-90*16 | 90 | 16 | 55 | 55 | 300 | 3200 |
| XJW-120*16 | 120 | 16 | 50 | 110 | 600 | 5200 |
| XJW-150*16 | 150 | 16 | 45 | 135 | 720 | 6500 |
| XJW-75*16 | 200 | 14 | 35 | 185 | 1500 | 8500 |
exhibition
certificate:
Order Guide:
1. Ship date: 30----120 working days
2. Payment terms: T/T or L/C
3. Full range of devices to be provided on schedule, as per client demands.
4. Responsible for training technicians and operators for operation and maintenance of the equipment.
5. Responsible for installing and debugging all devices.
6. Formula available and long term technical supports.
7. Guarantee: One year guaranteed repair and lifelong tracking service,with parts provided.
8. All the parameters of the machine on metric units and in English.
9. Package: standard export wooden pallet.
Welcome to visiting our factory!
Zhejiang Baina Rubber&Plastic Equipment Co.LTD
More detail please contact us freely.
Thanks and best regards.
cady chen
Mobile: +86-13967618405 / 13506763762
Skype: cady1811
