BZC600BCA Water well drilling machine

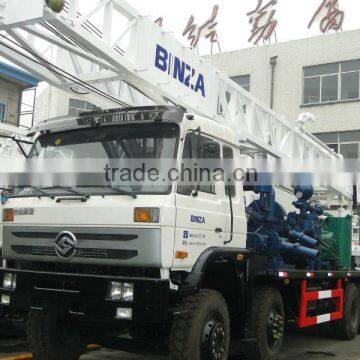

BZC600BCA truck mounted drilling rig is patent product, designed by our engineers. It is a kind of truck mounted and rotary drilling rig.

The truck chassis adopts the special crane chassis of brand CHANA TRUCK and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed mechanism are set up on the chassis.

This rig is a rotary drilling rig with directional circulation. It is equipped with WB850/4-80 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

According to client's requirement, the rig can carry out down-the-hole hammer drilling with USA Sullair, Japan PDSKIOOS, Sweden Atlas, China Kaishan, Hongwuhuang; can carry out air lifting reverse circulation drilling with air-water tap, double-wall drilling pipe, gas-water separator; can carry out Hydraulic DTH hammer drilling rock breaking with WB850/4-80 mud pump; can carry out core-drilling with other special drilling tools.

BZC600 BCA truck mounted drilling rig is high efficiency, because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

Technical parameter

Drilling depth(M) 600

Drilling diameter(mm) 500

Speed of turntable(r/min) 117;102; 60;38;22; 13;16(reverse)

Torque of turntable(KN.m) 5.4----50

Single rope lifting capacity of main windlass(KN) 50

Maximum lifting capacity of main windlass(KN) 300

Single rope lifting capacity of assistant windlass(KN) 60

Maximum lifting capacity of assistant windlass(KN) 240

The lifting capacity of hook(KN) 300

Bearing capacity of drilling tower (KN) 300

The height of drilling tower (mm) 13000

Drill pipe Kelly bar(mm) 108×108×10500

Assistant pipe (mm) .89×10×9000

WB850/4-80

plunger pump

Diameter of cylinder (mm) 106

Stroke of piston (mm) 155

Theoretical flow (L / min) 500 600 700 850

Rated pressure (Mpa) 7 6 5 4

Diameter of suction tube (mm) 106

Diameter of drain pipe (mm) 64

Truck chassis Drive form 8×6

Engine Model YC6A260-33YC water -cooled four strok diesel engine

Rated power(KW) 191

Speed (r/min) 2300

Size (L*W*H)(mm) 11510*2480*2800

Electric generator Model MF

Rated power (kw) 15 / 30

Rated voltage(v) 380

Rated current(A) 27

Speed (r/min) 1500

Frequency(Hz) 75

The highest speed(Km/h) 75

Weight (kg) 27500

Transport size(L*W*H)(mm) 15543×2480×4032

Working size(L*W*H)(mm) 11139×2480×16749
