Home > Products > percussion drilling rig > Algeria popular! water well drilling rig
Algeria popular! water well drilling rig
- 1 Set / Sets per Month
- Xin gang/Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | BINZUAN | |
| Model Number | BZT300SZ | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Guarantee : one year
DESCRIPTION

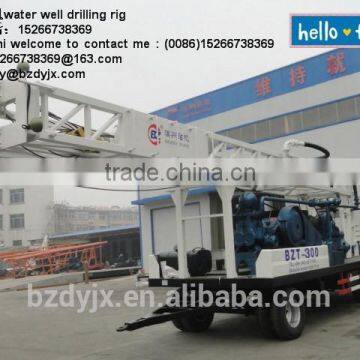

BZT300SZ trailer mounted water well drilling rig can be pulled by tractor and other motor tractor, so it is convenient to move.
-The power is an independent diesel engine, and the winch and the turntable working through the mechanical drive.
-The drilling rig has four hydraulic jacks; they can act together or separately to make balance and the rear jack can stretch out which keep the balance.With hydraulic tower, easy to operate.
-The main parts eg. The winch, turntable,gearbox,tower,chassis are made by ourself ; the performance are stability.
-The drilling rig can be used in the filed of high-rise building, bridge,mine hole, port, foundation, water well, ground source heat pump.
-The drilling rig easy operation, easy to repair,high efficient and is the good choice of customer.
Technical parameter | ||
Drill depth(m) | 300 | |
Drill diameter(mm) | 500 | |
Turntable hole diameter(mm) | 500 | |
Clockwise speed of turntable(r/min) | 50;75;114 | |
Reverse speed of turntable (r/min) | 50;75;114 | |
Clockwise torque of turntable(kN.m) | 13.2;8.8;5.8 | |
Reverse torque of turntable(kN.m) | 13.2;8.8;5.8 | |
Lifting capacity of winch(single)(KN) | 30 | |
Swivel carrying capacity(KN) | 150 | |
Kelly (mm) | 108x108x7500 | |
Drill rod (mm) | 89×10×5500 | |
Working condition(mm) | 9677×2480×13600 | |
Transportation condition(mm) | 12500×2480×3500 | |
Engine | NC6110ZG17-20 water cooled, four stroke,pressed diesel engine | |
Rated power115KW | ||
Rated rotation speed1100r/min | ||
Output torque 600N.M | ||
Mud pump | BW850 | |
Cylinder diameter(mm):150 | ||
Stroke(mm):180 | ||
Frequency(min-1):82,58 | ||
Displacement(L/min):850,600 | ||
Pump pressure(MPa):2,3 | ||
Input power(KW):40(54HP) | ||
