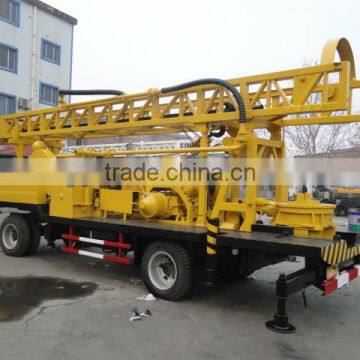

BZCT60SZ trailer mounted drilling rig

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Tianjin Shanghai and the others port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Rotary Drilling Rig
Power Type	Diesel	Place of Origin	Shandong, China
Brand Name	BINZUAN	Model Number	BZCT600SZ
Usage	Water Well	Voltage	380V
Power(W)	200000	Weight	19340kgs
Certification	ISO9001:2008	Warranty	1 year for free
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

It is a trailer mounted rotary table drilling rig;
It can drilling up to 600 meter;
BW1000/12 mud pump;
good quality.

1.BZCT600SZ trailer mounted drilling rig is designed by our engineers; it is adopt trailer mounted and is a rotary drilling rig.

2.This rig is a rotary drilling rig with directional circulation, which is equipped with BW1000/12 mud pump. It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.

3.The power of drilling rig comes from the diesel generator; the rig sets up distribute implement and hydraulic system.

4.The adding pressure implement is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.

5.The master driving of rig is mechanical, the four jacks and mast are hydraulic operated. Distribute box, sewage pump, master driving clutch system are air operated.

6.The appearance of rig is pretty. It has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working. It is popular with domestic and foreign clients.

Technical parameter
Drilling depth(M)			600
Drilling diameter(mm)			500
Speed of turntable(r/min)			50;75;114(reverse)
Torque of turntable(KN.m)			13.2;8.8;5.8(reverse)
Single rope lifting capacity of main windlass(KN)			40
The capacity of main windlass(KN)			270
Single rope lifting capacity of assist windlass(KN)			40
The capacity of assist windlass(KN)			160
The lifting capacity of hook(KN)			300
Bearing capacity of mast (KN)			300
The height of mast (mm)			11900
Bearing capacity (t)			30
Pipe	Kelly (mm)		108×108×7500
	Assistant pipe (mm)		89×10×5500
Hydraulic pump	Model		CB-HP50
	Pump delivery (ml/r)		50
	Rated speed (r/min)		2000
	Rated pressure(MPa)		20
BW1000/12 mud pump	Diameter of cylinder (mm)		100 110 120 130 140
	Stroke of piston (mm)		160
	Theory of flow (L / min)		500 620 730 850 1000
	Rated pressure (Mpa)		10 8 7 6 5
	Pounding times (min^-1)		135
	Diameter of suction tube (mm)		152
	Diameter of drain pipe (mm)		65
	Input speed (r / min)		565
	Input power (kw)		75
	Overall dimensions (mm)		226013801260
	Weight (t)		3.2
Diesel generator		Rated power(KW)	200
		Speed (r/min)	1100
Weight (kg)			17340
Transport size(LWH)(mm)			1250024803500
Working size(LWH)(mm)			9677248013600
