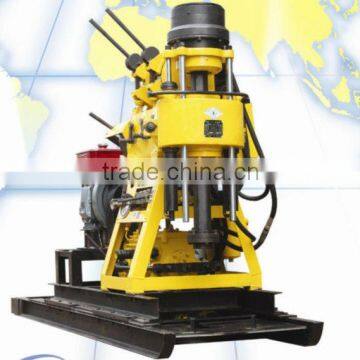

trailer mounted full hydraulic core drilling rig

FOB Price

USD $12,000 - $30,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	CNC
Place of Origin	Shandong, China	Brand Name	BINZUAN
Model Number	BZYX200	Power(W)	22HP
Certification	ISO, SGS	After-sales Service Provided	Engineers available to service machinery overseas

Unity machine parameter
Drilling depth		200m
End hole caliber		500-60mm
Drill rod caliber		50mm
Drilling angle		90°~75°
Drill weight (No include power)		910kg
Unity machine dimensions		2.5×1×1.3 2.5×0.9×1.3m
Spindle
spindle speed		64,128,287,557r/min
Spindle stroke		450mm
Hoist
Max.single line hoisting capacity		2000kg
Single line lifting speed		17,35,75,151r/min
Tightrope caliber		12.5mm
Tightrope cubic measure		35m
Hug floodgate caliber		254mm
Hug folldgate belt width		70mm
Distance between drill and hole		400mm
Mud pump
Type	Horizontal single urn twin-action
Displacement	170L/min
Diesle engine	S1115 Model 22HP
Electric motor	Y160M—4 15kw 1440r/min
Maximum pressure	1.5Mpa
Work pressure	0.7Mpa
Water inlet caliber	40mm
Water to exit caliber	30mm
Triangle conveyer belt	B1728mm
