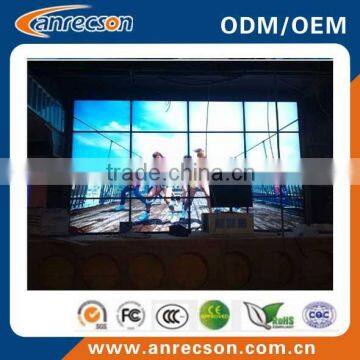

2x3 46" video wall panel with LCD video wall project

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

2x3 46" video wall panel with LCD video wall project

Product Description

Qualification section:

Manufacturer with registered capital of 10 million or more.

Manufacturer with ISO9001 Quality Management System Certification

3C certification for products

CE, ROHS certification for products

Independent innovation certificate for products

Ministry of Public Security product testing and certification

Software copyright certificate

Specifications:

various sizes from40"--60"such as40”,46”,55”,60”

Technical Specification

LCD Video Wall Screen (SAMSUNG DID)
Panel Specification
Model No.				LC-MU4602H
Panel Size				46'' Samsung DID LCD Screen(super narrow bezel 5.5mm)
Aspect Ratio				16:9
Max Resolution Support				1920x1080
Color				16.7M
Brightness (nits)				450cd/m2, 700 Optional
Contrast				3500:1
Visual Angle (H/V)				178°
Response Time				<=8ms
Life(hrs)				>60,000(hrs)
Video Wall Controller(Built-in each Screen)
DVI in				1
HDMI in				1
VGA in				1
Composite Video Input				2(BNC×2)
Y,Pb,Pr/Y,Cb,Cr input				1 (BNC×3)
Composite Video Output				2 (BNC×2)
S-video				2 (BNC×2)
Control signal input and loop out				RS232(RJ45-8)
Split Screen				Support Picture in Picture(PIP/POP)
Video System
Color System				PAL/NTSC/SECAM
HDTV Mode				480P,576P,720P,1080P
3D Combfilter				YES
OSD Display				Chinese/English
Power
Power Supply				AC100V~240V, 50/60Hz
Maximum Power Consumption				<=185W
Standby Power Consumption				<=3W
Temperature
Working Temperature				0°C~50°C
Working Humidity				20%-80%

Processor Specifications

LC-S03 Splicing unit processor
Item	Type	Mode	lc-s03a
Equipment scale	Splicing Scale	Splicing screen unit	32 max.
	Capture scale	HD Capture	24 max.
	Capture scale	SD Capture	192 max.
Configuration	Main processing unit	processor	Intel Celeron processor
		RAM	2G DDR3 1333
		hard disk	8G SSD
		Control PC operating system	Windows XP
		Network interface	1 , 10M/100M/1000M adaptive network port
		USB	3xUSB2.0,1xUSB 3.0
		Display Interface	VGAx1,DVIx1
	Chassis configuration	Chassis height	6U
		Input card	12
		Output card	16
Signal processing capability	Signal output	DVI	DVI-D digital interface, 1024768,1280720,1366768,19201080 supported
	Signal acquisition	DVI,HDMI	DVI-D digital interface, support 800600~19201080P, adaptive
		VGA	DB-15M Analogue interface,support 800600~19201080P,adaptive
		SDI	SD/HD-SDI SMPTE 259M/292M, Resolution support:720P50/60,1080P25/30/50/60
Other	Power		100VAC~240VAC 50/60Hz
	Power consumption		<200W
	Operating temperature		-30°C~50°C
	Working Humidity		5%~95% Non-condensing
	Dimension		Width 482.5mm x depth 320mm x height 266mm
	Weight		20Kg
