Home > Products > Video Wall > 55" 1920x1080 Video Wall with super narrow bezel 3.5mm

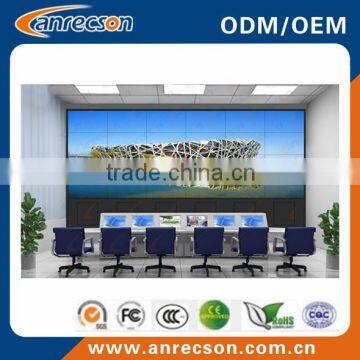

55" 1920x1080 Video Wall with super narrow bezel 3.5mm

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Supply Ability 6000 Unit / Units per Month
Port Hongkong or Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Anrecson or OEM	Model Number	LC-MU5505H
Usage	Indoor	Tube Chip Color	Full Color
Display Function	Other	Screen Dimension	55"

Product Description

55" 1920x1080 Video Wall with super narrow bezel 3.5mm

Product Description

Qualification section:

Manufacturer with registered capital of 10 million or more

Manufacturer with ISO9001 Quality Management System Certification

3C certification for products

CE, ROHS certification for products

Independent innovation certificate for products

Ministry of Public Security product testing and certification

Software copyright certificate

Specifications

various sizes from40"--60"such as40”,46”,55”,60”

Technical Specification

Panel Specification
Model No.				LC-MU5505H
Panel Size				55'' LG DID LED Screen(super narrow bezel 5.5mm)
Aspect Ratio				16:9
Max Resolution Support				1920x1080
Color				16.7M
Brightness (nits)				500cd/m2
Contrast				1400:1
Visual Angle (H/V)				178°
Response Time				<=8ms
Life(hrs)				>60,000(hrs)
Video Wall Controller(Built-in each Screen)
DVI in				1
HDMI in				1
VGA in				1
Composite Video Input				2(BNC×2)
Y,Pb,Pr/Y,Cb,Cr input				1 (BNC×3)
Composite Video Output				2 (BNC×2)
S-video				1(BNCX2)
Control signal input and loop out				RS232(RJ45-8)
Split Screen				Support Picture in Picture(PIP/POP)
Video System
Color System				PAL/NTSC/SECAM
HDTV Mode				480P,576P,720P,1080P
3D Combfilter				YES
OSD Display				Chinese/English
Power
Power Supply				AC100V~240V, 50/60Hz
Maximum Power Consumption				<=220W
Standby Power Consumption				<=5W
Temperature
Working Temperature				0°C~50°C
Working Humidity				20%-80%

Optional Processor Specifications

LC-S03 Splicing unit processor
Item	Type	Mode	lc-s03a
Equipment scale	Splicing Scale	Splicing screen unit	32 max.
	Capture scale	HD Capture	24 max.
	Capture scale	SD Capture	192 max.
Configuration	Main processing unit	processor	Intel Celeron processor
		RAM	2G DDR3 1333
		hard disk	8G SSD
		Control PC operating system	Windows XP
		Network interface	1 , 10M/100M/1000M adaptive network port
		USB	3xUSB2.0,1xUSB 3.0
		Display Interface	VGAx1,DVIx1
	Chassis configuration	Chassis height	6U
		Input card	12
		Output card	16
Signal processing capability	Signal output	DVI	DVI-D digital interface, 1024768,1280720,1366768,19201080 supported
	Signal acquisition	DVI,HDMI	DVI-D digital interface, support 800600~19201080P, adaptive
		VGA	DB-15M Analogue interface,support 800600~19201080P,adaptive
		SDI	SD/HD-SDI SMPTE 259M/292M, Resolution support:720P50/60,1080P25/30/50/60
Other	Power		100VAC~240VAC 50/60Hz
	Power consumption		<200W
	Operating temperature		-30°C~50°C
	Working Humidity		5%~95% Non-condensing
	Dimension		Width 482.5mm x depth 320mm x height 266mm
	Weight		20Kg

Multifunctional splicing processors:

Features: Video processing capabilities

1. Various of ways for flexible windows , full range roaming, overlaying, scaling etc., no limitation for windows position, size and proportion.

2. The maximum number of windows for single-screen can be 48, with all window screen display in all real time display without dropped frames.No layer limitation for windows overlying

No need for plug-in matrix, it can support any roaming and overlying for all windows with in the screen.

3.Ultra HD static background picture (multiple image formats support). Multiple windows static layout supported which is easy to replace and make the background more corlorful.

4.Ultra HD scrolling caption supported and font , color, size , scrolling speed and direction , background color, background transparency, etc. can be flexible chosen.

5.Ultra HD component input which support 3840 * 1080,5760 * 1080,3840 * 2160 ; with all screen details fine and clear.

6.Synchronous echo support for sub-screen monitor, and synchronous display for the main video wall screen picture on one or more display unit screen can be set.

7.Proprietary solution that is adaptive for interlacing , scaling , OSD technology that the picture is clear and smooth .

Packaging & Shipping

Package: Safe standard package or Wooden case package

Shipping: 7~15 working days.
