Home > Products > Metal Case CCTV Monitor > 22 Inch Rugged Metal Case Security Lcd Monitor With BNC
22 Inch Rugged Metal Case Security Lcd Monitor With BNC
Negotiable
/ Unit
1 Unit(Min. Order)
- Shenzhen or Hongkong
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | OEM or Anrecson | |
| Model Number | LC-MS2201 |
Product Description
22 inch Rugged metal case security lcd monitor with BNC
1 cctv with metal case
2 original sumsang lcd panel
3 with wide temperature from -20 to 80 degree
4 high definition, powerful color rendition and high resolution
5 specific high performance picture/color processing engine
6 high performance and programmable sharpening filters with noise coring
7 high speed respond: 1.5ms-5ms
8 with CE/RoHs/FCC/CCC certificates
Datasheet
| 22" LCD CCTV Monitor | |
| Model Name | LC-MS2201 |
| Screen Size | 22" |
| Active Display Area (mm) | 476mm(W)×298mm(H) |
| Display Mode | 16:10 |
| LCD Type | TFT-LCD |
| Resolution | 1920×1080 |
| Display Color | 16.7M |
| Pixel Pitch(mm) | 0.248(H)×0.248(V) |
| Brightness(nits) | 250cd/m2 |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 170(H) /160(V) |
| V-FREQUENCCY | 60Hz |
| Response Time | 5ms |
| Backlight | CCFL |

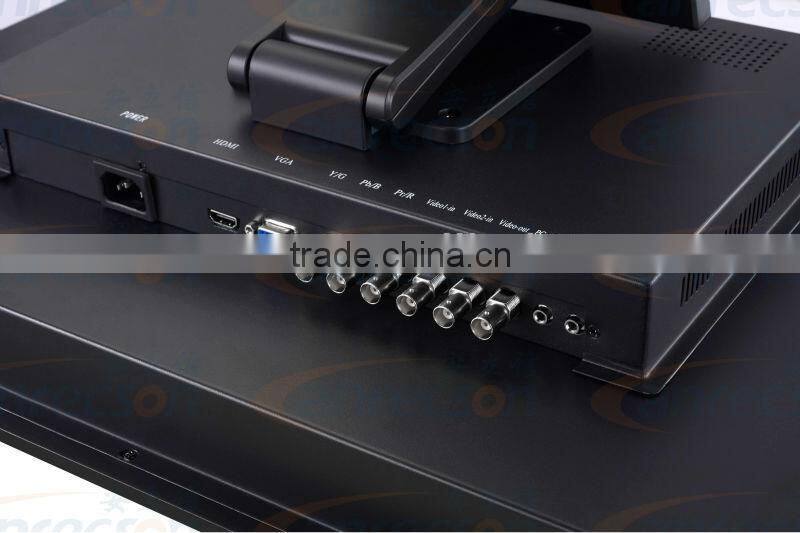

| Input and output | |
| Composite video input | 2 (BNC×2) |
| Y,Pb,Pr/Y,Cb,Cr input | 1 (BNC×3) |
| RS232 input /output | RJ45X2 |
| VGA input | 1 |
| HDMI input | 1 |
| Composite video Output | 1 (BNC×1) |
| VIDEO | |
| System | PAL/NTSC/SECAM |
| 3D Comb filter | Yes |
| Video Comb filter | Yes |
| MENU | Chinese/English |
| POWER | |
| Power input | DC 12V/4A |
| Max in operation | <=25W (Max) |
| Standby power loss | <1W |

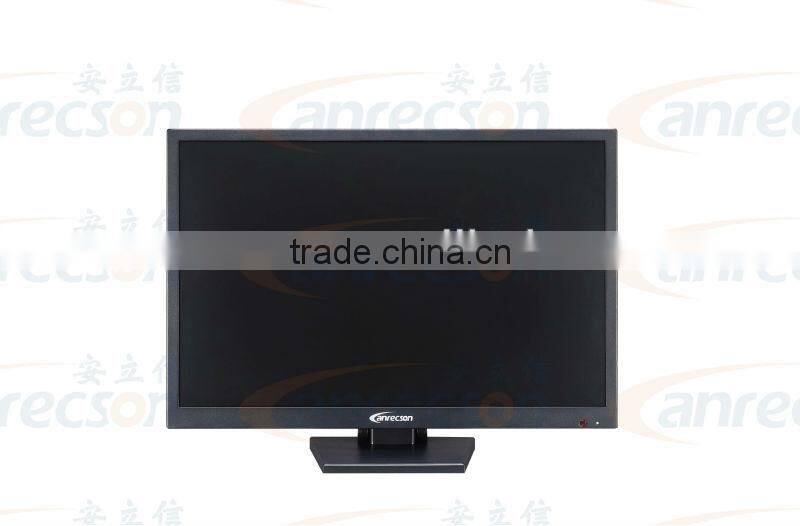

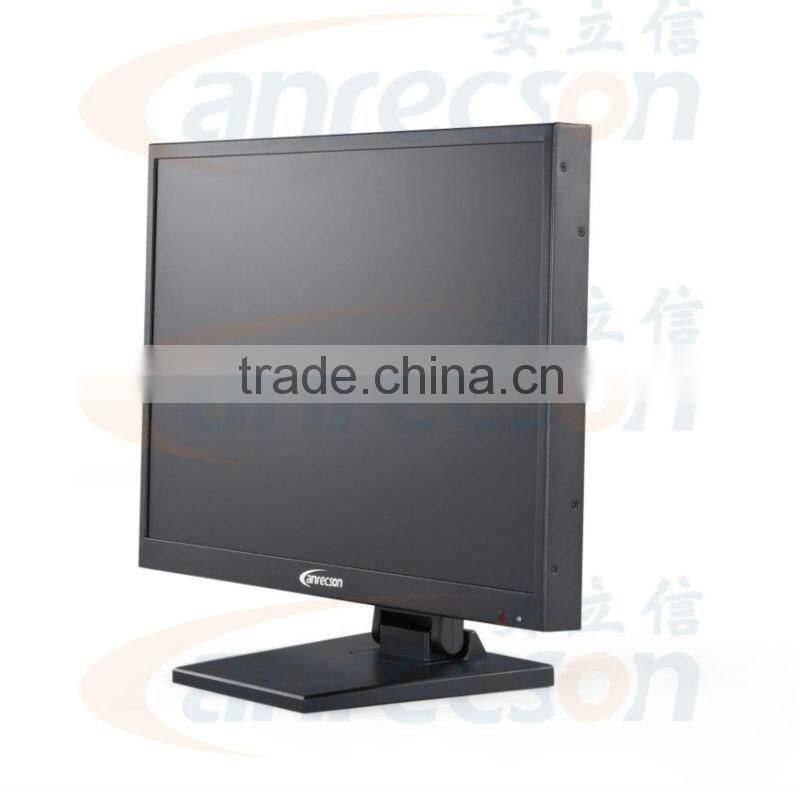

Product Showing
Company Showing
COMPANY CERTIFICATES: CE, RoHs, FCC, CCC, ISO 9001
Contact Us
- Shenzhen Anrecson Electronics Co., Ltd.
- Contact namevivien zhang Chat Now
- Phone86-0755-29966389
- AddressFloor 5,Building B3, Feng Huanggang, No.3 Industrial Zone, Xi Xiang Town, Bao'an District, Shenzhen, Shenzhen, Guangdong
