Home > Products > High Brightness Monitor > 10 inch tft lcd touch screen monitor
10 inch tft lcd touch screen monitor
- shengzhen/HK
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
15 inch 1500 nits outdoor lcd monitor
-
For finance machine/kisok/vending machine/transportation 17" industrial rugged resistive touch monitor
-
ip65/1024x768 resolution/VGA DVI ports 15 inch touch monitor
-
800x600 12 inch resistive touch embedded monitor
-
VGA DVI ports for vessel 10.4 inch ip65 front embedded touch screen monitor
-
37" industrial touch monitor
Product Details
Products Status | Stock | Screen Size | Other, 10.4" | |
Type | Resistive | Interface Type | D-Sub, DVI, Serial, USB | |
Resolution | Other, 800*600 | Brand Name | Anrecson | |
Model Number | LC-OF1041T-4R | Place of Origin | Guangdong, China |
Product Description
12.1 inch high brightness ip65 waterproof touch screen monitor
1 industrial touch screen monitor
2 Long life span
3 accept customizin
4 P65 vandal proof, dust proof, water proof
5 high definition, powerful color rendition and high resolution
6 wide operating temperature,-20℃ to 80℃
7 CE, FCC, ROHS, ISO9001
8 factory offer directy
Features:
1. Any size ranging from 7" to 24", such as 5”,7", 8", 10.4", 12.1", 15", 17", 19", 20", 21.5", 22", 24"
2. Optional touchscreen: 4-wire/5-wire Resistive, Infrared, SAW, Capacitive, with RS232, USB, touchscreen interface.
3. Industrial monitor(with one aluminum bezel on the front) and Panel PC available, VESA mount, VGA,HDMI,DVI port together, panel mount, special interface such as BNC, SDI, s-video available.
4. SAMSUNG/AUO/SHARP panel, with high brightness, short response time, low power consumption; 7"-10.4" is with LED as backlight; We can also provide high brightness lcd monitor such as 1000nit,1500nit,which can be readable in sunlight, waterproof with IP 65 is also available.
5. A/D board is industrial grade with wide operating temperature, can be applied to special conditions, suitable for work 24 hours per day, 7 days per week.
6. Applicable to ATM, kiosk, transportation, automatic vending machine, POS, gaming machine, medical device, etc, industrial areas.

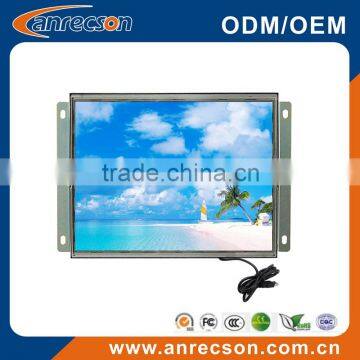

10.4" Touch Open Frame Monitor | |
Mode Name | LC-OF1041T-4R |
Screen Size | 10.4″ |
Active Display Area (mm) | 211.2mm(W)×158.4mm(H) |
Display Mode | 4:3 |
LCD Type | TFT-LCD |
Resolution | 800×600 |
Display Color | 16.7M |
Pixel Pitch(mm) | 0.264(H)×0.264(V) |
Brightness(nits) | 250nits |
Contrast Ratio | 500:1 |
Viewing Angle | 140(H) /110(V) |
Response Time | 5ms |
Backlight | LED backlights |
Interface | D-Sub15 pin(VGA),DVI |
Power | DC12V 2A 50HZ/60HZ |
Power Consumption | less than 25W (Max) |
Plug & Play | DDC 1/2B |
OSD Control | Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language.. |
MENU | Chinese/English(other languages supported) |
Mount Method | |
Mounting | VESA 75mm/100mm |
Touch Type | |
TouchScreen Type | Resistive(4-wire/5-wire) |
Optional TouchScreen Type | SAW, IR Capacitive |
TouchScreen interface | Serial (RS232) or USB(B) |
Certificate Approval | CE,RoHS,CCC,FCC,ISO9001 |
Warranty | 1.5 years |
Application: | |
ATM/ Kiosk/Transportation/ Industrial Automation/Medical Treatment |
Export Standard & Safe Cartons of lcd monitor:
product show
Shen zhen Anrecson Electronics Co.,Ltd was established in 1998, we are a worldwide leadig manufacturer specialized in designing&producing touchscreen monitor, open frame monitor,
industrial monitor, industrial panel pc, digital signage, cctv monitor and video wall etc.
For more information, please visit our website. Thank you.
Warranty:
1.5 years (LCD panel and high brightness product: 1 year)
DOA:
If any product has quality problem, excluding damages caused by natural disasters or by human factors,
we give you unconditional replacement within 30 days from the day you receive it.
We undertake all transportation expense for this replacement.
RMA:
Beyond the above mentioned 30 days but within the one and half years of guarantee time,
if any product has quality problem, excluding damages caused by natural disasters or by human factors,
we undertakes half of transportation fee, that is, the customer pays the transportation fee
for the goods back to us and we for the goods back to the customer
Paid Maintenance:
Beyond the warranty time of one and a half years, if any product is in malfunction and needs repairing,
the customer should pay reasonable fee for the repair service according to the established price list
of maintenance and undertake all the transportation fee in the process of repair.
After customer’s agreement, we immediately provide our service for the customer.
Trade Terms
Price Terms: EXW, FOB, CNF, CIF, etc.
- Shipping Method: For sample, by DHL/Fedex/UPS/EMS; For bulk order, by air or sea.
- Payment: For sample, 100& T/T in advance; For bulk order, 30% T/T deposit and 70% T/T before shipment.
- More details can be discussed according to the order
Contact Us
- Shenzhen Anrecson Electronics Co., Ltd.
- Contact namevivien zhang Chat Now
- Phone86-0755-29966389
- AddressFloor 5,Building B3, Feng Huanggang, No.3 Industrial Zone, Xi Xiang Town, Bao'an District, Shenzhen, Shenzhen, Guangdong
