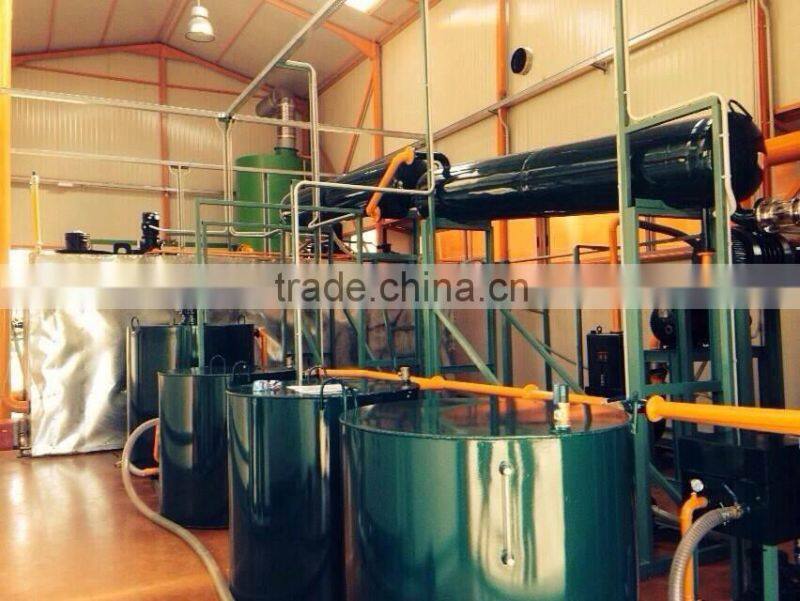

Change Black to Yellow Dirty Engine Oil Recycling to Base Oil Machine

⇒ zsa series change black to yellow dirty engine oil recycling to base oil machine

ZSA change black to yellow dirty engine oil recycling to base oil machine deals with different kinds of waste oil,getting high quality base oil and a small amount of diesel and gasoline through distillation process.

After pretreatment,get the waste oil pumped into the distillation kettle and heat it to its working temperature and then we can get the light,medium and heavy base oil in proper order,along with diesel and gasoline.

When the reaction is complete,stop heating.Remove the residue from the bottom of the tank and then this change black to yellow dirty engine oil recycling to base oil machine can be used again.

The production is economical,however,the base oil comes out in good quality,which is the most advanced technology in the waste oil recycling field.It is suitable for large-scale industrial production as well.

process chart of change black to yellow dirty engine oil recycling to base oil machine

Systems of ZSA change black to yellow dirty engine oil recycling to base oil machine

1 Pretreatment system:Waste oil will be pumped into the distillation kettle after pretreatment

2 Distillation system: heat the oil to its working temperature. (The kettle equipped with stirring system and thermal insulation system as well.)

3 Cooling system: the gaseous hydrocarbon will be cooled into liquid base oil, Gasoline and diesel.

4 Storage system:before getting pumped into the storage tank, the liquid baseoil, gasoline and diesel oil will stay in here.

5 Vacuum system: to meet the technology requirement.

6 Filtration system: quickly filter out the mechanical impurities to get the high quality base oil, gasoline and diesel.

OIL RECOVERY OUTPUT RATE AFTER BEING PROCESSED BY zsa series change black to yellow dirty engine oil recycling to base oil machine

Base oil: 85%~88 %( index same as SN150~SN200)

Gasoline: about 3%

Diesel: about 3%-4%

Oil residue: 6%~8% ( which can be used as bitumen,the raw material for cement and bricks or heating fuel just as coal after being cooled off to normal temperature)

Index of the base oil after treatment by zsa change black to yellow dirty engine oil recycling to base oil machine

MAIN BENEFITS AND ADVANTAGES OF ZSA change black to yellow dirty engine oil recycling to base oil machine

1

widely used: including gasoline, engine oil,diesel,engine oil,rubber oil,tire oil,plastic oil,pyrolysis oil,waste oils and other kinds of cleaning oil.

2

low processing cost: the total cost of processing is only USD29 per ton (including fuel, electricity and pretreatment agent cost)

3

high recovery rate: base oil 85%~88%,gasoline 3%,diesel:3%~4%,oil residue:6%~8%

4

Different from other products on the market: Currently the most common continuous operating method is getting the good oil out while pumping the waste oil in. This kind of method is complicated and labor-intensive, and a good amount of good oil will be pumped out as residue oil, which is such a waste. Using that kind of method, the oil yield could only be up to 72% with too much residue oil, making it not easy to use again.

5

No need of acid and activated clay. The high quality base oil we get has no unsaturated composition and can be held in a long time without smell and color changing.

6

the whole process is all sealed while running zsa change black to yellow dirty engine oil recycling to base oil machine and won’t release any gas harmful to human and environment. the colloid,asphalt, carbon black will be turned into oily sludge, which can be used as asphalt or fuel.

7

zsa change black to yellow dirty engine oil recycling to base oil machine uses a special way heating with high thermal efficiency, and it doesn’t form carbon deposition easily. this is the most advanced technology in the world for oil reprocessing and suitable for large-scale industrial production.

8 It’s very durable, more importantly,this change black to yellow dirty engine oil recycling to base oil machine is safe to operate and low on labor intensity, only 1 to 2 workers are enough to run this machine.

9

Do not need thermal oil furnaces to heat, due to its heating temperature incapable to meet the technical requirements. The oil yield only 65%and It needs regular maintenance, ZSA won’t have this kind of issues.

10

Do not need special high temperature resistant oil pump,which is very expensive and easily breakable. To keep it continuously working, you have to replace this pump frequently.  Do not need molten salt furnaces to heat, due to its extremely high temperature, which is not safe. Also the electric heating method can’t meet the technical requirements, there’s no successful cases in the world using it that way.
