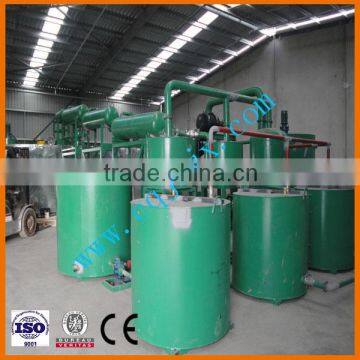

ZSA-5 Waste Oil Filtration Plant To Yellow Base Oil From Waste Engine Oil

             ZSA-5 Waste Oil Filtration Plant To Yellow Base Oil From Waste Engine Oil

overview:This Waste Oil Filtration Plant can treat a variety of waste lube oil ,get high quality base oil and a small amount of gasoline and diesel through vacuum distillation.after pretreatment,waste oil pumped into the distillationKettle,heat to working temperature,can get the base oil ,gasoline and diesel we required.

When reaction complete,stop heating,remove residue from the bottom of the tank,then the machine can be used again.the production cost is low,and the base oil is high quality.this is the most advanced technology in the world in the waste oil recycling line,and suitable for large-scale industrial production.

Systems of equipment

     pretreatment system:waste oil will be pumped into the distillation kettle after pretreated.

    distillation system:through buring coal,gas or fuel oil to make the oil in the kettle up to the working temperature.this system equipped with stirring system and insulation system.

    Cooling system::the gaseous hydrocarbon will be cooled into liquid base oil.gasoline and diesel.

     Oil storage system:the base oil,gasoline and diesel get from cooling system storage here,then pump into the storage tank.

    Vacuum system:meet the technology requiment.

    Filtration system:rapidly filter out mechanical impurities in the base oil,gasoline and diesel,get the high quality base oil,gasoline and diesel.

Recovery rate

Base oil:85%~88%(index same as SN150~SN200)

Gasoline :about 3%

diesel:about 3%-4%

Oil residue:6%~8%

Index of oil after treatment

performance characteristics,advantageintroduction

1 widely usage: can treat gasoline engine oil, diesel engine oil, rubber oil, waste oils and other various cleaning oil

2 low processing costs: only cost about USD23 of pretreatment agent when treat 1 ton used oil, the total cost of processing one ton used oil only USD45(including fuel, electricity and pretreatment agent)

3 high recovery rate: base oil:85%~88%,gasoline 3%,diesel:3%~4%,oil residue:6%~8%

Current the continuous operation practices in the market, while the good oil come out, at the same time pump waste oil in. This operation is complicated,labor-intensive,and a lot of good oil will be pumped as   residue oil , the yield at most up to 72% ,too much residue oil.

4 Do not need acid and clay, get high quality base oil : No unsaturated composition, can storage in a long-term without change its color, also no any bad smell.

5 environmental protection: the whole process is all sealed, won’t release any gas harmful to human and environment, the colloid and asphalting, carbon black in the waste lube oil are all into sludge, can be used as asphalt or fuel.

6  this Waste Oil Filtration Plant   use a special way heating, high thermal efficiency, and difficult to form carbon fouling.safe,reliable,durable.this is the most advanced technology in the world and suitable for large-scale industrial production.

7 easy operation, low labor intensity, only 1 to 2 workers can easily operate the machine.

8 without the use of heat-conduction oil furnace, the heat-conduction oil furnace heating temperature can’t meet the technical requirements, oil yield only 65%,and need regular maintenance; without the use of special high temperature resistant oil pump, the pump  is very expensive and is easily broken, continuous operation mode need to frequently replace this pump; without the use of salt furnace heating, the temperature is too high, extremely unsafe; electric heating can’t meet the technical requirements, no successful cases in the world.

1.
