WORKING PROCESS OF small scale modular refinery used motor oil to diesel processing device in waste management

JNC small scale modular refinery used motor oil to diesel processing device in waste management can be used in different kinds of black engine oil,crude oil,plastic oil and shale oil,to get diesel and gasoline through distilled catalyst.

Pump the waste oil into the heater,and heat it to its working temperature via coal or fuel oil,gas.

The maximum working temperature is about 410 degrees.

The required diesel and gasoline can be obtained after catalytic distillation.

When the reaction of waste oil in reactor is complete,the machine will stop heating automatically,after that we can just remove the residue from the bottom of the tank and then it can be used again.

SYSTEMS OF small scale modular refinery used motor oil to diesel processing device in waste management

Reaction tank:waste oil will be pumped into this tank from the primary filter

Heating system: by burning coal or fuel we can work the oil temperature up to setting value.This system equips with insulation system as well.

Catalytic system: waste oil reaches the expected temperature,via catalytic effect,and the gaseous hydrocarbons become gasoline and diesel compositions.

Cooling system: after the catalytic effect,the gasoline and diesel compositions will be condensed into liquid materials.

Temperature control system: to make sure the waste oil transformed into gasoline and diesel.When the waste oil is dried by distillation,it can stop heating timely.

Tail gas handling system: through tail gas system,a small amount of unliquefied gas left can meet emission standards.

OIL RECOVERY OUTPUT RATE AFTER BEING PROCESSED BY small scale modular refinery used motor oil to diesel processing device in waste management

Diesel:   86%-88%

Gasoline: 5%-6%

Oil Residue: 6%-8% ( which can be used as bitumen,the raw material for cement and bricks or heating fuel just as coal after being cooled off to normal temperature)

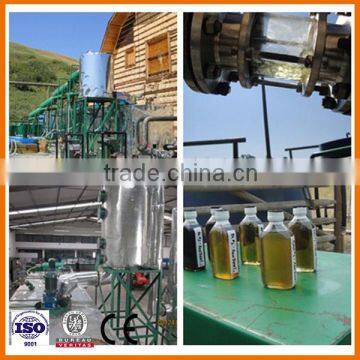

REFINED OIL COMING OUT AFTER BEING PROCESSED THROUGH small scale modular refinery used motor oil to diesel processing device in waste management

MAIN BENEFITS AND ADVANTAGES OF small scale modular refinery used motor oil to diesel processing device in waste management

1 Working principle: waste oil under the action of catalyst distillation gets high quality diesel directly.

2 No need of acid,alkali,oractivated clay to refine the final diesel, just use our plate-and-frame filter( carried with JNC) to remove the impurities.

3 The operating method of JNC small scale modular refinery used motor oil to diesel processing device in waste management is directly heating with fuel or gas, which is safe, convenient,and practical.

4 Environmental friendly: It is completly sealed while running JNC small scale modular refinery used motor oil to diesel processing device in waste management so it wouldn't release any harmful gas to human and the environment.

4 The total cost of processing used oil is only USD19 per ton (including fuel, electricity and catalyst cost).

5 High oil recovery rate: diesel 86%~88%gasoline 5~6%,oil residue 6~8%.

6 Different from other equipment on the market: JNC small scale modular refinery used motor oil to diesel processing device in waste management uses a special way of heating with high thermal efficiency so that it doesn’t form carbon deposition easily, which greatly reduces your maintenance costs.

7 Currently on the market, the distillation is based on coil heating, due to the temperature which can’t meet the technical requirements, the oil yield only achieve to 65%.

This kind of heating mode will make it easy to scale. More importantly, it needs high temperature pump which is expensive and easily breakable. These weaknesses mean you need high cost of frequent replacement after.

8 JNC small scale modular refinery used motor oil to diesel processing device in waste management is safe to operate, reliable and very durable. And it’s easy to operate and low on labor intensity, only 1 to 2 workers are enough to make the machine work.
