phosphate ester fire-resistant oil filter machine
- chongqing port
You May Like
Product Details
| Place of Origin | China | Brand Name | JunNeng | |
| Model Number | KL-20 | Type | Oil Purifier |
Product Description

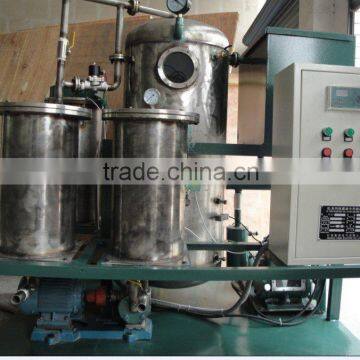

FIRE-RESISTANT OIL FILTER MACHINE SERIES
It is widely applied to phosphate ester fire-resistant oil system and mechanical equipment (oil filter machine).
Features:
1)The purifier is a next-generation vacuum oil filter machine destined for phosphate ester fire-resistant oil system, utilizing dewatering and degassing technologies such as anti-precipitation, aggregation, separation, transformation, resolution, vacuum entrapment and flash evaporation, which not only speedily removes the free water in oil but also intensively removes the dissolved water and gas in oil.
2)The stage-to-stage dandified filter element made of new composite materials can remove the large amount of impurities in oil and reach the purpose of precision filtration.
3)Application of new absorptive materials can effectively absorb the jelly substance in oil, eliminate the acid content in oil,and inhibit the production of new acid in the system.
4)The purifier body is made of anti-acid,anti-dissolving and stainless steel.The filter elements and seals are made of fire-resistant oil materials..
c
Technical Parameters
Model | KL-10 | KL-20 | KL-30 | KL-50 | KL-70 |
Rated Flow(L/min)
| 10 | 20 | 30 | 50 | 70 |
Vacuum Range | -0.05~-0.099Mpa | ||||
Temperature Range | 40~65 | ||||
Oil pump pressure | 0.05~0.3Mpa | ||||
Power Supply | 50HZ 380V | ||||
Total Power | 20 kw | 27.5 kw | 35 kw | 49 kw | 65 kw |
Working Noise | ≤80 db(A) | ||||
Gas content in oil | ≤0.1 % mgkoH/g | ||||
Water content in oil | ≤400ppm | ||||
Cleanliness | ≤NAS 6 | ||||
Mechanical impurity | no | ||||
Dimension(mm)
| 600×480×850 | 700×480×900 | 800×480×950 | 900×500×1000 | 950×500×1000 |
Attention: Dimension and weight will be changed with changing the technical specification.
