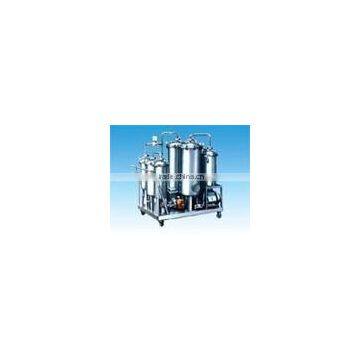

KL fire-resistant oil filter

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Chongqing
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, oil purifier
Structure	Other, Other, Filtering Machine	Place of Origin	Chongqing, China
Brand Name	Junneng	Model Number	KL-300
Power(W)	depend on different models	Weight	depend on different models
Dimension(LWH)	depend on different models	Certification	ISO9001
Warranty	3 years	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

It is widely applied to phosphate ester fire-resistant oil system and mechanical equipment (oil filter machine).

Features:

1)The purifier is a next-generation vacuum oil filter machine destined for phosphate ester fire-resistant oil system, utilizing dewatering and degassing technologies such as anti-precipitation, aggregation, separation, transformation, resolution, vacuum entrapment and flash evaporation, which not only speedily removes the free water in oil but also intensively removes the dissolved water and gas in oil.

2)The stage-to-stage dandified filter element made of new composite materials can remove the large amount of impurities in oil and reach the purpose of precision filtration.

3)Application of new absorptive materials can effectively absorb the jelly substance in oil, eliminate the acid content in oil,and inhibit the production of new acid in the system.

4)The purifier body is made of anti-acid,anti-dissolving and stainless steel.The filter elements and seals are made of fire-resistant oil materials..

Technical Parameters

Model	KL-10	KL-20	KL-30	KL-50	KL-70
Rated Flow(L/min)	10	20	30	50	70
Vacuum Range	-0.05~-0.099Mpa
Temperature Range	40~65°C
Oil pump pressure	0.05~0.3Mpa
Power Supply	50HZ 380V
Total Power	20 kw	27.5 kw	35 kw	49 kw	65 kw
Working Noise	≤80 db(A)
Gas content in oil	≤0.1 % mgkoH/g
Water content in oil	≤400ppm
Cleanliness	≤NAS 6
Mechanical impurity	no
Dimension(mm)	600×480×850	700×480×900	800×480×950	900×500×1000	950×500×1000

Attention: Dimension and weight will be changed with changing the technical specification.
