Shandong Jinmai Machinery Co., Ltd.: Linyi, Shandong, China; Main products: Brick Machine, Block Machine, hollow block making machine, cement brick machine, brick making machine

Home > Products > New Products > Concrete insulation block making machine/EPS concrete block machine hot sell from Shandong jinmai machinery

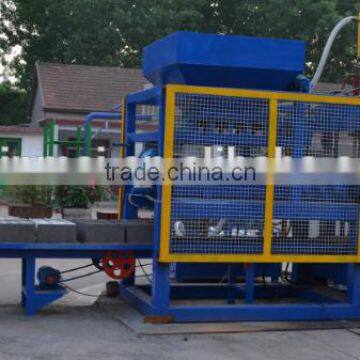

Concrete insulation block making machine/EPS concrete block machine hot sell from Shandong jinmai machinery

FOB Price

US$ 40,000 - 100,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Hollow Block Making Machine
Brick Raw Material	Cement	Processing	Brick Production Line
Method	Hydraulic Pressure	Automatic	Yes
Place of Origin	Shandong, China	Brand Name	JINMAI
Model Number	QTJ8000	Voltage	220V/380V/440V
Power	30KW	Dimension(LWH)	5800X2000X3600
Certification	ISO9001	Warranty	One Year
After-sales Service Provided	Engineers available to service machinery overseas

It is a compact machine with electric and hydraulic system, each procedure action locks with each other to guarantee the machine operate safely, easily and dependablely.
Through mold-releasing oil cyclinder, the mold box was locked into the vibration table with high rigidity to reach the synchronous vibration, so that the concrete can be fluidified and exhausted in two or three seconds to ensure the high-density, especially suitable to produce the standard blocks, which can be piled up immediately so that the pallet investment can be saved directly.
The unique forcing charge system can make use of various kinds of industrial waster and material such as coal ash, cement, sand, stone, slag, and so on. The machine can severs several purposes and produce various specification standard bricks, concrete blocks, porous blocks, paving bricks etc.

Main Technical Specifications
Overall Dimension	710016002610mm
Rated pressure	16MPa
Main vibration form	Platform vibration
Cycle Time	15-25 seconds
Vibrating Frequency	4600 rolls/minute
Motors Power	27.5KW
Pallet Size	102057035 mm
Raw Materials	crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
Applied Products	concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
Applied Fields	widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.

Productivity :
