DIN6899 Wire Rope Thimble Rigging Zinc
- Ningbo/Shanghai/Taiwan
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Meigesi/Rhino | |
| Model Number | DIN6899 |
bulk packing or small boxes packing in cartons then on pallets or as your requirement
Product Description
Specifications
DIN6899 Wire Rope Thimble Rigging Zinc1)Sta:DIN6899
2)Mat:carbon steel
3)Size:2.5-42mm
4)Type:rigging
DIN6899 Wire Rope Thimble Rigging Zinc
| 1) Name: | DIN6899 Wire Rope Thimble Rigging Zinc |
| 2) Standard: | DIN6899 |
| 3) Material: | carbon steel |
| 4) Size: | 2.5-42mm |
| 5) Type: | rigging |
| 6) Shape: | special U |
| 7) Processing Technic: | casting |
| 8) Function: | lifting |
| 9) Finish: | zinc plated, glav |
| 10) Mark: | as consumer's requirement |
| 11) Pack: | box, bulk carton, pallet, gunny, as consumer's requirement |

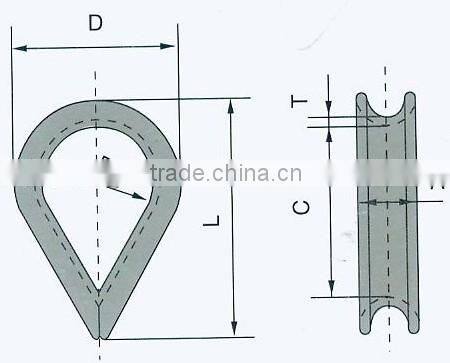

| Size/mm | B/mm | H/mm | D/mm |
| 2.5 | 3 | 19 | 12 |
| 3.5 | 4 | 21 | 13 |
| 4 | 5 | 23 | 14 |
| 5 | 6 | 25 | 16 |
| 6 | 7 | 28 | 18 |
| 7 | 8 | 32 | 20 |
| 8 | 9 | 35 | 22 |
| 9 | 10 | 38 | 24 |
| 10 | 11 | 41 | 26 |
| 11 | 12 | 45 | 28 |
| 12 | 13 | 48 | 30 |
| 13 | 14 | 51 | 32 |
| 14 | 15 | 54 | 34 |
| 15 | 16 | 58 | 36 |
| 16 | 17 | 61 | 38 |
| 17 | 18 | 64 | 40 |
| 18 | 20 | 72 | 45 |
| 20 | 22 | 80 | 50 |
| 22 | 24 | 90 | 56 |
| 24 | 26 | 99 | 62 |
| 26 | 28 | 112 | 70 |
| 28 | 30 | 120 | 75 |
| 30 | 32 | 128 | 80 |
| 32 | 34 | 152 | 95 |
| 34 | 36 | 160 | 100 |
| 36 | 38 | 176 | 110 |
| 38 | 40 | 184 | 115 |
| 40 | 42 | 192 | 120 |
| 42 | 45 | 240 | 150 |
Contact Information:
Yuyao Meigesi Fastener Co., Ltd
Ningbo Rhino Import & Export Co.,Ltd
Add:Room 1701-1702, Guomao Mansion,
700 Yangming West Rd, Yuyao, Zhejiang,China
Tel:86-0574-6285 6895/6897, Fax:86-0574-62856896
website:
Our advantage:"Fast delivery time, Reasonable price,The best service"
Company Profile
YUYAO MEIGESI FASTENER CO., LTD is a professional enterprise, specialized in the production of all kinds of standard fasteners.The main products of MEIGESI are furniture hardware (confirmat screw,confirmat nuts and series of nails )and architecural hardware(drywall screw, nail screws,series of self-drilling/tapping ,wood screws and other kinds of screws.).Processing can be based on DIN,ISO, ANSI,BS,JIS standard,as well as customers own opinion.The main grades are 4.8,5.8,8.8,12.9.To meet the requirements of different customers,MEIGESI sepplies not only our own various kinds of screws,but also anchors,bolts,nuts,washers,punches,riggings and other fasteners from our partner-companies. MEIGESI aims at profession,efficiency,honesty and innovation. Both at home and abroad, enjoyed a high reputation in the field of hardware industry .Products are exported to Russia, Poland, Ukraine, Austrilia,Germany,USA,etc. Let us cooperate hand in hand , to create a beautiful future!
