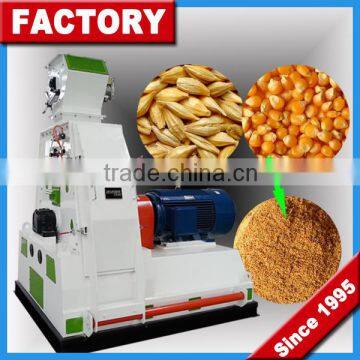

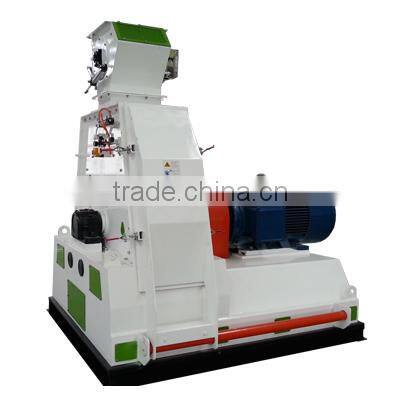

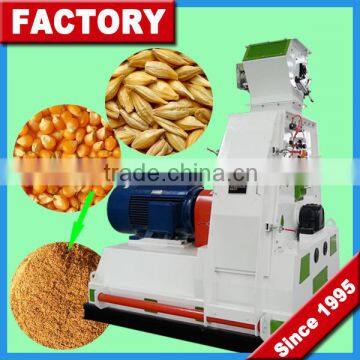

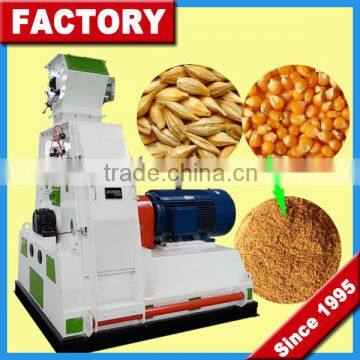

CE Approved Factory Supplier Small Animal Poultry Maize Corn Grinding Hammer Mill Machine

Model: HM-SFSP56*36

Capacity : 3-5 t/H

Power : 22 Kw

Rotor diameter : 560 mm

Model: HM-SFSP56*40

Capacity : 5-8 t/H

Power : 37 Kw

Rotor diameter : 560 mm

Model: HM-SFSP66*60

Capacity : 9-16 t/H

Power : 55/57 Kw

Rotor diameter : 660 mm

Model: HM-SFSP66*80

Capacity : 12-22 t/H

Power : 90/110 Kw

Rotor diameter : 660 mm

Model: HM-SFSP66*100

Capacity : 18-28 t/H

Power : 132/160 Kw

Rotor diameter : 660 mm

 1) the rotated speed of the spindle is 2980 r/min.

 2) the Mesh size of the sieve is 3.0 mm.

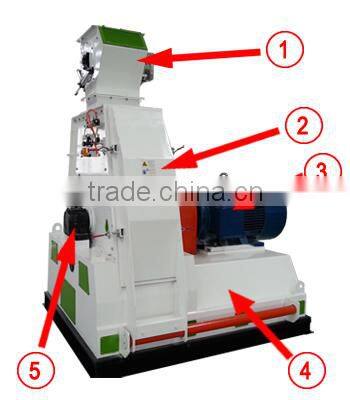

1) Frequency Conversion Impeller Feeder: To make the corn grinder work full efficiently, the frequency is changing in real time based on the raw material amount in the crushing chamber, and the feeding speed is self-adapting.

2) Crushing Chamber: there area number of  hammer and shaft inside. the high speed rotating hammer make the raw material corn grain into powder. and there are screen at the bottom of the chamber.

3) Main Motor: we equip the super quality and brand Simens Motor for our hammer mill machine.

4) Base structure: support the other unit.

5) Bearing: we adopt the famous brand bearing in our machine.

We adopt the super quality Siemens brand motor in our machine.

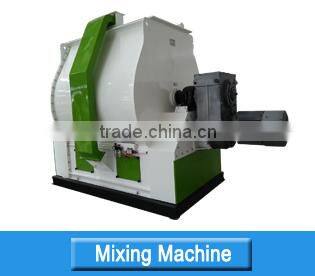

1) Mixing machine mix different kind of powder feed raw material evenly. the final product powder feed could directly feed animal, and it could be made pellet feed as well.

2) the previous processing step is hammer mill(animal feed grinder, corn grinder), and the next processing step is pellet mill.

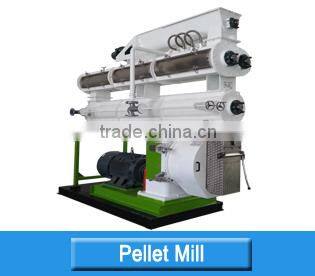

1) Pellet mill make the powder feed material into pellet.

2) The previous processing step is mixing machine, the next processing step is cooling or crumbling.

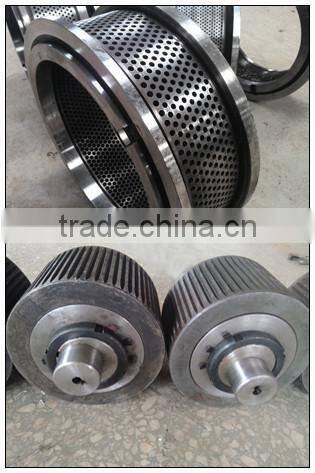

 ♦ The main motor drive the ring die mould rotated. the press roller that were placed inside of the roller does not revolution, but will rotate because the friction of the ring die mould and poultry animal feed powder raw material.

 ♦ The feed material was spread evenly into the space between the ring die and roller, and was press into the mould hole, formed column shape pellet, the pellet will rotate along with the rotating ring die mould and will be cutted when the length of the column pellet reach to a certain value.
