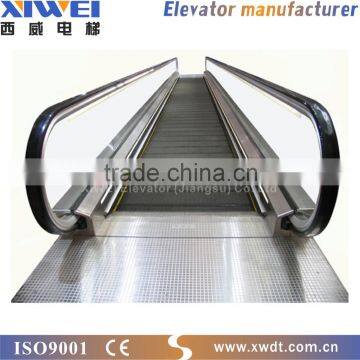

XIWEI 9000 Person per Hour 12 degree Electric Commercial Automatic Moving Walk

FOB Price

USD $9,000 - $40,000 / Set

1 Set(Min.Order)

Port Lianyungang/Shanghai Port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	XIWEI
Model Number	GRR

Product Description

residential escalator Indoor Escalator OEM Escalator Escalator price electric escalator escalator

Product Description

XIWEI 9000 Person per Hour 12 degree Electric Commercial Automatic Moving Walk

XIWEI Elevator (Jiangsu) CO., Ltd, we are a professional manufacturer of elevators, escalators, and moving walk. We have professional team, excellent engineers, our elevators are high quality. We are looking for good agencies all over the world, we promise that we can give you our best price, we would like to make a long-term business relationship with you. We are look forward to hearing from you soon.

Function	Description of functions
1. Lack of phase, error phase protection	If lack of phase or error phase has been checked out, the escalator (moving walkway ) will automatically shop the operation.
2. Motor over-load protection	When the current exceeds 15% of the current rating, the escalator will be automatically stop the operation.
3. Electrical appliance loop protection	It offers the automatic circuit disconnecting device to protect the circuit and mains components of the escalator (moving walkway).
4. Handrail inlet protection	When some foreign substance has been clipped in the handrail inlet, the escalator (moving walkway) will automatically stop the operation.
5. Comb plate safety device	When some foreign substance has been clipped in or between the combs, the escalator (moving walkway) will automatically stop the operation.
6. Step sagging protection device	When there is abnormal step bending, the escalator (moving walkway) will stop the operation before the step entering into the comb plate.
7. Broken drive-chain safety device	When the drive-chain has been over-stretched or it is broken, the escalator (moving walkway) will automatically stop the operation.
8. Broken step chain protection	When the step (plate) chain has been over-stretched or it is broken, the escalator (moving walkway) will automatically stop the operation.
9. Over-speed protection	When there is over-speed to the escalator (moving walkway), it will automatically stop the operation.
10. Direction recersal protection	When it comes the unintentional reversal of the direction of travel, the escalator (moving walkway) will automatically stop the operation.
11. Security line	The yellow synthetic resin security line is located in the front position and two sides of the escalator tread so that the passengers will not tread in-between the edge of the adjacent step and the lift group lengthened skirt panel. The security line on both sides of the step is higher than the tread surface. (The moving walkway offers the selective yellow spray-painted security line.)
12. Emergency stop button	When the button has been pressed down, the escalator (moving walkway) will stop the operation.
13. Skirt panel protection	When some foreign substance has been clipped in between the skirt panel and the step, the escalator (moving walkway) will automatically stop the opertion.
14. Brake protection	When the electric force falls short of supply or it acts any of the safety device, the brake function goes into effect by the safety device through the spring resilience action. In this way, the escalator (moving walkway) stops the operation.
15. Safety inspection switch	It is a safety device to prevent from the escalator starting during the inspection and maintenrance.
16. Step illumination	Illumination exists in the upper and lower ends of the escalator, in the lower part of the step in order to remind the passengers of the security matters.
17. Alarm bell starting device	The alarm bell rings when it starts the escalator in order to remind the passengers of the security matters.
18. Control device for handrail breakage	When the handrail is broken, the escalator will automatically stop the operation.
19. Skirt panel brush	The brush that has been installed between the skirt panel and step will prevent the passengers from touching the skirt panel. (It is not merely restricted to the escalator.)
20. VVVF variable frequency energy-saving system	When choose the frequency converter, it can effectively reduce the energy consumption.
21. Comb illumination	The illumination has been installed in the skirt panel near the comb plate. It offers the lighting for the step and the comb plate. It is more convenient for the passengers to up and down the escalator.
22. Handrail illumination	The handrail illumination has been installed in the handrail frame. The gentle light adds charm to the running escalator.
23. Automatic start / stop	The infrared ray sensor which is near the floor plate can detect the passenger that enter into the floor plate. Then it will automatically start the operation. After all the passengers leave, it will automatically stop the operation again in order to save the energy loss. Scanning sensor and traditional guide rod are available for your choice.

30° ESCALATOR

Construction sketch

30° Escalator elevator parameter list

Model	Travelling height (mm)	Net weight KN	Supporting		Motor power	Transport size
Model	Travelling height (mm)	Net weight KN	R1 KN	R2 KN	Motor power	H	L
GRF(600)-30° (4500 persons/h) speed 0.5m/s	3000	57	46	41	8	2750	10900
	3500	60	49	44		2780	11890
	4000	64	52	47		2810	12880
	4500	68	56	50		2830	13870
	5000	71	59	53		2840	14860
	5500	75	62	56		2860	15860
	6000	65	65	59		2870	16860
GRF(800)-30° (6750 persons/h) speed 0.5m/s	3000	59	52	47	8	2750	10900
	3500	63	56	50		2780	11890
	4000	67	60	54		2810	12880
	4500	71	64	57		2830	13870
	5000	74	68	60	11	2840	14860
	5500	82	74	66		2860	15860
	6000	86	78	69		2870	16860
GRF(1000)-30° (9000 persons/h) speed 0.5m/s	3000	63	59	53	8	2750	10900
	3500	67	64	57		2780	11890
	4000	71	68	61		2810	12880
	4500	75	73	65		2830	13870
	5000	83	79	71	11	2840	14860
	5500	87	84	75		2860	15860
	6000	92	88	79		2870	16860

Step width (mm)	A	B	C	D	E	F
1000	1000	1158	1238	1600	1660	2310
800	800	958	1038	1400	1460	2110
600	600	758	838	1200	1260	1910

35° ESCALATOR

Construction sketch

35° Escalator elevator parameter list

Model	Travelling height (mm)	Net weight KN	Supporting		Motor power	Transport size
Model	Travelling height (mm)	Net weight KN	R1 KN	R2 KN	Motor power	H	L
GRF(600)-35° (4500 persons/h) speed 0.5m/s	3000	54	43	39	8	2850	10180
	3500	57	46	41		2890	11030
	4000	60	59	44		2920	11890
	4500	64	52	46		2940	12750
	5000	67	54	49		2970	13610
	5500	70	57	51		2980	14470
	6000	63	60	54		3000	15330
GRF(800)-35° (6750 persons/h) speed 0.5m/s	3000	56	49	44	8	2850	10180
	3500	60	52	47		2890	11030
	4000	63	56	50		2920	11890
	4500	66	59	53		2940	12750
	5000	70	62	56	11	2970	13610
	5500	73	65	59		2980	14470
	6000	76	69	61		3000	15330
GRF(1000)-35° (9000 persons/h) speed 0.5m/s	3000	60	56	30	8	2850	10180
	3500	64	60	53		2890	11030
	4000	67	64	57		2920	11890
	4500	71	67	60		2940	12750
	5000	74	71	64	11	2970	13610
	5500	82	77	69		2980	14470
	6000	85	81	72		3000	15330

Step width (mm)	A	B	C	D	E	F
1000	1000	1158	1238	1600	1660	2310
800	800	958	1038	1400	1460	2110
600	600	758	838	1200	1260	1910

12° MOVING WALK

Construction sketch

12° Moving walk parameter list

(KN) The construction supporting force includes the vibration load.
No intermediate supporting					One intermediate supporting				Two intermediate supporting
Ro=0.0045XL+13					Ro=0.0045XLa+13				Ro=0.0045XLa+13
					Ru=0.0045XLb+7				Ru=0.0045XLb+7
Ru=0.0045XL+7					S1=0.00585X(La+Lb)				S1=0.00585X(La+Lc)
									S2=0.0058X(Lb+Lc)
Traveling height		Intermediate supporting6754		La (mm)		Lb (mm)	Lc (mm)	Intermediate supporting height
From	To	S1	S2
1601	2663	-	-	-		-	-	Hm1		0.2126×Lb-1051
2664	4151	1	-	L-7000		7000	-
4152	3500	1	-	15000		L-15000	-	Hm2		0.2126×(Lb+Lc)-1066
5852	4000	1	1	15000		7000	L-22000

Tread width A (mm)	1000	800
Central distance of the handrail B (mm)	1238	1038
Outline width C (mm)	1600	1400
Supporting beam width in the well D (mm)	≥1660	≥1460
Preset width in the well E (mm)	2310	2110

0° MOVING WALK

Construction sketch

Model	Traveling height (mm)	Rated speed (m/s)	Rated load capacity (person/h)	lnclination	Motor power (kW)	A (mm)	B (mm)	C (mm)	D (mm)
GRR (800/0°)	80000	0.5	6750	0	5.5	800	1038	1400	≥1460
	80000				8
	130000				11
GRR (1000/0°)	70000	0.5	9000	0	5.5	1000	1238	1600	≥1660
	70000				8
	110000				11

Packaging & Shipping

Packing size:

1 escalator fit in 1*20ft container;

Packing material: Plywood case, bundle, Fumigation-free wooden.

Our Services

Help Customers Source in China to reduce their cost

To provide customers with whole purchasing plan of elevator parts;
To find out the best conjunction point between quality and price in order to reduce costs for them.

How to develop the suppliers for customers

To get customers' need through communicating.
To find out three to four manufactures of the corresponding parts according to the request of the customers.Ask price
and get samples from the manufactures.
To visit the factory (acknowledge the production ability and quality control process).
Basing on the price, sample and visiting, recommend manufacturers to our customers.

How to help customers order from the qualified suppliers

Follow the process of the order.
Send QC to inspect on site before shipping to acknowledge the product quality.
Transfer the response from the customers to the suppliers on time, and follow up the improvement.

Special package services

Gather Sourced Parts for Dispatch (Less than one container Shpt. Service)
Help customers shipping products directly to the working site oversea:
