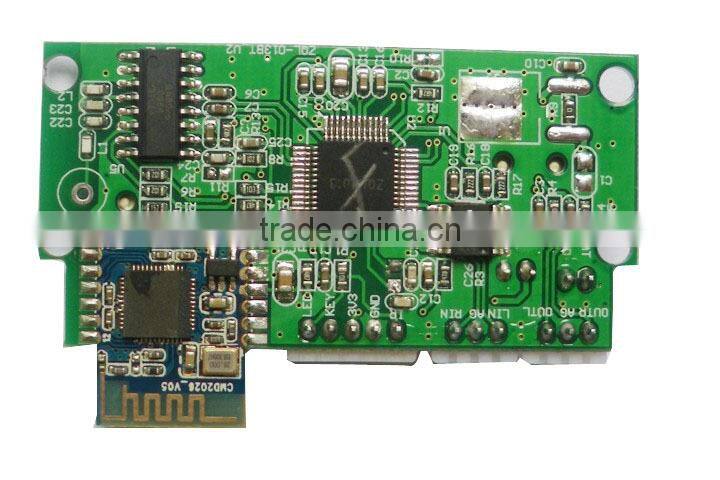

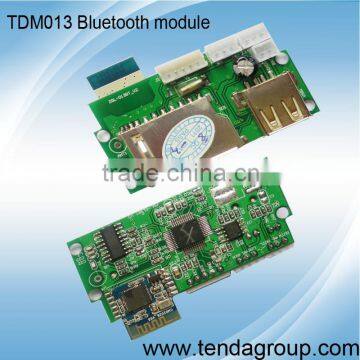

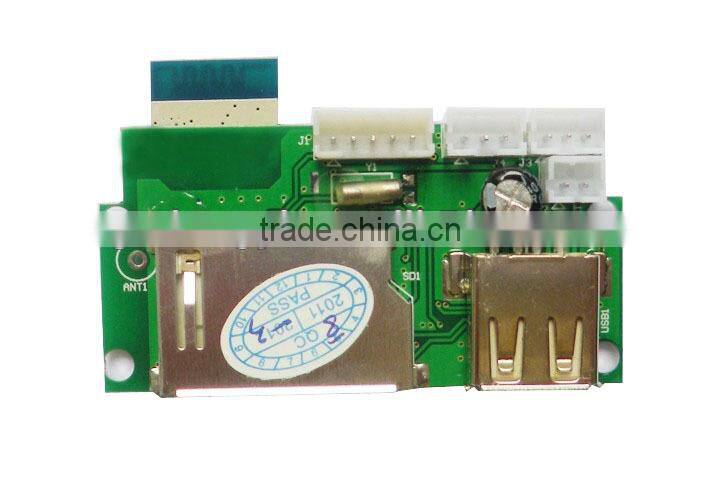

Lower Cost Bluetooth Module With Usb /sd

Specifications

The main device:

The main control:TDM2013

Module Group:TDM6013

Electrical specifications:

Working voltage:5V

Working current:<100mA

Output amplitude:>700mV

Module features:

l  Support Bluetooth3.0EDR

l  Support USB / SD / Bluetooth / FM / LINE switch automatically. module containing MP3/WMA music decoder chip.

l   Support USB, SD MMC card for playback.

l   Support USB / SD card switch, the song, the next song, fast forward, rewind, adjust volume, EQ, play / pause, stop, single repeat, mute, shutdown, elections songs.

l   Support Bluetoot previous song, next song, adjust volume, EQ,    play / pause, mute, shut down.

l  Support FAT16, FAT32 file system.

l  Support MP1 Layer3, MP2 Layer3, MP3 Layer3 version of the song.

l  Support 32-320kbps MP3 songs.

l  Support power-off memory function: memory before power play songs and volume.

A variety of remote control can be selected

1,POWER:(STANDBY)This key can not switch.

2,MODE:a SD card and U disk: switching sequence as USB→SD→Bluetooth→FM→AUX;Only U disk: switching sequence as USB→Bluetooth→FM→AUX;Only when the SD card:Switching sequence as SD→Bluetooth→FM→AUX;No USB and SD card when:FM→AUX→Bluetooth.

3,PREV:In the USB/SD/Bluetooth state press as a repertoire;In the USB/SD state for the song long press rewind; in the FM state short by a radio, press the scan on above radio station.

   4,NEXT:SB/SD/Bluetooth State press for the next track; in the USB/SD state long as songs fast forward; in the FM state short press a radio,long press the scan the next station.

5,VOL+:: Short / long press as music.

6,VOL-:Short / long press as music.

7,REP: USB/SD Playing single repeat and switch between full circulation, the boot for all cycle.

8,“STOP”: In the USB/SD state, short press the stop the music.

9,MUTE:Mute button, click the mute, and then click Remove (according to VOL-/VOL+ can release).

10,EQ: Acoustic mode. NORMAL→BAS→POP→ROC→JAZZ→CLA→CUT→NORMAL

11,PLAY/PAUSE: In the USB/SD/Bluetooth state play / pause; in the FM state long press for all channel search platform Co station.

12,0~9:Do direct key in USB/SD, more than 10 consecutive input number can be selected; do direct key in the FM state, can be directly input radio frequency and channel number.
