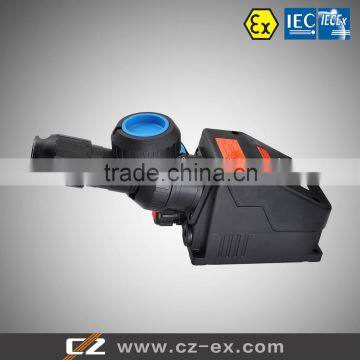

16A Full plastic explosion-proof mobile power branch connection socket box
- Shanghai Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
63A Full plastic explosion-proof mobile power branch connection socket box
-
32A Full plastic explosion-proof mobile power branch connection socket box
-
ATEX And IECEx Hazardous Plastic 32A 4P Or 5P Plug And Socket
-
New Design Style Explosion Proof Removable Wire Pannel
-
ATEX And IECEx Hazardous Plastic 16A 3P Or 4P Plug And Socket
-
ATEX And IECEx Hazardous Plastic 63A and 125A 4P Or 5P Plug And Socket
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CZ | |
| Model Number | CZ0252 | Rated Current | 16A, maximum 16A | |
| Application | Industrial | Grounding | Standard Grounding | |
| Rated Voltage | Up to 690v | Type | Other, Plug with Socket |
Product Description
Descriptions:
The enclosure of full plastic explosion-proof mobile branch connection socket box is made of anti-static glass fibre reinforced polyester which is resistant to impact.It is able to subject to the inverse industrial operating conditions.Concave-convex joint is designed between the cover and body to mount an air-foam silicore bar,which secure degree of protection IP65.
The full plastic box Exe houses Exe terminals,panel type explosion-proof socket.A lift type handle is equipped on the cover and fixing bracket for explosion-proof plug.
1.Besides the present designation for the full plastic explosion-proof mobile power branch connection socket box it can be designed for the full plastic explosion-proof mobile powe branch connection socket box it can be designed and manufactured according to requirements.
2.For explosion-proof plug 16A, 32A can be selected.
3.Wring is finished in the socket box.
4.Sensible arrangement and convenient movement.
1. Rated voltage/Rated current: 50V/16A
- Main Technica Data:
| Ex mark | Ex de II C T5/T6 Gb DIP A21 TA, T5/T6 |
| Intended use | Can be used in zone 1, zone 2, zone 21 and zone 22 |
| Ambient temperature | -40 ℃ ≤Ta ≤45 ℃/55 ℃ |
| Degree of protection | IP66 |
| Rated voltage | up to 50V |
| Rated current | max 16A |
| Cable entry | Moulded plastic 1xM25 |
| Plug | Cable outside diameter Φ 8-18.5mm |
2. Rated voltage/Rated current: 250V/16A
- Main Technica Data:
| Ex mark | Ex de II C T5/T6 Gb Ex tD A21 T95 ℃ /t80 ℃ Ta ≤ 55 ℃ /45 ℃ |
| Intended use | Can be used in zone 1, zone 2, zone 21 and zone 22 |
| Ambient temperature | -40 ℃ ≤Ta ≤45 ℃/55 ℃ |
| Degree of protection | IP66 |
| Rated voltage | up to 250V |
| Rated current | max 16A |
| Cable entry | Moulded plastic 1xM25 |
| Plug | Cable outside diameter Φ 8-18.5mm |
3. Rated voltage/Rated current: 690V/16A
- Main Technica Data:
| Ex mark | Ex de II C T5/T6 Gb Ex tD A21 T95 ℃ /t80 ℃ Ta ≤ 55 ℃ /45 ℃ |
| Intended use | Can be used in zone 1, zone 2, zone 21 and zone 22 |
| Ambient temperature | -40 ℃ ≤Ta ≤45 ℃/55 ℃ |
| Degree of protection | IP66 |
| Rated voltage | up to 690V |
| Rated current | max 16A |
| Cable entry | Moulded plastic 1xM25 |
| Plug | Cable outside diameter Φ 8-18.5mm |
1. Q: Could I put my own logo on it?
A: Yes,OEM service offered.
2. Q: How about the guaranty?
A: More than 1 year. And each product has different warranty,please contact us for detail.
3. Q: How about the certificates?
A: TUV/CE/UL/VDE/RoHS/SGS/CCC/CQC and so on.
4. Q: Could I buy 1pc sample first and small order?
A: Of course,support sample order and small order, especially for new customers under certain condition.
5. Q: How long to make a sample?
A: Samples will be deliveried less than four days.
6. Q: What payment is acceptable?
A: PayPal or western is accaptable for samples.
7.Q: What material do you fabricate?
A: We normally produce stainless steel,aluminum,plastic etc.
