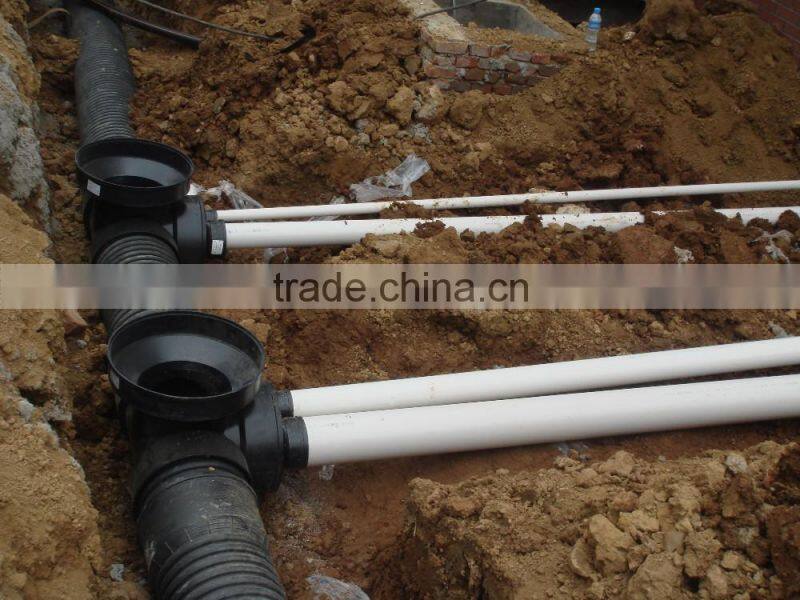

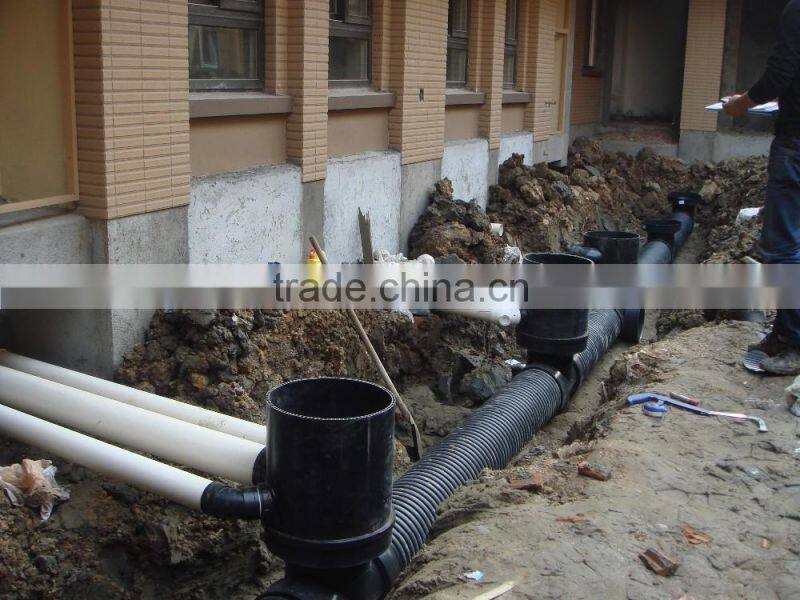

Plastic Water Drainage Wells Manhole

Product Advantage

Plastic inspection well installation is simple, light weight, convenient transportation and installation, reliable performance, bearing capacity, strong impact resistance good, corrosion resistance, aging resistance, and plastic pipe connection are convenient, the sealing performance is good, effectively prevent the sewage leakage, safety and environmental protection; inner wall is smooth, dirt is not easy to resort, can reduce the possibility of blockage, emission rate is greatly enhanced; the shaft of field cutting, hole, adjustment, to adapt to the various installation requirements, construction throughout the day, greatly improving the construction progress, reduce cost, quick construction is traditional brick inspection wells of 10 to 20 times.

1. mesh reinforcement

Lateral mesh reinforced plastic inspection well overall pressure strength, bottom mesh reinforced bar to increase the overall negative pressure of plastic inspection.

2. 360 degree socket

The shaft installation is stable, the force is uniform, not easy to sink, and the support strength is good.

3. bottom groove design

Discharge of sewage water is stable, not easy to appear water resistance, reduce the blockage.

 Size

Technical Information

General Situation Selection Instructions

1. Plastic drainage inspection well design, construction, inspection and maintenance in the new, expansion and renovation of urban and rural areas of municipal, residential area, public construction area of underground drainage pipeline project, the inspection well diameter is less than or equal to 1000 mm, the buried depth is less than or equal to 6 m.

2. Can human operation check Ii (pipe wall) well diameter should be greater than or equal to 700mm.

3. The water outlet of the road should be used in the inspection well seat of the mud chamber, the 450 is the start of the rain water outlet and the well diameter of the heavy mud well, and the well diameter is larger than the diameter of the drain pipe.

4. Well bore diameter is less than 700mm is in the shape of straight wall wells, wells wellbore diameter greater than 700mm shape for closing wells, wells close to 700mm diameter.

5. The well diameter of the well bore of residential district and public construction area is less than 700mm, and the municipal engineering plastic inspection well head is 700 to 1000mm.

6. The connecting position of the bottom hole seat and the end face of the shaft lining should be provided with 360 degree support surface.
