2 inch kiosk thermal printer module for parking system
- Xiamen
- Credit Card
You May Like
-
Black And White Style and Stock Products Status Kiosk Printer
-
Sanor 3 inch 80mm thermal kiosk parking ticket printer
-
2inch kiosk printer 58mm panel mount thermal receipt printer
-
Sanor KP-532 80mm thermal ticket kiosk printer with auto cutter
-
58mm mini thermal printer kiosk billing machine price for coffee shop kiosk designs
-
58mm mini kiosk thermal receipt printer for parking system
Product Details
| Brand Name | Sanor | Model Number | KP-628D |
Product Description

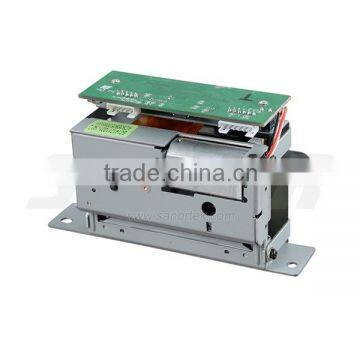

2 inch kiosk thermal printer module for parking system
Brief:
The Cashino KP-628D printer is a direct thermal ticket printer with an integrated cutting mechanism designed for self service (Kiosk) ticketing environments.
The KP-628D features an industry leading print speed of up to 80mm/sec and a high reliability at an MCBF of 1 Million times.
The KP-628D kiosk printer is ideal for a wide range of applications including public information kiosks, gaming, lottery, web kiosks, and much more.Cashino offers specialized configurations of this printer in order to meet customer requirements
Feature:
- 80mm thermal coffee shop kiosk designs with auto cutter
- Compatible Compatible with EPSON M-T532AF/AP
- Paper width:79.5 ± 0.5 mm
- Easy paper load
- Compact design
- Low Noise
- Rubber ruller and paper ending detect
- Mechanism life(150KM)
- High speed(150 mm/s,24VDC)
- Printing width :80mm
Be applicable for 3inch printer terminal,Ticket printer terminal,barcode printer ,bank terminal,kiosk printer, ATM Printer , measure and medical treatment equipment
Specification:
| Item | Specifications | |
| Product number | KP-628D | |
| Printing method | Thermal-line dot method | |
| Dot structure | 384 dots/line | |
| Resolution | 8 dots/mm | |
| Dot pitch (Horizontal) | 0.125 mm (8 dots/mm)—Dot density | |
| Dot pitch (Vertical) | 0.125 mm (8 dots/mm)—Line feed pitch | |
| Effective printing area | 48 mm | |
| Number of columns | ANK 32 columns/line (maximum 12 x 24 dot font) | |
| Paper width | 57.5±0.5mm | |
| Paper thickness | 60 to 85 μ m (some paper in this range may not be used because of paper characteristics) | |
| Power supply | For print head | 4.2 - 8.5 VDC ,average current 1.8A(at 5V),2.6A(at 7.2V),2.8A(at 8.0V) |
| For motor | 4.2 - 8.5 VDC,Maximum 0.46A | |
| For cutter motor | 5-9 VDC,Maximum 1A | |
| For logic | 2.7 - 5.25 VDC,Maximum 0.01A | |
| For Module | 5V-8.5VDC,Maximum 5A Rated Voltage:7V. | |
| Dimensions | Module | 84×52×36mm (W×D×H) |
| Weight | Module | 0.23KG |
| Life | Head | 100million pulses or more(print ratio=12.5%) |
| 50km or more | ||
| Cutter | 1,000,000 cuts | |
| Operating environment | Operating temperature | 0° C to 50° C |
| Operating humidity | 20 to 85% RH (no condensation) | |
| Storage temperature | -25° C to 70° C | |
| Storage humidity | 5 to 95% RH (no condensation) | |
| Detection function | Head temperature | Via thermistor |
| detection | ||
| Head-up detection | Via photo interrupter | |
| Out-off-paper detection | Via photo interrupter | |
Xiamen Sanor Electronics Co.,Ltd. is one of professional thermal printer providers and highly specialized in designing,developing,manufacturing and marketing of printing.
With rich of experience and professional R&D team,Sanor successfully launched a series of printing equipment.Such as portable printers,bluetooth printers,micro panel printers,Kiosk printers,POS receipt printers,barcode label printers,as well as printer mechanism and so on.
There are some pictures of our company as following:
Why you choose us:
1.we own the advanced production facilities for manufacturing printers.
2. our company employee the skill-full workers, almost service in our company for over 4 years.
3.we have the professional team in sourcing and quality inspection team. Every printer will request for abundant of times inspection from raw material to a finished product, such as raw material sourcing assessment, incoming material inspection, PCB board test, auto cutter test,printerhead test... finished printer test and so on.
4.our experienced packing team will pack every printer in strong carton in best way for air/seaworthy transportation.
We take care of everyting from manufacturing to goods arrival!
Packing:20units/ctn, 1carton is 15kg;
Shipping:Air/sea/express
1, Q: Are you a factory or trading company?
Sanor: We are a manufacturer,owing the professional design group,skill-full staffs and quality inspection team,located in add:3/F,No.318,Tongji South Road,Jimei District,Xiamen,China,361021.
2, Q: We would like to have our own brand, is that ok?
Sanor: Yes, we can accept OEM/ODM with your brand or your design. But we will require a MOQ for different models.
3, Q: Besides the English language, do your printers support other languages? And what operation system they backup?
Sanor: Yes, our printer not only supports English language, but also Russian, Spanish, Portuguese etc 48 different languages available, and it backups iOS, Android, Windows, Linux operation systems.
4, Q: How much your sample?
Sanor:(1) Samples charge:According to your order printer. Sampling time:5-7days
(2) Return:the sample charge will be return when we get your large order.
5, Q: What sale after service do you offer?
Sanor: Each printer will have 12 months warranty. Free components will be offered for repair in warranty period, if the issue caused by non-artificial damages.
