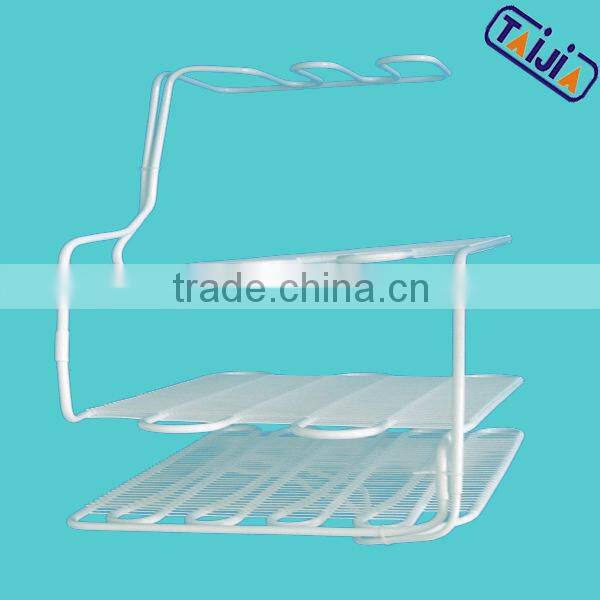

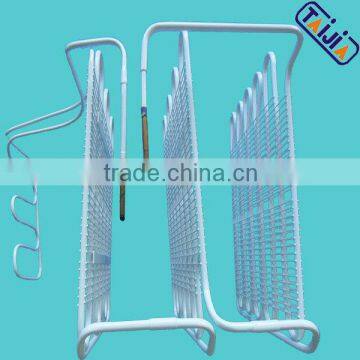

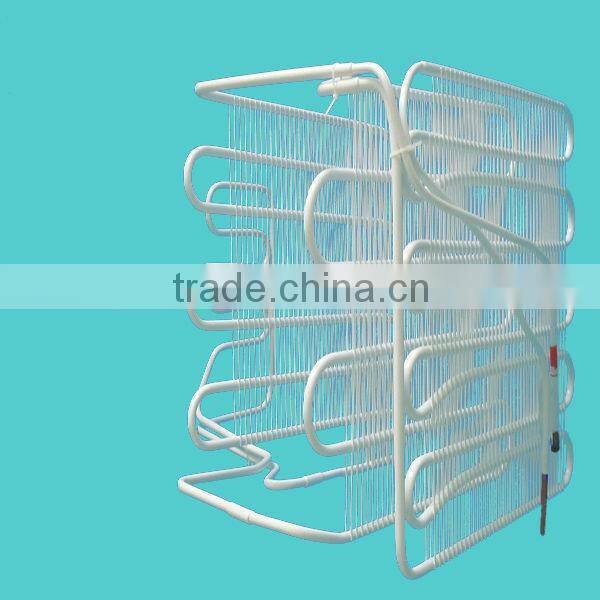

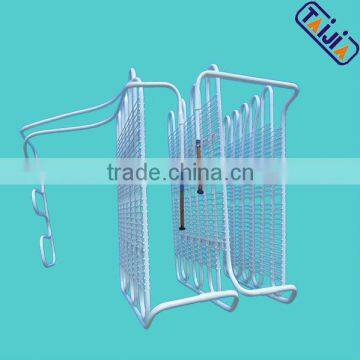

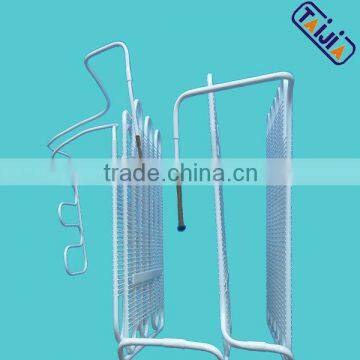

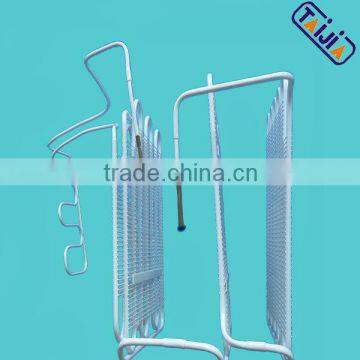

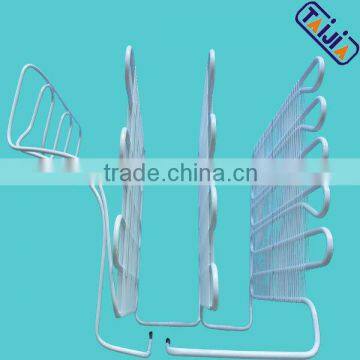

Wire Tube Evaporator For Fridge Parts

Specifications:

High heat exchange efficiency

Wire On Tube Evaporator for Fridge

Energy saving, Corrosion-resistant

Environmental protection,

Raw Material

1)Rolling welded steel tube : Out Diameter 8mm , Wall Thickness 0.6-0.71mm;

2)Low carbon steel wire O.D.1.4-1.5mm

3)Bracket:Steel Plate (SPCC),thickness 0.6-0.8mm

Structure

1)Evaporator for single temperature control system (single capillary evaporator)

2)Evaporator for double temperature control system (double capillary evaporator)

3)Evaporator for three way temperture control system (three capillary evaporator)

Key Process

Tube bending, Tube welding, Mono shelf assemble, Assembly welding, Leakage testing

Coating, Inspection, Package

Technical Ability

1)The distance of steel wire ≥6mm

2)Produce according to the drawing or sample supplied by clients

Performance

1)Surface treated with powder painting or dip coating to prevent the corrosion1)

2)Inner cleanness can meet the requirement of R134a &CFC cooling system

3)Can satisfy the cooling capability requirements

4)Producing Capacity: 3000 piece/Day

R134a Cooling System Tube Inside Standards

Residual Moisture

≤20 mg/m²

Residual Impurity

≤30 mg/m²

Residual Mineral Oil

≤7 mg/m²

Residual Chlorine

≤0.3 mg/m²

Residual Paraffin

≤0.2 mg/m²

Specification of Coating

Coating Thickness

Thickness of  coating 30-100um

Harness of Coating

≥2H

Impact of Coating

50 cmkg/cm impact, no crack

Adhesion of coating

≥ two grade

Flexbility of Coating

Around R=3D bend 180°,no crack or no fall off

Color tolerance of Power Painting

E ≤ 1.5

Professional factory:

Specialized in the production of refrigerator condenser and

evaporator in 1984 .We have about 30 years experience in

development and practical experience.

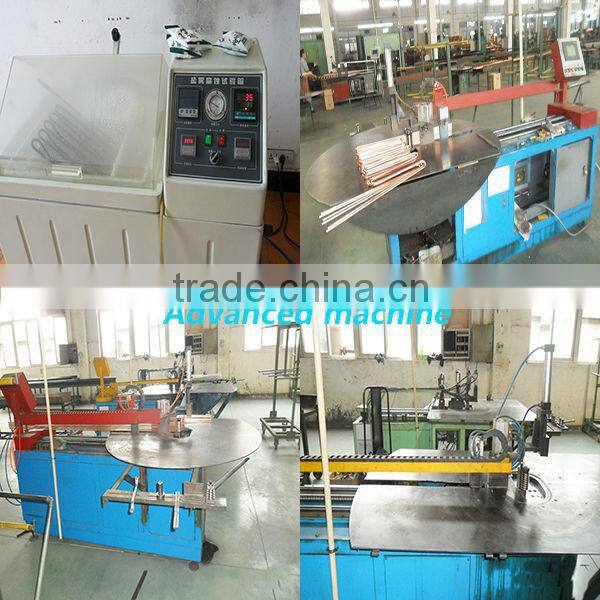

Technology:

It owns over 50 sets of equipment imported from Italy & Switzerland

and more than 10 sets of specialized testing and detecting equipment.

OEM:

operate with Aucma, Little Swan, Midea, LG, TCL and other

well-know domestic and foreign enterprises.

Advantages:

Freon-free, high efficiency and energy saving.

Production capacity:

Relying on the advanced equipments and our staff effort, the production capacity has reached 3.5 million sets a year.
