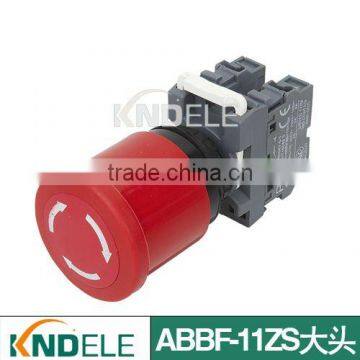

emergency stop push button switch with big actuator silver contacts ABBF-11ZS

Specifications

Description

           Zhejiang Kenaida push button CO.,LTD is a professional push button and  indicator manufacturer,Through years of painstaking operation and development , we had own more than 30 series of push button and accessories , and researched 1-2 series of new products.

 Feature

 Easy to Assemble

 22mm, 25mm mounting diameter

 Choice of Plastic or Metallic Bezels

Colour: R G Y B W BL

Please indicate contact request. (Default contact is 1NO+1NC)

This series includes a complete range of push button switch, extended push button, illuminated
push button, maintained push button, Mushroom push button, emergency stop button, selector
switch, key switch, dual push button, and etc.

Application

Used to either close or open an electrical circuit. Used in various applications such as electric power,
telecommunication, machinery, marine, textile, printing, miningindustrial equipment , and etc.

Working Environment

Ambient air temperature -25°c~ +40°c

Altitude: ≤2000m

Relative air humidity: ≤90%

Pollution degree: class 3

Protection degree: IP65

5. Main Technical Parameter

Rated value of switch: AC-15  36V/10A  110V/10A  220V/5A  380V/2.7A  660V/1.8A

                                        DC-13  24V/4A  48V/4A  110V/2A  220V/1A  440V/0.6A

Conventional thermal current:  1th  10A

Contact resistance:  ≤50mΩ

Insulation resistance:  ≥10mΩ

Mechanical durability:

common push-button≥100×104 times;  selector button ≥30×104 times.

                        Key push-button≥5×104 times;  Emergency push-button≥5×104 times.
