Home > Products > micro switch > mirco switch protective cover AP-C

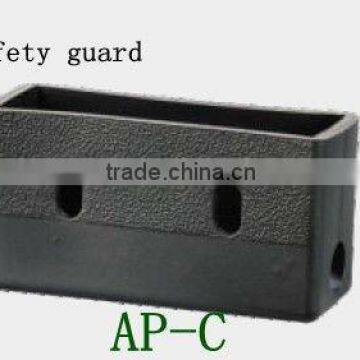

mirco switch protective cover AP-C
- 500000 Piece / Pieces per Month
- ningbo or shanghai
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | KND | |
| Model Number | AP-C | Max. Current | 15A | |
| Max. Voltage | 480V | Operating Temperature | -25℃~+80℃ | |
| Protection Level | IP40 |
Product Description
Specifications
1.Rated current open shut capacity 15A2.High precision
3.Long life: >20,000,000 times
4.Rich varieties
Packing & Delivery
Packing: standard exporting packaging or according to customer's request
Delivery detail: 7 days after payment or it depands on the quantity
You can contact our sale department for more details.
Description
Unit: mm
Characters
1.Rated current open shut capacity 15A
15A 125,250VAC
1/8HP 125VAC ,1/4HP 250VAC
1/2A 125VDC,1/4A 250VDC
2.High precision
OP precision±0.4mm (Needle button type)
3.Long life: mechanical life is more than 20 million times (Needle button type)
4.Rich varieties
Diagram
Contact Type
Installation Hole Size
Panel Mounting Dimension
1.stick harness type
2.roller stick harness type
Product Structure
Wiring size
Unit: mm
Technical Parameters
| Classification | General Type (needle button type) | Spring soft lever Type | |
| Operating speed | 0.1mm-1m/s | 1mm-1m/s | |
| On and off frequence | Mechanical | 240 times/min | 120 times/min |
| Electrical | 20 times/min | ||
| Insulation resistance | ≥ 100mΩ | ||
| Contact resistance | max 15mΩ | ||
| Puncture-withstand | not terminals contact spacing 0.5mm AC1000V 50/60Hz 1minute | ||
| contact spacing 0.25mm AC600V 50/60Hz 1minute | |||
| contact spacing 1.8mm AC1500V 50/60Hz 1minute | |||
| between no voltage metal parts and terminal | |||
| Grounding in among terminals AC2000V 50/60Hz 1minute | |||
| Resistance to vibration | double amplitude 1.5mm,10-55HZ | ||
| Impact resistance | Needle button type | max 300m/s2 | |
| other type | max 50m/s2 | ||
| Mechanical life | Needle button type | ≥ 20,000,000 times | |
| other type | ≥ 5,000,000 times | ||
| Electrical life | contact spacing 0.25mm 0.5mm 500,000 | ||
| contact spacing 1mm ≥ 100,000 | |||
| contact spacing 1.8mm ≥ 100,000 | |||
| Operating Temperature and humidity | -25 °c ~ +80 °c ; ≤ 85%RH | ||
