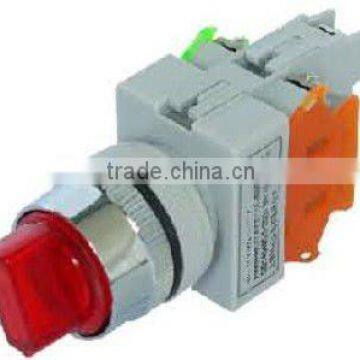

Selector Actuator , selector switch,Two Position or Three Position with light KD37-11DX/2 KD37-20DX/3
Negotiable
/ Piece
10 Pieces(Min.Order)
- Shanghai or Ningbo
- T/T L/C D/P D/A
You May Like
-
flat momentary push button electrical switch KD39A-11,NO+NC
-
flat auto-lock push button switch KD39A-11T,NO+NC
-
illuminated momentary push button switches,KD39A-11D,NO+NC
-
illuminated panel switch , push lock switch ,KD39A-11TD,NO+NC
-
flush button ,push button reset switch, KD37-11,many color availble ,NO+NC
-
Mushroom Head self-lockable Actuator ,emergency stop mushroom head push button,KD37-11ZS
Product Details
| Place of Origin | Zhejiang, China | Brand Name | KD | |
| Model Number | KD37-11DX/2 | Protection Level | other | |
| Max. Current | other | Max. Voltage | other |
Product Description
Specifications
1. contact type: NO+NC ,2NO2. Selector Actuator
3. light switch
Description
Zhejiang Kenaida push button CO.,LTD is a professional push button and indicator manufacturer,Through years of painstaking operation and development , we had own more than 30 series of push button and accessories , and researched 1-2 series of new products.
These are our company's models in the picture , you can add X before the models.please remind us which type and color you want .thank you .If you want one piece ,please contact us.
| Technical Parameters | |||||
| Nominal insulation voltage Ui(V) | 380V | ||||
| Rated current lth(A) | 10A | ||||
| Rated operational voltage ue(v) | 380 | 250 | 240 | 125 | |
| Rated operationalcurrent le(A) | AC-15 | 2.5 | 3 | ||
| DC-13 | 0.27 | 0.55 | |||
| Environment Features | |
| Match a standard | CB14048 5-2008,IEC 60947-5-1 |
| Ambient temperature | |
| Protection level | IP40 |
| Contact Features | |
| Contact action | slow move NO or NC |
| Contact resistance | ≤ 50mQ |
| Mechanical life | ≥1000000 |
| Electrical durability | AC ≥100000 |
| Short-circuit protection | RT16-10A |
| Elucidation | Color | Contact type | Model number | |
| | shine on a light type a choice a switch 2P | |||
| | green | 1NO+1NC | KD37-11DX/2 | |
| red | 1NO+1NC | KD37-11DX/2 | ||
| yellow | 1NO+1NC | KD37-11DX/2 | ||
| shine on a light type a choice a switch 2P | ||||
| | green | 1NO+1NC | KD37-20DX/3 | |
| red | 1NO+1NC | KD37-20DX/3 | ||
| yellow | 1NO+1NC | KD37-20DX/3 | ||
