Home > Products > control box > flat single push button Switch with mark control box

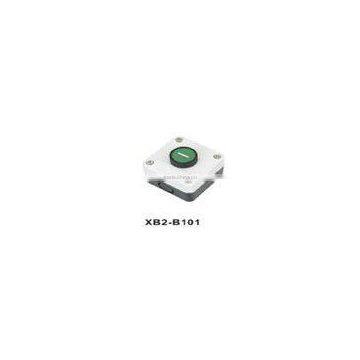

flat single push button Switch with mark control box
- 500000 Piece / Pieces per Month
- Shanghai or Ningbo
- T/T
You May Like
-
single push button switch 2 or 3 position rotary Switch control box
-
flat push button with arrows mark in control box
-
push button plastic remote station electric power controller box two hole yellow and black B02-Y
-
pushbutton control box 5 hole
-
explosion-proof, anti-corrosion three push button remote control box ,transfer switch LA5821-3
-
push button station electrical control box one hole white and black BX1-W
Product Details
| Place of Origin | Zhejiang, China | Brand Name | KND | |
| Model Number | B2-B101 | Protection Level | IP40,IP65 | |
| Max. Current | Other | Max. Voltage | Other |
Product Description
Specifications
1. contact type:NO , NC , NO+NC2. our companyis certified as Yellow Supplier by Zhejiang CHINT Electric Co.,Ltd
Description
These are our company's models in the picture , you can add X before the models. If you want one for sample ,please contact us .thank you.
| Technical Parameters | |||||
| Nominal insulation voltage Ui(V) | 380V | ||||
| Rated current lth(A) | 10A | ||||
| Rated operational voltage ue(v) | 380 | 250 | 240 | 125 | |
| Rated operationalcurrent le(A) | AC-15 | 2.5 | 3 | ||
| DC-13 | 0.27 | 0.55 | |||
| Environment Features | |
| Match a standard | CB14048 5-2008,IEC 60947-5-1 |
| Ambient temperature | -25°c- +55°c |
| Vibration resistance | ≤ 500HZ , amplitude about 1.0mm |
| Shock resistance | ≥10g |
| Protection level | IP40,IP65 |
| Contact Features | |
| Contact action | NO or NC |
| Contact resistance | ≤ 50mQ |
| Mechanical life | ≥1000000 |
| Electrical durability | AC ≥100000 |
| Short-circuit protection | RT16-10A |
| Reference | Detail | mark | |
| B2-B101H29 | green flush button 1NO | START |
| B2-B102 | green flush button 1NO | 1 | |
| B2-B103 | green flush button 1NO | START | |
| B2-B111H29 | red flush button 1NC | STOP | |
| B2-B112 | red flush button 1NC | O |
PACKAGING
1 If the quantity is big enough ,we can do the packaging according to your requirement and in your brand .There is no extra charge for you.
2 Each product is sealed by polythelene bag .It can be always in good condition no matter how long it is in stock.
3 Every box also is sealed by polythelene bag,protecting the goods from water.Even though it is shipped by sea.
4 The goods are using standard packaging.
EXPORTING
1 Our customers are all around the world and the quantity demand is large.After the payment ,the samples will be sent ASAP.
2 After confirming the payment ,the samples will be sent by DHL,UPS,FEDEX and so on .
3 We can help your agent which in china to deal with the exporting process.
4 The goods also can be exproting by your trading company .
5 You can contact our sale department for more details.
