Intermediate Fine Wire Drawing Machine With Annealing

JCJX- B24DT/2 two fine wires drawing machine with annealing

Main usage:

It is used for drawing copper wire from 0.5mm-1.2mm to  0.1mm-0.3mm

Max.Every layer of drawn wire number:two wires

Main feature:

1,double inverter type can precisely control the spool wire tension to reduce the slip ratio of wire to a minium

 manner;

2,DC power annealer and stable elongation;

3,Tension auto control system;

 Main technique parameter

1.Wire inlet dia:0.5mm-1.2mm

2.Wire outlet dia:0.1mm-0.3mm

3.The head of production:2 heads

4.Max speed:Max 1800m/min(with annealing MAX 1500m/min )

5.Annealing wheel dia:160mm

6.Annealing type:DC three step annealing

7.Max dies number:24x2(customer self provided)

  Min dies number:14x2(customer self provided)

8.Eye dies outer dia:20mm ×thickness 8mm or10mm

9.Slip ratio of M/C(%)

  From No.1 to No.23           13%

           No.24                         8%

10.Drive motor:22KW-4P  AC motor and 22KW inverter

11.Reeling motor;2.2KW-4P  AC motor and 4KW inverter

12.Max. Annealing current:350A

13.Max. Annealing voltage:DC60V

14.Cooling water tank capacity:225L

15.Consumption amount of compressed air:225L

16.Pressure of the compressed air:0.4 MPA

17.Steam consumption(taking care by customer):2kg/h

18.Steam pressure:0.2-0.3mpa

19.Machine dimension(mm):4640L×1620W×2000H

20.Machine total weight(kg):4500

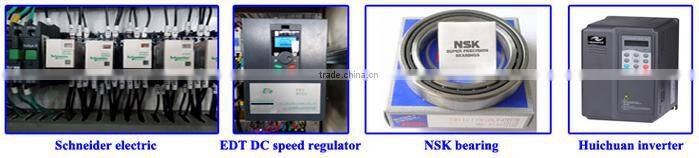

main accessories brand:

Using high quality special material:

     1.Tungsten capstan or other special material

     2.Bearing is NSK from Japan

     3.Transmission type is used Synchronous belt quality.

     4.Motors is high quality from China.

The Annealing process: it will be divided into three stage annealing,

The first is Preheating, it can let the wire heating, Reducing the wire loss due to direct annealing,

the second is annealing, it can make the wire softening ,

the third is Cooling and drying, Because of the high temperature and speed, wires can’t cooling

to normal temperature rapidly, so our machine design this part .

the Advantage: it can relies online continuous annealing, automatic annealing speed tracking.

Low annealing cycle, high yield.
