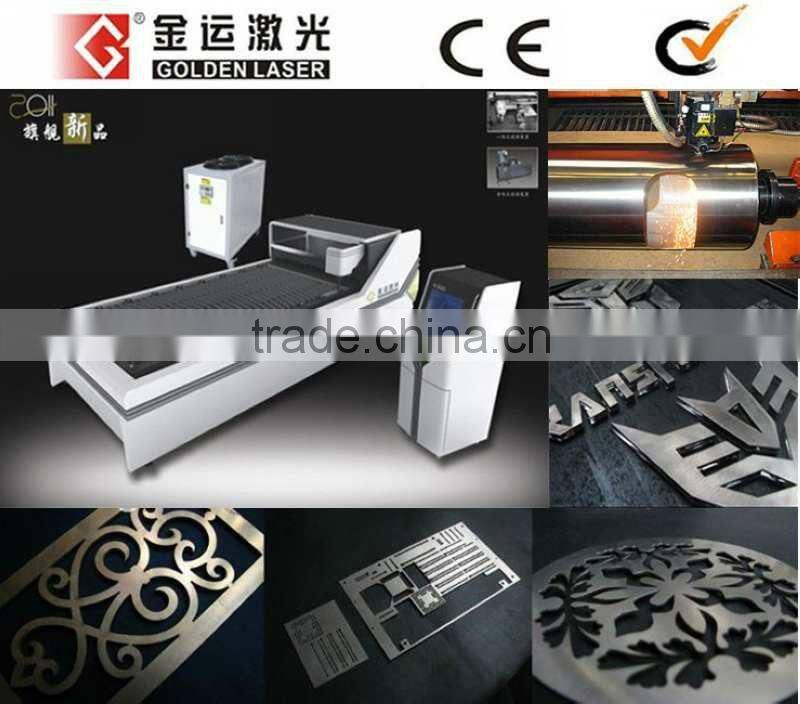

Fiber Laser Metal Cutting Machine Tool 1500X3000mm

Wooden Case Package

Specifications

Fiber Laser Metal Cutting Machine Tool

Golden Laser is a leading manufacturer of laser cutting, engraving and marking equipments. Our unique technologies allow for industrial metal cutting and laser engraving capabilities.

Fiber Laser Cutting Systems Advantage:

The fiber laser cutting series are Golden Laser’s new line of metal precise processing equipment powered by fiber laser technology. The quality fiber laser beam results in faster cutting speeds and higher quality cuts compared to other cutting solutions. The key advantage of a fiber laser is its short beam wavelength (1,064nm). The wavelength, which is ten times lower than that of a conventional C02 laser, generates high absorption into metals. This makes the fiber laser become a perfect tool for cutting sheets of stainless steel, mild steel, aluminum, brass, etc.

The efficiency of a fiber laser far exceeds traditional YAG or CO2 laser equipment. The fiber laser beam is capable of cutting reflective metals with much less energy as the laser is absorbed into the metal being cut. The unit will consume little to no energy when not active.

Another advantage of fiber laser is the use of highly reliable single emitter diodes with projected lifetimes greater than 100,000 hours of continuous or pulsed operation.

Golden Laser software allows for the capability to control power, modulation rate, pulse width and pulse shape giving the user full control of the lasers capabilities.

Machine Features:

Large format of cutting bed for maximum productivity.

Cutting speed is two times faster than traditional laser cutting machines.

Supreme precision motion control by the linear motor.

Automatic rewind system for loading and unloading sheet metal while machine running.

Sensing uneven surface by the auto focus cutting head.

Easy to adjust the focus length.

Machine Specification:

1. Industrial servo drive systems, high precision ball screw and guide rail, It is high precision and long life.

2.500W fiber laser (standard collocation), it is able to cut intricate graphics with high speed and high precision for metal sheets (within working area 1300X2500mm). Good cutting finish.

3. Good beam quality, high photoelectric conversion efficiency. High cutting speed. The key component life up to 100,000 hours.

4. Dynamic focusing device for automatic focus and continuous cutting uneven material.

5. Working table with ball transfer unit and pneumatic loading device for loading and unloading easily, saving labor power and avoiding material scratched.

6. Following bottom exhaust system, a very good air suction system, making the whole processing without fumes.

6. Digital operation panel and mobile controller, easy to use.

7. Advanced technologies of smart nesting, fast digitizing and auto-recognition ensure material saving and high efficiency.

8. Rotary attachment (integrated or detached type optional) for positioning punching, slotting, notching and cutting metal tubes and pipes.

Application:

Materials: stainless steel, mild steel, carbon steel, alloy steel, spring steel, iron, galvanized iron, galvanized sheet, aluminum, aluminium, copper, brass, bronze, gold, silver, titanium plates, metal sheets, metal plates, metal tubes and pipes, etc

Industries: advertising, signs, signage, metal letters, advertising letters, sheet metal processing, metals components, metal parts, stents, ironware, chassis, racks & cabinets processing, kitchen ware, metal crafts, metal artware, elevator panel cutting, hardware, auto parts, jewelry, glasses frame, nameplates, electronic parts, etc

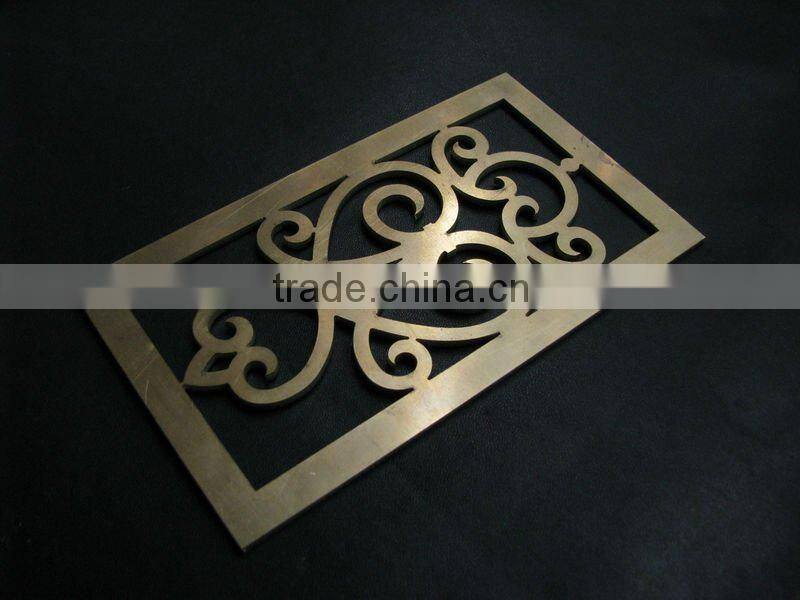

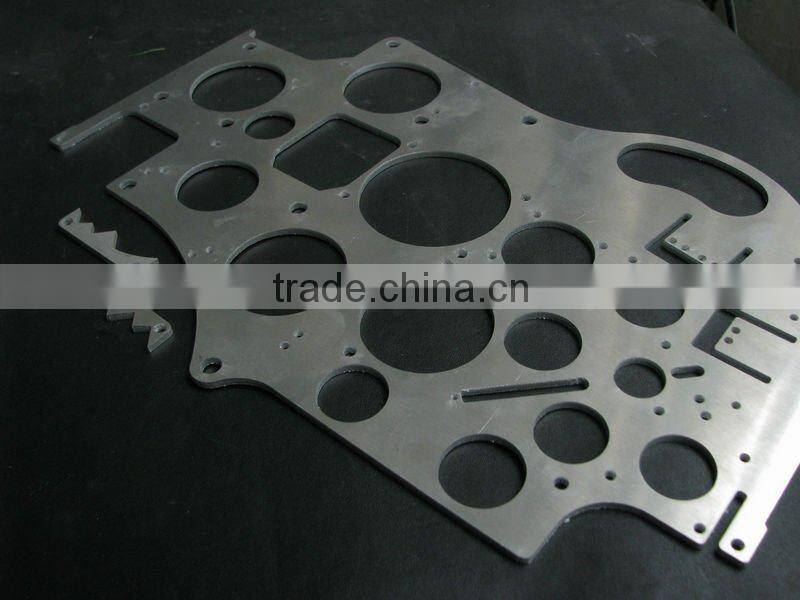

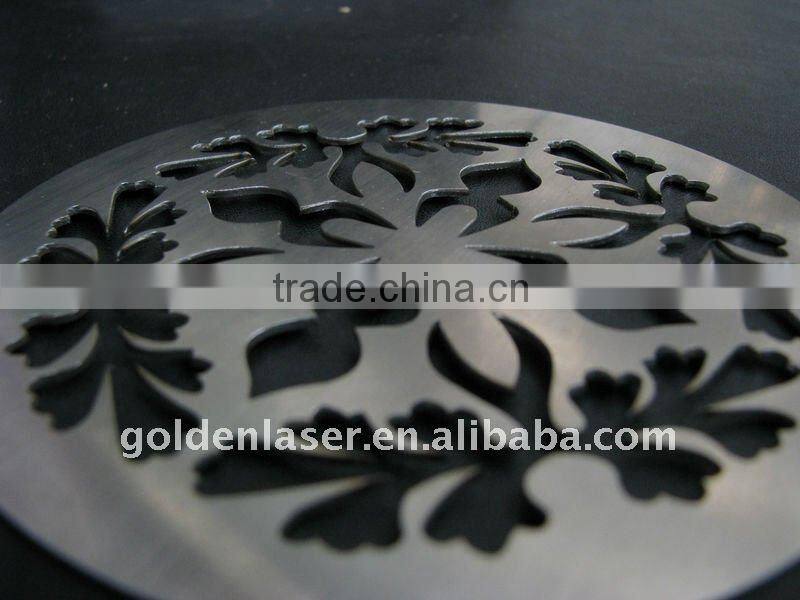

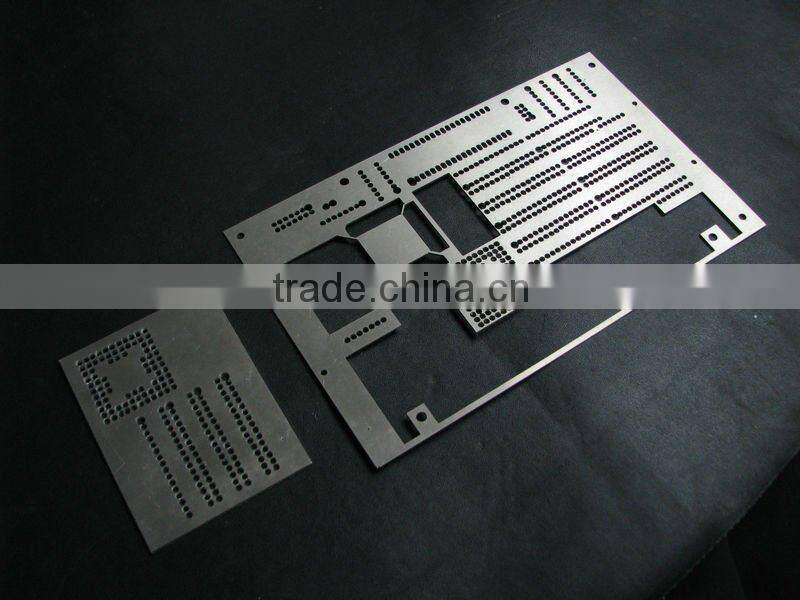

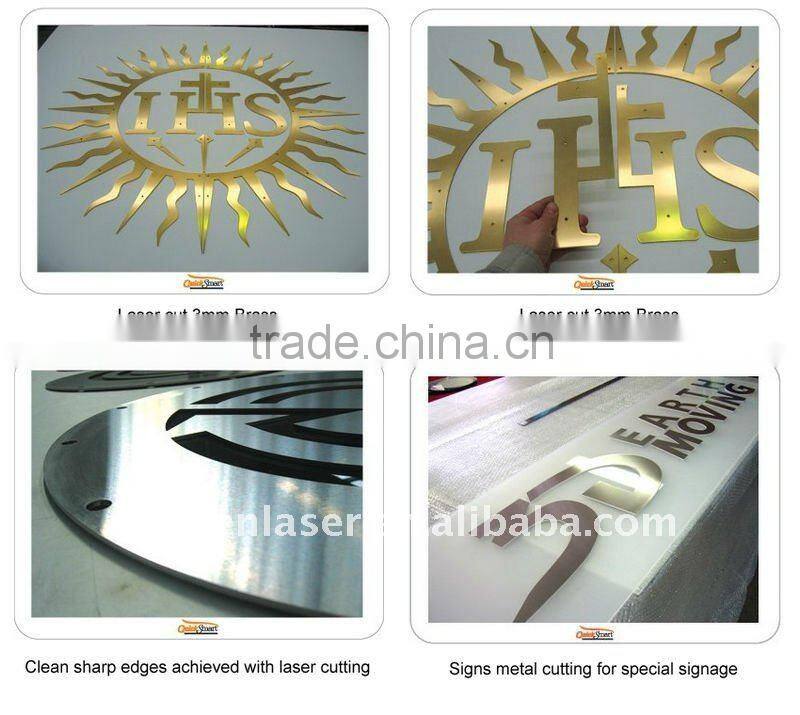

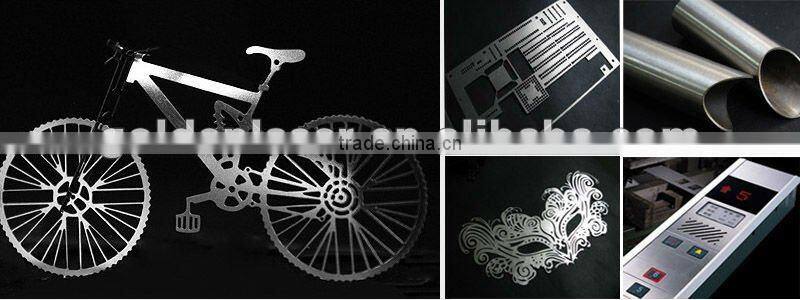

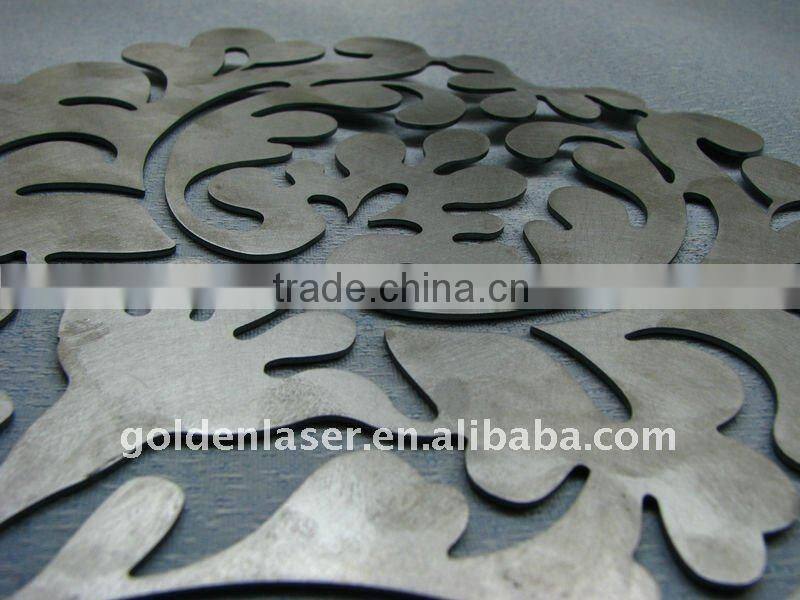

Laser Metal Cutting Samples:
