Apparel Pattern,Garment Sample,Clothing Laser Cutting Bed

Laser’s Application in Garment Industry:

(1)Made-to-measure garments: evening dresses, uniforms, custom suits, fashion women's wear, sports wears, ski suit, diving suit, etc.

(2)Cutting garments with stripes/checks

(3)Cutting printed clothing: like jersey, football clothes, basketball clothes, racing wear, baseball wear, etc

(4)Cutting zephyr and fast fashion garment/apparel/clothing

(5)Garment paper pattern/acrylic pattern making

Advantages of Laser Cutting:

(1)No burr/fraying with laser cutting

    Laser's cutting is done by high temperature process. It can make cut edge sealing automatically. Hence, no need to recut the panel after one-time cutting

(2)No distortion to the processed fabric

    In the process of cutting, laser does not touch the processed fabric, but light beam works on the fabric.

(3)High precision

    Diameter of the light beam can be focalized into 0.1mm (We adopt high-quality lens imported from world famous company II-VI-INFRARED)

(4)Easy to use

      Cutting is done through computer control (Only need to set relevant parameters into our cutting software, cutting will be done accordingly)

    This high precision and high quality cutting results into high added value for garment cut by laser. And the high precision one-time cutting can help garment manufacturers save fabric and labor cost greatly.

GOLDEN LASER Technical Advantages of Laser Cutting in Garment Industry:

(1)World-leading software for garment pattern design (size grading included), copying and nesting

(2)Continuous cutting with mark point position

(3)Auto-recognition system and matching stripe-checks cutting technology

(4)Super-long material continuous cutting: equipped with auto-feeder, laser is able to cut individual pattern/graphics longer than working table.

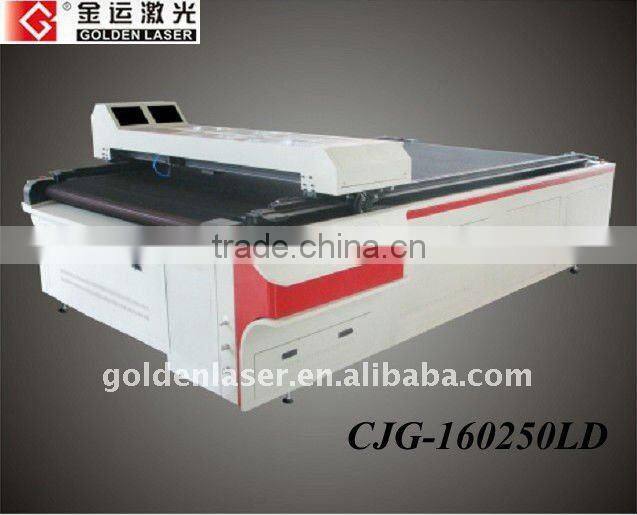

Recommended Model: CJG-160250LD Garment Laser Cutting Machine

Machine Features:

• It is a model especially for sample/pattern garment cutting or apparel order not in large quality but with various styles.
• Equipped with optical system (CCD camera and projector), it can cut printed clothing and garment with stripe, checks like suits.
• Equipped with auto-feeder for automatically continuous cutting to save time and labor cost.

Main Technical Data:

• Laser Type: CO2 DC glass laser tube
• Laser Power: 80W
• Working Area: 1600mmX2500mm
• Working Table: Conveyor working table
• Cutting Speed: Adjustable
• Repeating Location Accuracy: ±0.1mm
• Motion System: Stepping motor, Offline control system
• Control Panel: 5 inches LCD display
• Cooling System: Constant temperature water chiller
• Power Supply: AC220V±5% 50/60Hz
• Graphics Format Compatible: AI, BMP, PLT, DXF, DST, etc
• Standard Configuration: 550W top filtration exhaust, 1100W exhaust fans, Mini air compressor
• Optional Configuration: Auto-recognition system with CCD camera, CO2 RF metal laser tube, Auto-feeder, Projector

Optional Software to Go with the Machine:

(1)GOLDEN Laser CAD Pattern Designer

     -----for pattern design, modification and size grading

(2)GOLDEN Laser CAD Auto-Marker

     ----automatic nesting with the help of manual nesting to save fabrics at the utmost (direct converting from Lectra, Gerber and also from all applications compatible with DXF - AAMA standard format).

(3)Pattern Copying System

     -----directly copy disassembled garment panel or paper pattern for use.

(4)Large-area Recognition System

     -----to recognize and find the printed panels from the printed fabric

Laser Machine Can Cut /Hollow Fabrics into any Shapes as Designed

Samples of Laser Cutting Custom Garment

Samples of Laser Cutting Fast Fashion Garment and Zephyr

Samples of Laser Cutting Garment with Stripes/Checks

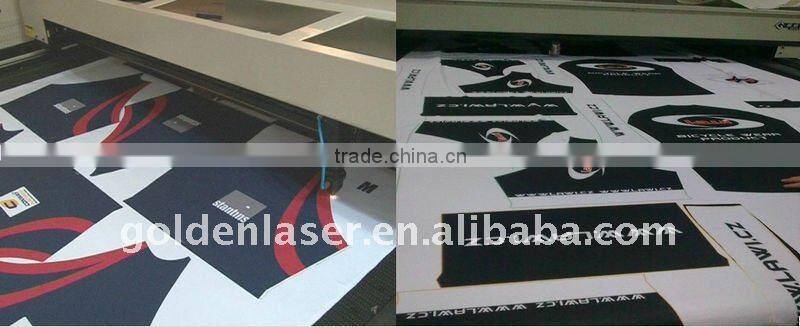

Samples of Laser Cutting Printed Clothing
