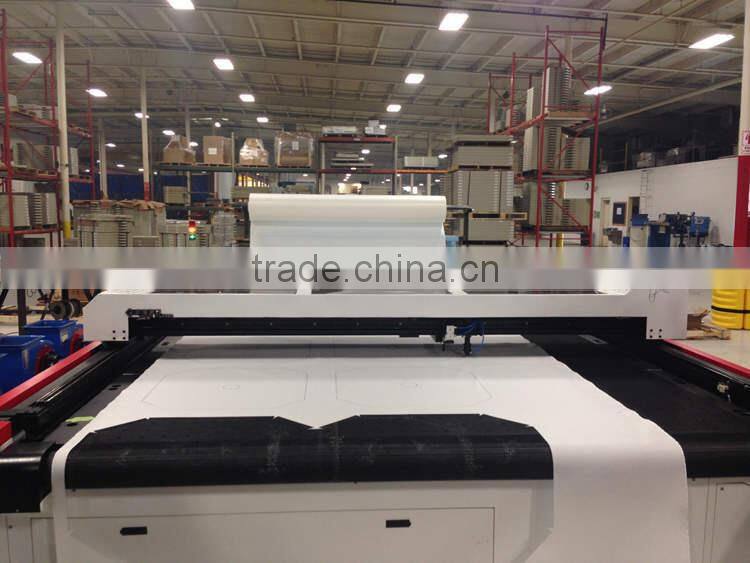

CO2 RF Laser Cutting Machine for Filter Cloth (CO2 RF Laser Warranty 24 Months)

Wooden Case Package

CO2 RF Laser Cutting Machine for Filter Cloth (CO2 RF laser warranty 24 months)

CJG-250300LD laser cutting machine (275 watts CO2 RF laser) + auto feeder for special fabrics (Double roll feeder SSG250) + software with mark pen + laser tube extended warranty to 24 months

Non-woven and special fabric is very suitable for laser cutting. In order to cater to the special requirements of filter industry for material cutting edge, GOLDEN LASER provides a variety of laser power for matching, and provides users with a complete laser cutting solution.

Laser cutting systems for the processing of filters, filter cloth, filter materials, filter mats

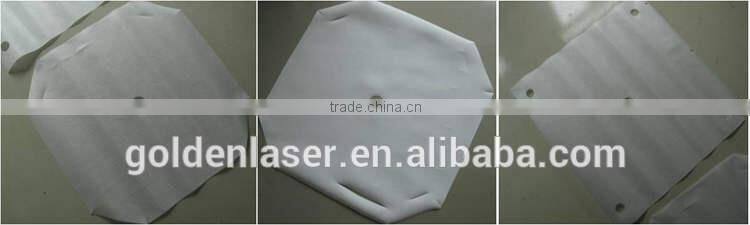

Filter cloth comfortably cut to any size

Ÿ   Automatic sealing of cutting edges. No fraying of the cloth

Ÿ   No tool wear – no loss of quality

Ÿ   High precision and accuracy of repeatability

Ÿ   Automated production process with conveyor and feeding systems

Ÿ   Automatic switching of marking system and laser head emitting beam. Perforation, marking and cutting all in one step.

Ÿ   Simple production via a PC design program

Ÿ   Compatible with a variety of graphics format, can be completed any shape of cutting.

Ÿ   Filter cloth cutting edges can be customized, cloth edges lifetime can be set as required.

Ÿ   Vacuum adsorption working table, prevention of cloth edges crimping or warping.

Ÿ   Complete exhaust and filtering of cutting emissions possible

Ÿ   Optional fully enclosed structure to ensure the cutting dust does not leak, suitable for operation in the intensive production plant.

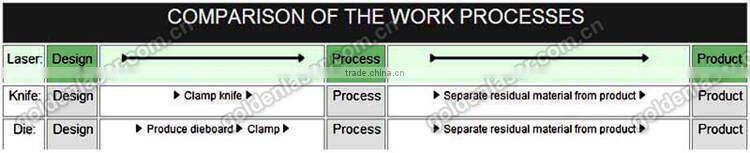

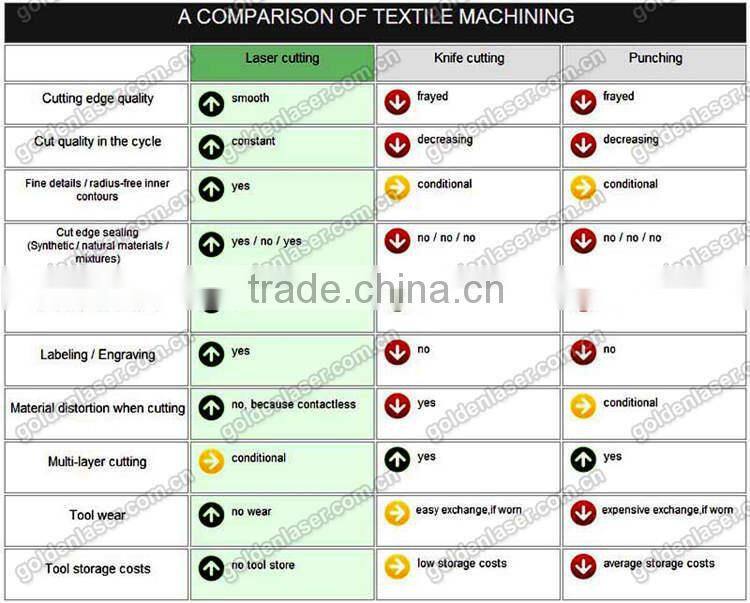

Laser cutting of textiles compared with punching and knife cutting

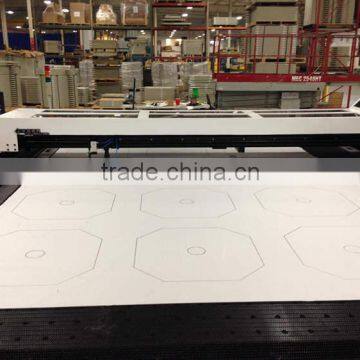

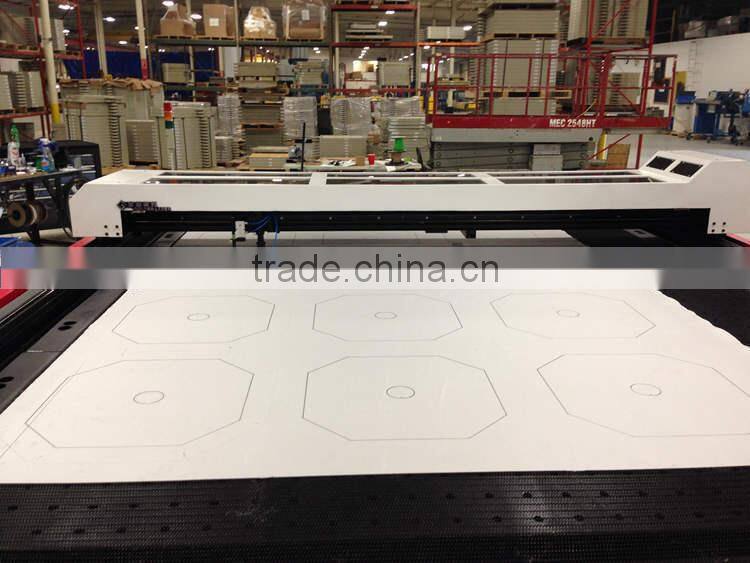

 Filter material dust-free cutting by laser

Precisely cut almost Any Kinds of material in Any Shape

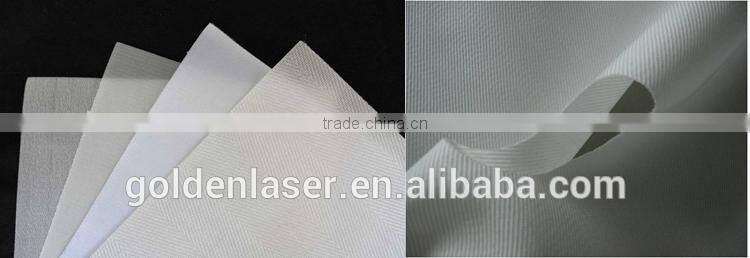

Typical filter media are: Polyethylene (PE), Polypropylene (PP), Polyester (PES), Polyamide (PA), Fibre glass, Non-woven, Fabric, Paper, Felt, PTFE, etc.

Main Configuration

• Working Table Size:

1600mm X 3000mm (63” X 118.1”)

2100mm X 3000mm (82.6” X 118.1”)

2500mm X 3000mm (98.4” X 118.1”)

2500mm X 4000mm (98.4” X 157.5”)

• Laser Type:

CO2 RF metal laser tube (150W / 275W / 400W)

CO2 DC glass laser tube (80W / 130W / 150W)

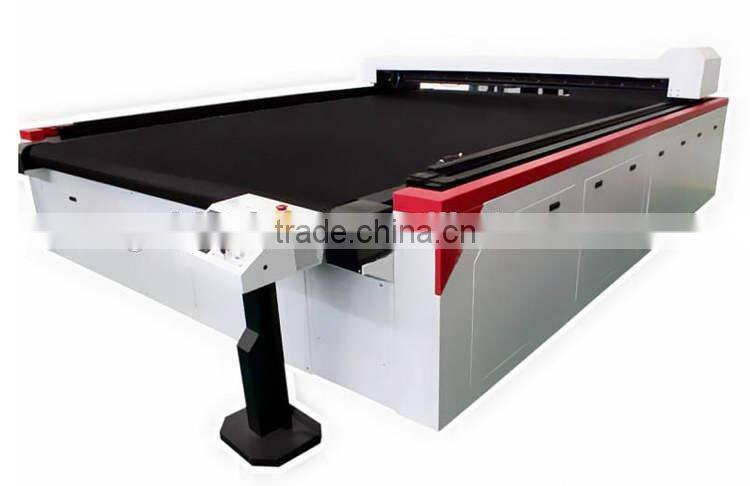

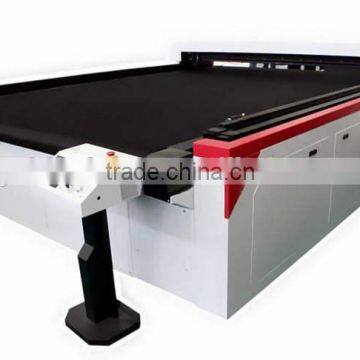

• Conveyor working table for continuous cutting

Conveyor working table is used for textile machining and is particularly suitable for thin and flexible materials.

With auto-feeding device (optional) realizes high-speed continuous cutting on fabrics.

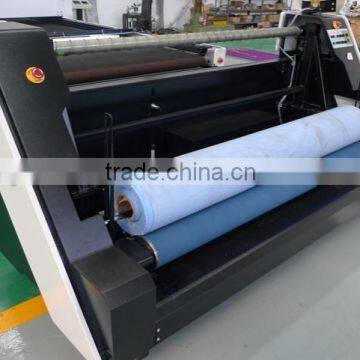

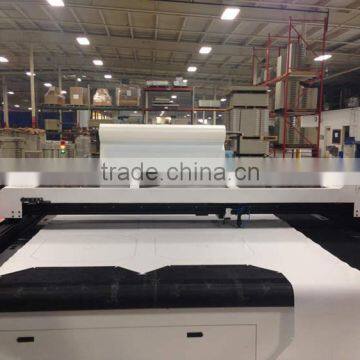

By using this automatic material feeder, filter material can be fed for laser cutting directly from the roll.

• Servo motor control system

• Software, supporting AI, BMP, DXF, DST, etc.

  User-friendly interface. Easy to use. All for the best user experience.

• 2 sets 3000W exhaust fan, 1 set 550W exhaust fan, Air blower

• Constant temperature water chiller

• 5’’ LCD display panel

• AC220V / 50-60Hz/ single phase

Optional Configuration

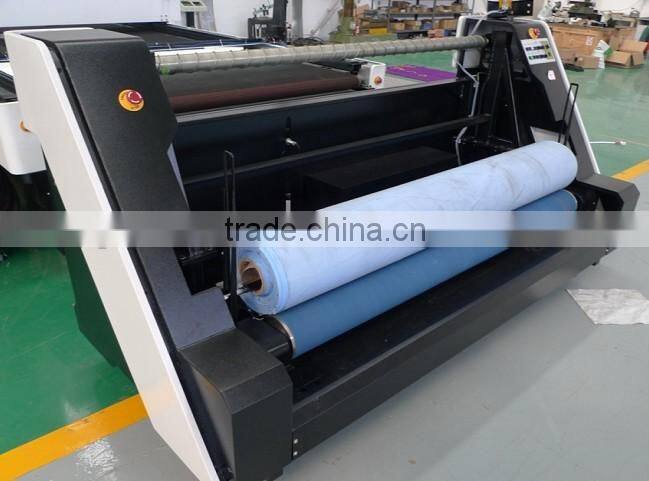

• Auto-feeding device

The auto-feeder realizes continuous cutting fabric.

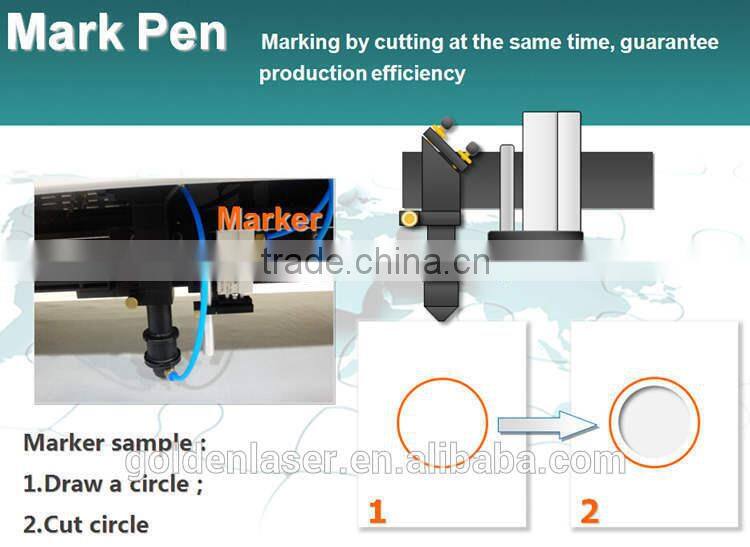

• Mark pen

The compressed air controlled marking system to apply ink markings to the material.

Marking by cutting at the same time, guarantee the production efficiency.

• Auto-recognition system

• Auto nesting software

• Multi-laser head

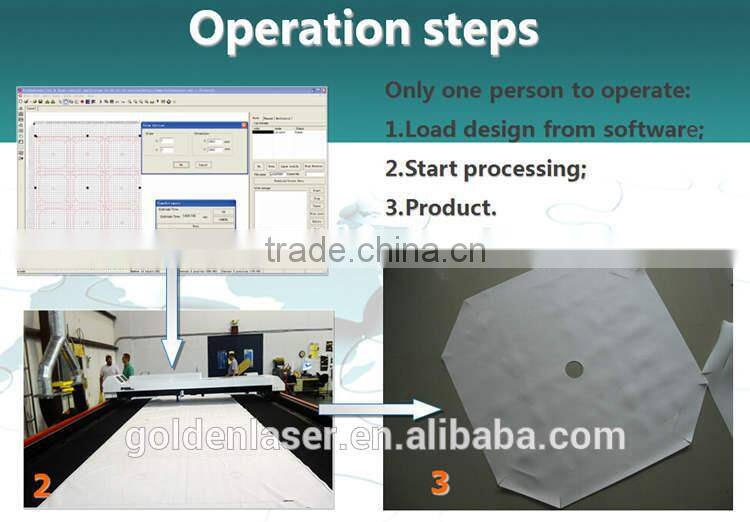

Working flow:

1. Using the .dxf or .ai or plt format file for machine software directly.
2. Set the cutting parameters. (speed, power and air pressure for good quality)
3. Press “start” button on machine. Then the machine will do mark and cutting automatically.

(usually one person enough. Actually one person can control two or more machines)
