Product Details
| Brand Name | Playvision | Model Number | HDV-9814S50 | |
| Place of Origin | Guangdong, China |
Product Description

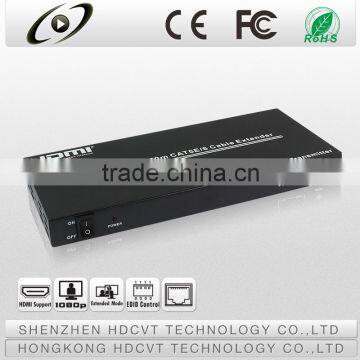

HDMI 1x4 Splitter Over CAT5e/6 Extender
Introduction
The Splitter is a product for splitting and extending your HDMI signal over long distances to a compatible display. It is designed to convert the HDMI signal and transmit by CAT5E/6 cable. It also supports Transferring Bidirectional Infrared control signal together with the HDMI signal, so you can control the Source in the Sink side which is 50 meters outside, also you can control the Sink in the Source side which is 50 meters outside using the Splitter.
Feature
1. Compliant with HDMI1.3, HDCP 1.2 and DVI 1.0.
2. Full HD support: 1080p@60Hz@24 bit/pixels.
3. HDMI local loop out for HDMI input.
4. Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio.
5. Operates for TMDS clock frequencies up to 165MHz.
6. Use single CAT-5E/6 cable to substitute HDMI cable to achieve long distances transmission.
7. UTP cable termination follows the standard of IEEE-568B.
8. Supports EDID control via EDID selector.
9. Transfer Bidirectional Infrared control signal together with the
HDMI signal.
Specification
1. Frequency Bandwidth 1.65Gbps
2. HDMI Splitter Input/Output Ports 2x HDMI Female port/4 x CAT6(1x4)
1x IR Transmitter/1x IR Receiver
3. Receiver Input/Output Ports 1 x HDMI Female port/1 x CAT6
1x IR Transmitter/1x IR Receiver
4. Power Supply HDMI Splitter DC 12V 2.5A
Receiver DC 5V 1A
5. ESD Protection Human Body Model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
6. Dimensions (mm) Transmitter: 118(W) X 250 (D) X 32(H)
Receiver: 49(W) X 81 (D) X 25 (H)
7. Weight Transmitter: 750g
Receiver: 150g
8. Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
9. Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
10. Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
11. Relative Humidity 20 ~ 90% RH (Non-condensing)
12. Power Consumption (Max) Transmitter 12W
Receiver 1.5W
Operation controls and Functions
1x4 Transmitter :
1. POWER SWITCH:Power ONOFF Switch.
2. POWER LED:This red LED illuminate when the device is connected with power supply.
3. IR IN: IR Control System over CAT5e/6 Cable IR Receiver. Source to SINK, plug Wideband IR Rx into this unit.
4. IR OUT: IR Control System over CAT5e/6 Cable IR Transmitter. SINK to Source, plug Wideband IR Tx into this unit.
5. EDID Selector: Select output signal format via EDID Selector.
See the EDID description .
6. UPDATE:System software update.
7. OUTPUT Area: RJ45 Jacks provide signal output.
8. HDMI LOOP OUT: Local HDMI loop output port.
9. HDMI INPUT:HDMI Input port. Connect source with HDMI cable.
10. DC IN: Plug the 12V2.5A DC power supply into the unit.
Receiver
1. CAT6:Connect the CAT input of the receiver with the CAT output of the transmitter with CAT5E/6 cable.
2. EQ Selector: Equalizer selector.See the EQ description.
3. LOCK LED: This red LED will illuminate when the Splitter and Receiver is connected with CAT5e/6 cable.
4. HDMI OUT:HDMI Output port. Connect to TV with HDMI cable.
5. DC IN: Plug the 5V1A DC power supply into the unit.
6. IR RX: IR Control System Over CAT5e/6 Cable IR Receiver. SINK to Source, plug Wideband IR Rx into this unit.
IR TX: IR Control System Over CAT5e/6 Cable IR Transmitter. Source to SINK, plug Wideband IR Tx into this unit.
TX EDID Description
Under normal circumstances, a source device (digital and analog) will require information about a connected device/display to assess what resolutions and features are available. The source can then cater its output to send only resolutions and features that are compatible with the attached device/display. This information is called EDID (Extended Display Information Data) and a source device can only accept and read one EDID from a connected device/display. Likewise, the source can only output one resolution for use by a connected device/display.
The EDID switch allows for EDID learning or to pre-set an EDID to encourage a “handshake” between the display and source.
Attention: Please confirm the extender is working normally, when you want to modify the new EDID to source, Toggle the EDID switcher to the corresponding number first, then plug the Transmitter power again. The extender will send the new EDID to source.
EDID TABLE:
Position | EDID Description |
0 | 1080p, 2CH AUDIO |
1 | 1080p, DOLBY/DTS 5.1 |
2 | 1080p, HD AUDIO |
3 | 1080i, 2CH AUDIO |
4 | 1080i, DOLBY/DTS 5.1 |
5 | 1080i, HD AUDIO |
6 | 3D,1080p, 2CH AUDIO |
7 | 3D, 1080p,DOLBY/DTS 5.1 |
8 | 3D,1080p, HD AUDIO |
9 | Copy the HDMI loopt out EDID |
A | 1080p, 2CH AUDIO |
B | 1080p, 2CH AUDIO |
C | 1080p, 2CH AUDIO |
D | 1080p, 2CH AUDIO |
E | 1080p, 2CH AUDIO |
F | 1080p, 2CH AUDIO |
RX Equalizer Description
Recommended EQ setting | ||
Position | Cable Length | |
| under 15m (49.5ft) | |
3-4 | 15-30m (49.5 ft - 99ft) | |
5-6 | 30-40m (99ft - 132ft) | |
7(MAX) | 40-50m(132ft – 164ft) | |
If you see flickering or blinking image on the display, adjust the EQ switch to improve the cable skew. MAX stands for the strongest HDMI signal level for the longest possible transmission length while MIN stands for the weakest HDMI signal level for short transmission length. Adjust the signal level from MIN to MAX until desired video quality is displayed.
Application Example
Packaging
1. HDMI Splitter ------------------------------------------------------- 1PC
2. Receiver ------------------------------------------------------------- 4PCS
3. Wideband IR Tx ---------------------------------------------------- 4PCS
4. Wideband IR Rx ---------------------------------------------------- 4PCS
5. 12V2.5A DC Power Supply adapter ---------------------------- 1PC
6. 5V1A DC Power Supply adapter -------------------------------- 4PCS
7. Operation Manual ------------------------------------------------- 1PC
