Factory price HDBaseT 8x8 HDMI Matrix over CAT5e/6/7, RS232,TCP/IP Control

Introduction

The HDBaseT 8x8 HDMI Matrix with simultaneous CAT5e/6/7 and HDMI outputs connects eight HDMI sources to sixteen displays. This matrix features eight HDMI outputs and each HDMI eight is mirrored to provide a CAT-Cable output which runs simultaneously. It supports the transmission of video (resolutions up to 1080p Full HD and 4Kx2K@30Hz) and supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio. Connect a HDBaseT Receiver to each of the CAT-Cable outputs to extend the HDMI signal up to 328ft/100m (100m Version) or 230ft/70m(70m version)for multi-room connectivity. It works with Blu-Ray players, Set-Top boxes, Home Theater PCs, and game consoles that connect to an HDMI display. Any source is accessible at all times by any display by selecting it via the supplied IR Remote Control, RS-232, TCP/IP or by using the selection buttons on the front panel. This device supports High Definition Audio, and 3D signal compatibility.

Features

l        HDMI input supports: HDMI2.0, HDCP 2.2 and DVI1.0 compliant

l        Supports HDMI 3D pass-through

l        Supports resolutions from VGA~WUXGA and HD resolutions from 480i~1080p~4Kx2K@30 dependent upon the EDID settings

l        Supports transmission distances up to 328ft/100m (100m Version) or 230ft/70m(70m version) through CAT5e/6/7 cable

l        Support POE function

l        Supports simultaneous HDMI and CAT outputs

l        Supports wideband IR(30-60Khz) matrix system, IR transport channel can be forward or backward. And supports GLOBAL IR input and output.

l        Supports RS-232, remote control, on-panel control and TCP/IP Control

l        Supports smart EDID management

l        Supports Digital Audio and stereo audio outputs

l        Support bi-directional IR& RS232 control

l        Supports HDBaseT LAN Serving function

l        Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission

Specifications

Video Bandwidth                           297MHz[10.2Gbps]

Support Video Resolution               480i,576i,480p,576p,720p,1080i,1080p24/30/50/60,4Kx2K@30;

Input Ports                                    8×HDMI, 10×IR Receiver, 1×RS-232,1×RJ-45(Control),8× RS232

Output Ports                                 8×CAT5e/6/7, 9×IR Blaster, 8×HDMI,8×Audio,8×Digital audio

HDMI connector                            Type A 19 pin female

RJ-45 connector                            WE/SS 8P8C

3.5mm connector                          (TX and RX) IR Receiver/IR Blaster

ESD Protection                             Human-body Model:± 8kV (Air-gap discharge)

                                                                                 ± 4kV (Contact discharge)

Power Supply                               AC 100~240V 50/60Hz

Dimensions                                  440 mm (W)×362 mm (D)×88 mm (H)

Weight                                        1820 g

Chassis Material                           Metal

Silkscreen Color                            Black

Operating Temperature                  0 ºC~40 ºC/32 ºF~104 ºF

Storage Temperature                     −20 ºC~60 ºC/−4 ºF~140 ºF

Relative Humidity                          20~90 % RH (non-condensing)

Power Consumption                      100 W(max)/0.5w(Standby)

Operation controls and Functions
Front Panel

1.        LCM:    Displays the information of each input and output setting and EDID               management .

2.        IR: IR Receiver window (accepts the remote control signal of this device only).

POWER: Press this button to power the device on/off. The LED will illuminate green when the power is on, red when it is in 'Standby' mode.

LOCK: Press this button to lock all the buttons on the panel, press again to unlock.

3.        OUTPUT/INPUT: Press the OUTPUT and INPUT button to select the output corresponding input.

       For example: Press OUPUT ALL>INPUT 1, The OUTPUT A/B/C/D/E/F/G/H will be set to INPUT 1.

       Press PTP button, The OUTPUT A/B/C/D/E/F/G/H will corresponding INPUT 1/2/3/4/5/6/7/8.

4.        EDID: Smart EDID management, the LCM will display the EDID operation.

              Press the MENU button will enter the EDID management window,  press UP or DOWN button to select the needed EDID setting, press  ENTER button to select the download input source. It can easy  download any EDID mode to any input source.

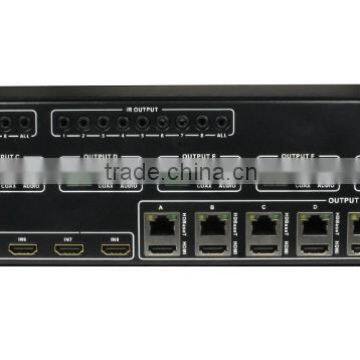

Rear Panel

1.        GND: Connect the Housing to ground.

2.        IR Matrix

IR EXT: if the panel sensor is obstructed or the unit is installed in a closed area out of infrared line of sight, the IR RX receiver included can be inserted into the IR EXT port at the rear to extend the IR sensor range and enable local control of the matrix.

IR IN/OUT: Super IR control system interface. For further details, please refer to the Super IR system control introduction.

3.        PC CONTROL

TCP/IP: This port is the link for TCP/IP control, connect to an active Ethernet link with an RJ45 terminated cable.

RS232: Connect to a PC or control system with D-Sub 9-pin cable for the transmission of RS-232 commands.

4.        AUDIO OUTPUT: The coaxial and analog audio output connects to the audio amplifier. The TX and RX for RS232 communication with the      HDBT Receiver TX and RX.

5.        HDMI INPUT: Connect to the HDMI input source devices such as a DVD player or a Set-top Box with HDMI cable.

6.        VIDEO OUTPUT: The HDMI OUTPUT connect to HDMI equipped TVs or monitors and the HDBT OUTPUT connect to the HDBT Receiver.

7.        Ethernet:     This slot provides Internet signal from receiver or to receiver.

8.        AC POWER INPUT: Connect to AC power with AC power cable.

Remote Control

1.        Power on /Standby:Press this button for power on the matrix or set it to standby mode.

2.        Input port selection area:Press these buttons to select input 1-8. Press forward/backward button will cycle from input 1-8.

3.        Output port selection area:Press these buttons to select output A-H, including ALL.

How to operate the Matrix Remote?

1. Power on and standby

Q.  How to power on and standby?

A.  Press Power on /Standbybutton and wait a while.

2. How to select Output and Input Port?

Q.  OUTPUT-X select INPUT-Y:

A.  Press OUTPUT-X (X means 1 to 8 of outputs, including ALL)

Press INPUT-Y (Y means 1 to 8 of inputs)

Operate and Connect

1.  Connect up to 8 sources such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc. to the HDMI inputs on the unit. Do not hotplug! Insert and extract cables carefully with the power switch off. Connecting and disconnecting while the unit is powered can result in damage to circuitry.

2.  Connect the output HDBT ports and/or HDMI output ports, starting with output 1, to the HDBT Receiver display receivers (sold separately) (using well terminated or pre-terminated Cat5e/6/7 cables no longer than 328 ft)

3.  If utilizing UTP, connect the output HDMI ports of the HDBT Receiver display receivers (sold separately) to high-definition displays such as an HDTV or HD projector that use HDMI inputs. Note that high-speed HDMI cables are recommended for the distances that are required for each connection.

4.  Plug in IR transmitters to the back of the Matrix Selector Switcher unit (IR TX), the transmitters are labeled IR TX, place in front of the IR receiver of the source, ensure that each emitter is placed in front of the IR receiver eye. Double-sided adhesive tape provided.

5.  Plug in IR receivers to the port of the HDBT Receiver display receivers (sold separately) ,the receivers are labeled IR RX, use provided double-sided adhesive tape to stick emitters at each display at a desired place that will receive a remote signal.

6.  For power, plug in the source first, followed by the Matrix (power supply included), followed by the display receivers, followed by each output connected.

7.  Power on each device in the same sequence.

Package

l         HDBaseT 8x8 HDMI Matrix----------------------------------------------1PCS

l         HDBaseT Receiver---------------------------------------------------------8PCS

l         AC power cable-------------------------------------------------------------1PCS

l         Operation Manual----------------------------------------------------------1PCS

l         Wideband IR Tx cable-----------------------------------------------------9PCS

l         Wideband IR Rx cable-----------------------------------------------------10PCS

l         HDMI Matrix IR Remote--------------------------------------------------1PCS

l         Mounting ears(Matrix)----------------------------------------------------2PCS

l         Mounting ears(Receiver)-------------------------------------------------16PCS

l         RS232 cable------------------------------------------------------------------1PCS
