2016 CE Certificate Star Product of -86 Ultra Low Temperature Freezer

NEW !!  2015 Best Seller 290 liter LCD dispaly

-86 medical Upright Deep Freezer

 Product description:

Suitable for hospital, blood-bank, center for Disease Prevention, scientific research institution, Animal Husbandry industry, electronic, chemical industry, etc.

Used for the refrigeration of red and white cell, skin, skeleton, germ, virus, seminal fluid, biological products and for low temperature testing of electron devices and special materials.

 Characteristics of the product function:

1. Temperature Control System

Controlled by micro-computer, LCD display of inner temperature;

The inner temperature can be adjusted at the range of -40℃~-86℃, the temperature regulation accuracy is 0.1 ℃;

2. Security Control System

Multi malfunction alarms: high temperature alarm, low temperature alarm, sensor malfunction alarm, condenser dirty alarm, low battery alarm, power off alarm, over pressure alarm, over ambient temperature alarm, open the door alarm and so on for safe use.

Besides,  you can check history alarming information and  derived data. All the history datas can be saved over 15 years.

Three alarming methods: buzzer alarming and independent icon alarming, and remote alarming is optional;

Protection function: compressor power-on delay protection, time between power offs; overpressure protection, password protection and normal operation protection under failure mode;

Password protection can prevent parameters from being changed randomly.

The display screen can show the operation state and communication state;

The power switch has overcurrent protection and power on indicator light, safeguard user's safety.

3. Refrigeration System

Optimized technology of compressor cascade cooling, special evaporation system and condensation system;

International famous brand compressor and EBM fan electromotor and oil seperator, stable product performance, strong refrigerating efficiency;

Enhanced sealing design: stainless steel inner door and double door seal;

Heating-free pressure-balanced valve (patent), easy to open the door, keep the cold air and avoid the freezer on fire.

4. Humanized Design

Unique handle design: the door can be opened by both hands, individual press lock on the handle and 2 padlocks;

Wide voltage design can help it work stably under 206-242V;

Can show the temperature curve and history data, and have derive data function;

Draw-out type dust removal screen with locks, simple and convenient for maintenance;

Two thermometer holes design for temperature examination.

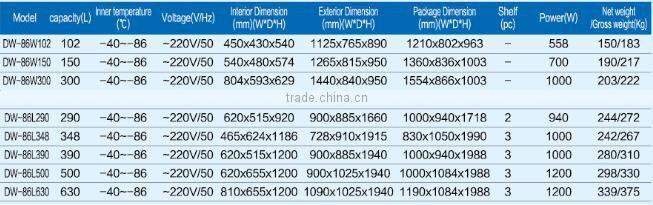

Technical Parameters:

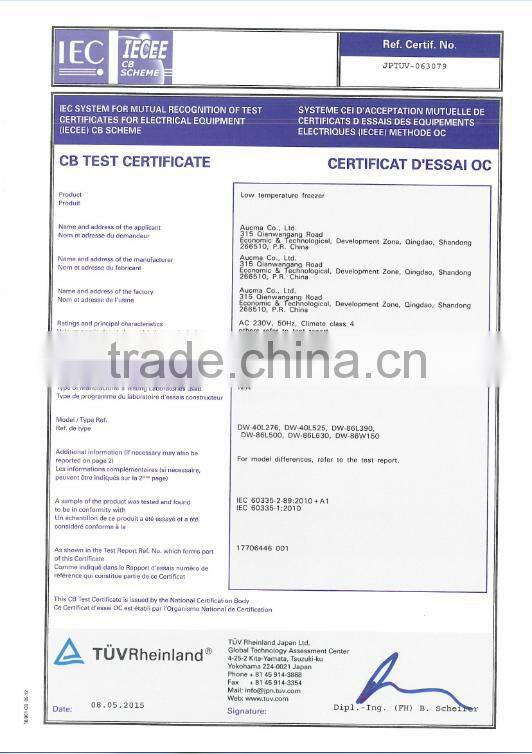

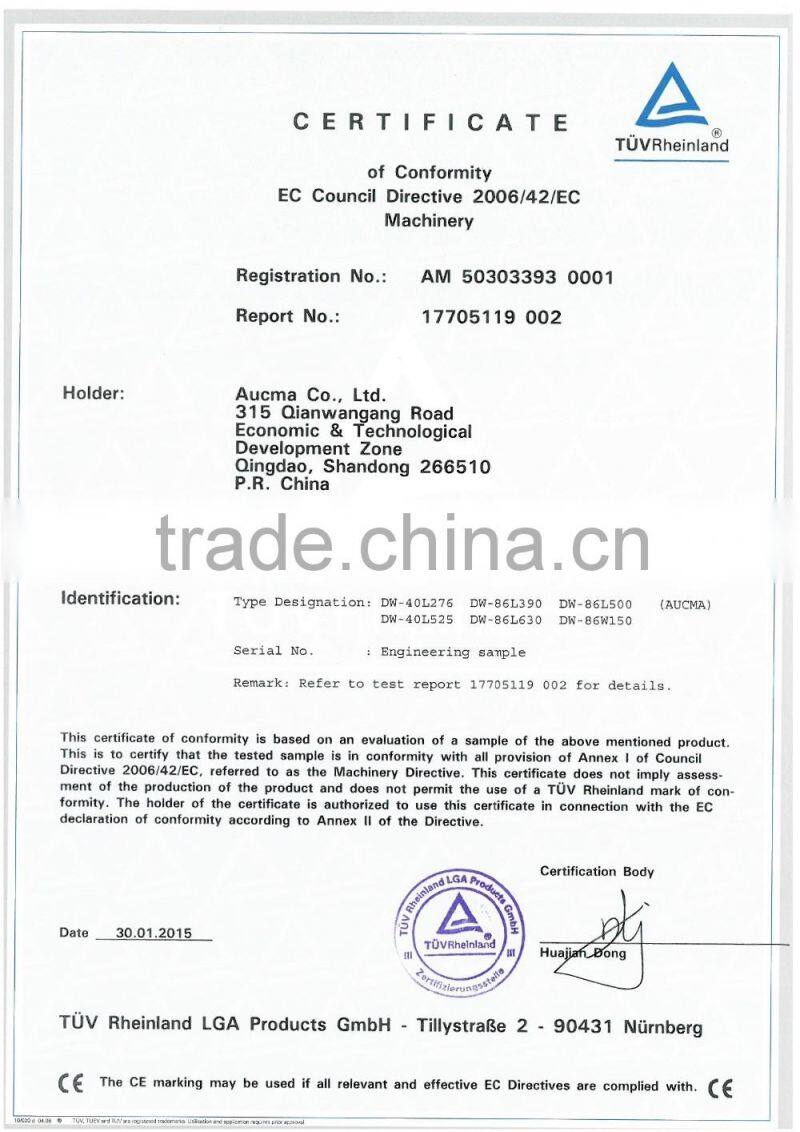

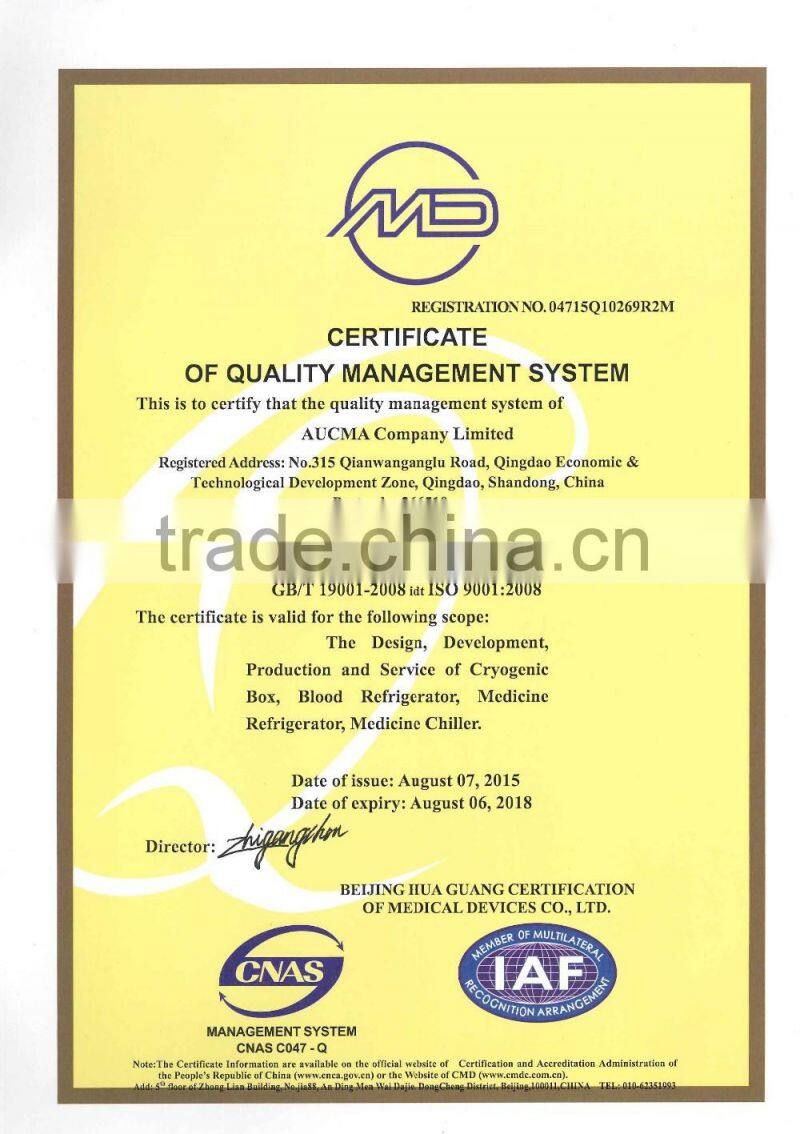

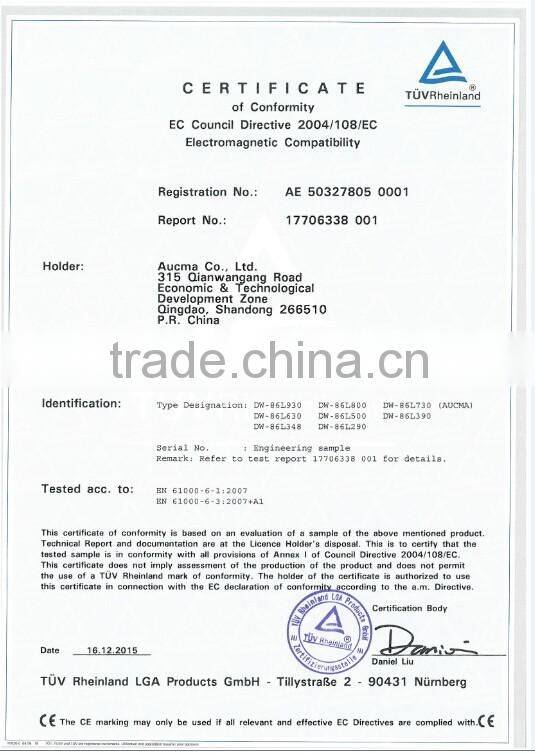

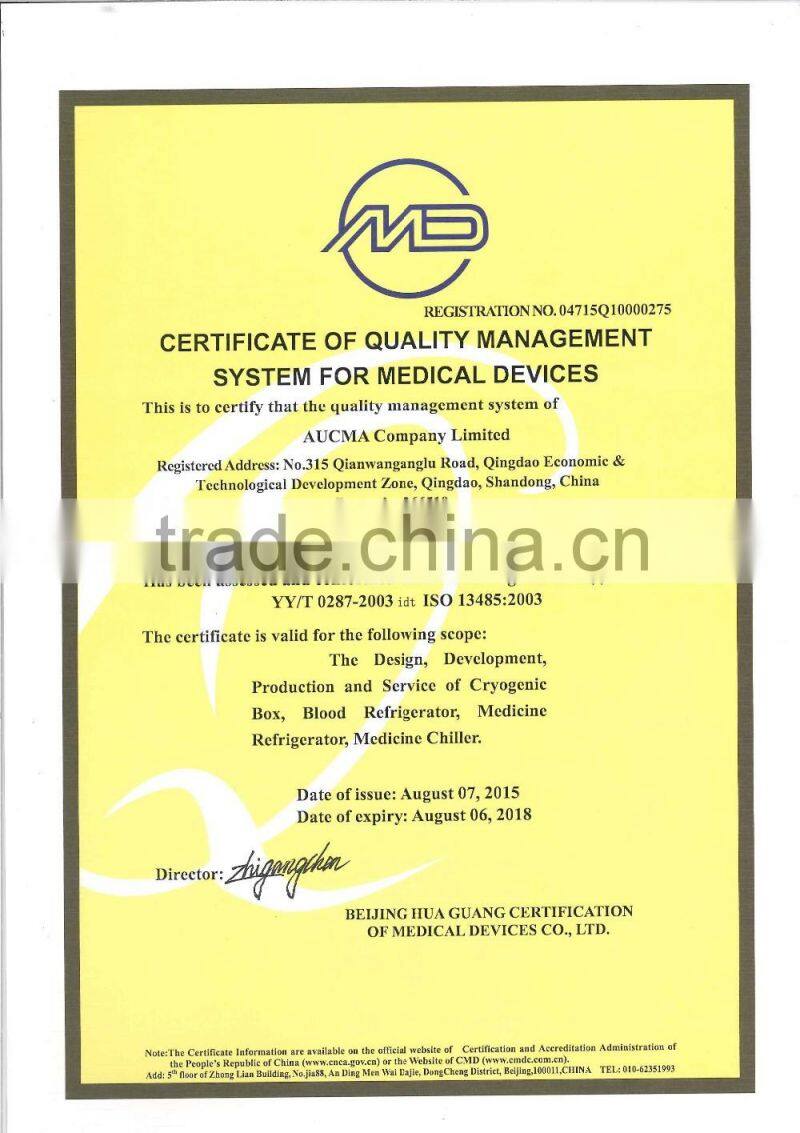

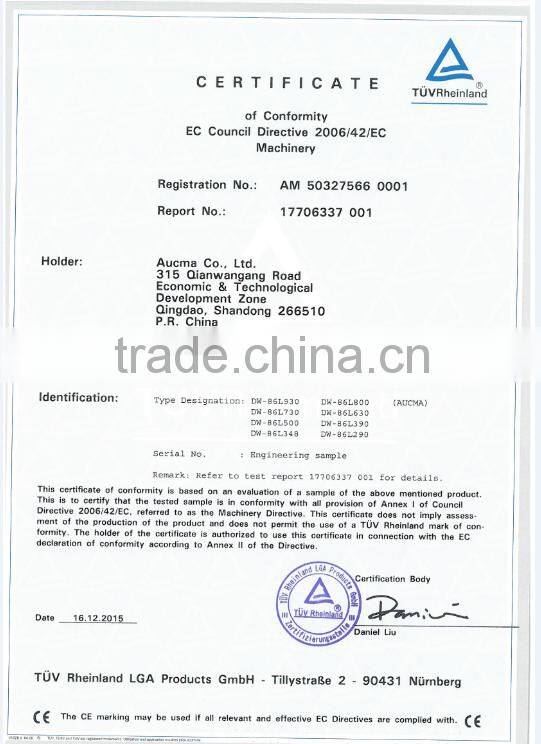

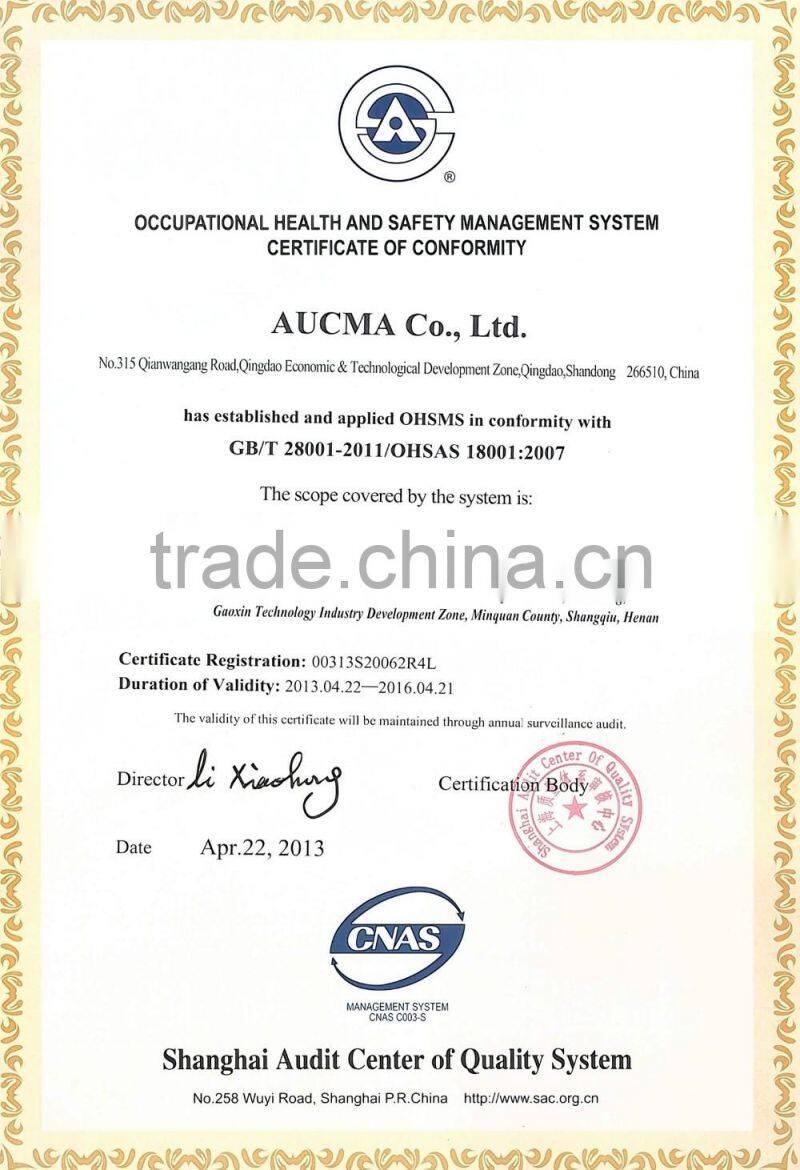

Our Certificates:

The picture of our factory:

     Welcome to make an inquiry!

   You are warmly welcome to visit our factory !
