Home > Products > voltage stabilizer > SGAVR2 SINGLE PHASE ac Automatic Voltage regulator Auto Voltage Stabilizer

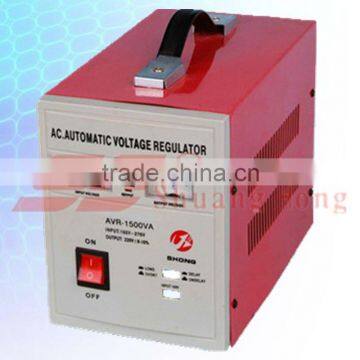

SGAVR2 SINGLE PHASE ac Automatic Voltage regulator Auto Voltage Stabilizer
- 30000 Piece / Pieces per Month
- NINGBO /SHANGHAI
- T/T Credit Card
You May Like
-
500VA1000VA10KVA high precision Automatic Voltage Stabilizer SVC
-
SVC SINGLE PHASE Automatic Voltage ac Stabilizer automatic voltage regulator stabilizer voltage stabilizer
-
TM Series AC Stabilizer AC automatic voltage regulator
-
TNS Three Phase Automatic Voltage Stabilizer ac voltage stabilizer
-
20KVA30KVA40KVA50KVA DBW SBW Compensated Voltage Stabilizer ac
-
40VA63VA100VA160VA250VA400VA630VA1000VA1600VA2500VA JBK3 Machine Tool Control Transformer miniature transformer current transfor
Product Details
| Place of Origin | Jiangxi, China | Brand Name | SG | |
| Model Number | SG-AVR2 | Usage | SVC | |
| Phase | Single Phase | Current Type | Other, AC, AC |
Product Description
Specifications
INPUT: 160-250v/70-130vOutput: 220+-3%110v+-3%
Phase: Single Phase
SGAVR2 Auto Voltage Stabilizer consists of contact voltage regulator,sampling control circuit and servo motor.When input voltage or load changes,sampling control circuit will sample and amplify the voltage,and the servo motor will rotate in the desired direction,which turns the arm,adjusting voltage until the output voltage is regulated into the rated output voltage.
The products is of small size,light weight,less output waveform distortion and reliable performance.To guarantee its quality,foreign advanced technology and main parts are introduced and imported.It is widely used in electrical appliances which need constant voltage power supply,and in fields of industry producing,scientific research and medical hygiene.
The product itself consumes little and can be continuously used for a long time.
Input Voltage | 160V~250V 70V~130V |
Output Voltage | 220±3% with 110V±3% |
Phase | Single Phase |
Frequency | 50/60 Hz |
Response time | within 1 sec.against 10% input voltage deviation |
Efficiency | Better than 90% |
Ambient temperature | 5 oC~+40 0C |
Relative Humidity | Less than 95% |
Waveform distortion | Non-lack fidelity in waveform |
.....
