Machine Weld Beach Chair Welder Machinery

Specifications

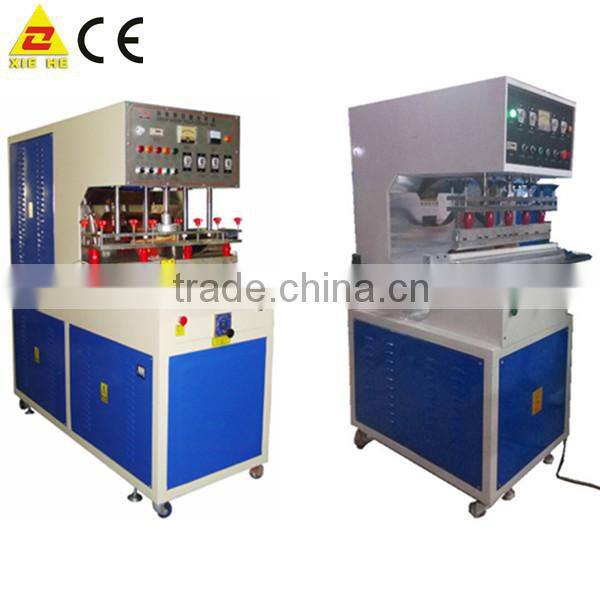

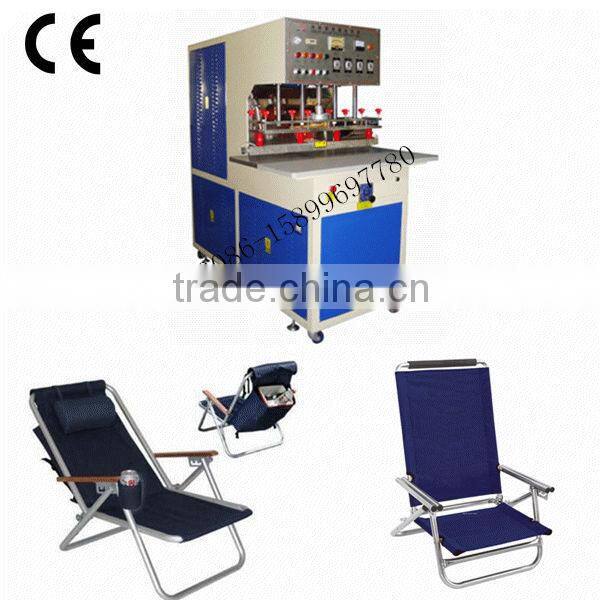

Model: machine weld beach chair Welder machinery

Machine General Features:

1. Length, width and radian of welding area can be adjusted by change welding die.
2. European-model square high frequency vibration box, more reliable and stable in output
3. Single line or two lines continue welding, welding length can be ordered as special need.
4. Can be used as a freestanding machine for welding production or as a supplement to a larger system.
5. CE rated machine; Taiwan Airtac Pneumatic parts, Japan Omron and Toshiba brand components.
6. Customer's site installation, training & maintenance available
7. Double Operator Control Press Pedals – on both sides of machine for ease of  access and material positioning during welding of complex shapes of fabric
8. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.
9.Customized work table dimensions, electrode holder dimensions, tooling
10.Laser Guide Projectors – projecting laser lines (easy for operator's eyes) for quick material guidance on the work table

Mainly application:

Applied for tarpaulin, sunshading canvas, truck covers, painting canvas, film curtain and relatives for automatic stepping welding and connecting

For Producing Products:

1. Large format technical textiles,   2. Large Covers for trucks and boats   3. Membrane Curtains for trucks

4. Large Swimming pool covers     5. Temporary shelter             6. Awnings or tents      7. Inflatables production

All machines are completely safe for the operator and fully comply with CE regulations.

Optional Features on Request:

 1.Servo-motor;  Touch screen programmable HMI / PLC can be customized
 2. HF Filter unit available
 3. Auto-high frequency tuning technology
 4. High frequency generator on separate cabinet
 5. Large space behind the welding tool - up to1500mm
 6. Precision straight bar welding up to 1500x50mm for 25 KW Welder

Parameters : machine weld beach chair

High frequency power: 10 KW

Power input: 18 KVA

Voltage: AC 380 V 3 P   (440 V can be customized)

Frequency: 27.12 MHz

Upper electrode size: 800*50 mm

Lower electrode size: 1000*300 mm

Dimension: 1000*1000*1750 mm         600 KG

machine weld beach chair

Application:

Materials for welding

High frequency welding is useful for sealing and welding plastics such as:

1. polyvinyl chloride (PVC),

2. thermoplastic polyurethanes (TPU),

3. ethylene-vinyl acetate (EVA),

4. nylons (polyamide PA),

5. some ABS resins,

6. special grades of polyolefins (PP, PE, PET).

7. machine weld beach chair
