Home > Products > Square Tin Can Production Lines > Semi-automatic Bottom/Lid/Cap Punch Press for 18 Liters 10-25L Square Tin Can Box Making Machine

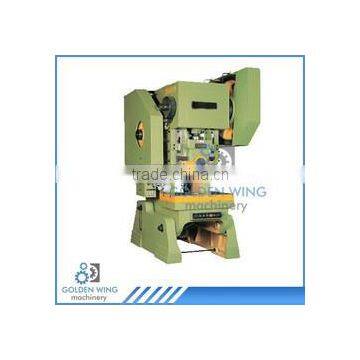

Semi-automatic Bottom/Lid/Cap Punch Press for 18 Liters 10-25L Square Tin Can Box Making Machine
- 25 Set / Sets per Month
- Ningbo/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Semi-automatic Bottom/Lid/Cap Punch Press for 18 Liters 10-25L Rectangular Tin Can Box Making Machine
-
Pneumatic Sealing Machine Seamer for 18L Square Tin Can Making Line
-
Semi-Automatic Sealing Machine Seamer for 15L Square Tin Can Box Making Machine Production Line
-
Semi-automatic Bottom/Lid/Capping Punch Press Tin Can Box Making Machine
-
Semi-automatic Sealing Machine for Olive Oil/Paint Round Tin can Making Line
-
Square/Rectangular Metal Cans Making/Production Line
Product Details
| Condition | New | Application | Beverage, Chemical, Food, Other, Beverage, Chemical, Food, Machinery & Hardware | |
| Packaging Type | Cans | Packaging Material | Metal | |
| Automatic Grade | Semi-Automatic | Driven Type | Electric | |
| Voltage | 380V | Power | 4KW | |
| Place of Origin | Zhejiang, China | Brand Name | Golden Wing | |
| Model Number | J23-40 | Dimension(L*W*H) | 1600*1180*2310mm | |
| Weight | 3180KG | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
| Name | J23-40 Semi-automatic Bottom/Lid/Capping Punch Press of 18 Liters 10-25L Square Rectangular Tin Can Box Making Machine |
| Usage | It's used to punching top and bottom |
| Nominal force | 400kn |
| Stroke under nominal force6 | 6mm |
| Slide block stroke55 | 120mm |
| Number of stroke80 | 55mm |
| Max die set height | 220 |
| Die set height adjustment | 80mm |
| Distance from slide block center to the frame | 260mm |
| Worktable dimension | Φ480*710mm |
| Dimension of worktable hole | Φ220*25*Φ180mm |
| Thickness of bolster | 80mm |
| Hole dimensions in bed | Φ200*150*300mm |
| Dimensions of side block bottom surface | 170*320mm |
| Size of the handle hole | Φ50*70mm |
| Max. tilting angle of body | 25° |
| Distance between columns of body | 300mm |
| Motor power | 4kw |
| Outline dimension | 1600*1180mm |
| Net weight | 3180kg |
Zhoushan Golden Wing Machinery Co.,Ltd., is a professional manufacturer & exporter specialized in various tin cans making machinery.
As a rich experienced manufacturer & exporter in this field, we always make the most suitable solutions for customers in tin cans / ends making.
‘High quality, competitive price & superior after-sale service’ is our principle.
We are always ready to develop long-term and good relationship with overseas customers.
We provide the following series of products:
Automatic Lid / Ring / Bottom Production Lines
Automatic EOE (easy open ends) Production Lines
Automatic Aerosol Cone / Dome Production Lines
Automatic Twist-off Lug Cap Production Lines
CNC Feeding System
Automatic Palletizer
Automatic Depalletizer
Wrapping Machine
Conveyor Device
Automatic Aerosol Tin Can Production Lines
Automatic Food Tin Can Production Lines
Automatic Beverage Tin Can Production Lines
Automatic Chemical Tin Can Production Lines
Semi-automatic 1-5L Round / Square / Rectangular Tin Can Production Lines
Semi-automatic 10-20L Paint Bucket Production Lines
Semi-automatic 15-18L Square Tin Can Production Lines
Semi-automatic 40-60L Bucket Production Lines
Press Dies
And so on......
‘To be the best supplier’ is the attitude of our company.
We will keep on providing modern and advanced machines to bring greater value-added benefit for our customers.
If you want to know more about us, please don’t hesitate to contact us at any time.
Welcome to our company!
